Middle Atlantic Cfr Series Rack 13 23 13Sp Cabinet Frame Rk 23D

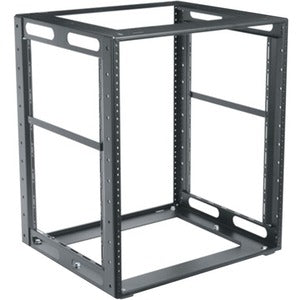

The Middle Atlantic CFR Series CFR-13-23 CFR-13-23 is a compact, high-value rack frame designed to maximize usable rack space in tight installations. With a 13U height and a deep 23-inch footprint, it accommodates a wide range of equipment—from media players and audio processors to network gear and small servers—without sacrificing airflow or cable management. The welded steel frame delivers rugged durability, enabling you to pre-load equipment off-site and transport the assembled rack with confidence. Ideal for home theaters, hospitality AV, educational multimedia rooms, and professional environments, the CFR-13-23 provides a reliable, adaptable foundation for organized, scalable AV systems in spaces where every inch counts.

• Space-efficient design with robust depth: A 13U rack height paired with a 23" depth optimizes usable space, making it ideal for tight entertainment centers, cabinetry, and compact AV rooms while still accommodating deeper equipment.
• Durable, welded steel construction: A rigid frame with a durable finish resists wear from frequent loading, transport, and daily use in busy installation environments, ensuring long-term reliability.
• Pre-loading capability for off-site assembly: Pre-load and test gear on the frame off-site, then move or install the rack as a single, stable unit to reduce on-site handling and labor.
• Front and rear access with standard rails: Easy loading, unloading, and upgrades are supported by front and rear access points and standard 19" mounting rails for broad gear compatibility.
• Wide compatibility for diverse AV gear: The CFR-13-23 supports a broad range of rack-mount equipment—from consoles and patch panels to amplifiers and network gear—facilitating cohesive, professional AV installations across multiple environments.

Technical Details of CFR-13-23

• U Height and Depth: 13U height with a 23" depth to accommodate deeper equipment and robust cable management needs.
• Frame Construction: Welded steel frame for rigidity and durability, designed to withstand the rigors of installation, transport, and daily use.
• Finish: Durable, protective coating that resists wear in high-traffic AV environments while maintaining a professional appearance.
• Mounting Rails: Standard 19" equipment rails with front and rear access, compatible with a wide range of rack-mount gear.
• Dimensions and Footprint: Optimized for spaces where depth is a constraint, yet capable of supporting full-featured AV and networking components.
• Compatibility and Use Cases: Suited for home theaters, corporate AV rooms, rental fleets, education technology deployments, and broadcast quick-ship setups.

How to install CFR-13-23

Installing the CFR-13-23 is straightforward and designed to minimize on-site labor while maximizing future accessibility. Follow these steps to ensure a safe, efficient, and tidy deployment:

• Prepare the installation space: Choose a level, stable surface with adequate airflow and clearance for cable management at the rear. Ensure the area can accommodate the rack’s footprint and does not obstruct ventilation openings elsewhere in the room.
• Position and secure the frame: Move the CFR-13-23 into its intended location. If the frame will be integrated into a cabinet or mounted to a wall or supporting structure, follow the applicable mounting guidelines and secure the frame per your installation plan.
• Install the 19" rails: Attach the standard 19" mounting rails to the frame, ensuring proper alignment for both front and rear access. Use the provided hardware and confirm rails are square to guarantee accurate rack mounting for equipment.
• Pre-load and organize equipment: Before final placement, install and test compatible gear on the rails. Verify that each device fits within the 13U space and that cabling can be routed cleanly to minimize strain and maximize airflow.
• Load, connect, and manage cables: Mount devices from bottom to top to maintain stability and balance. Route power, data, and network cables through rear channels or cable managers, leaving sufficient slack for maintenance and future upgrades. Close gaps to optimize airflow and reduce heat buildup.

Frequently asked questions

Q: What is the CFR-13-23 used for?
A: The CFR-13-23 is a compact 13U, 23" deep rack frame designed to organize and support a wide range of standard 19" rack-mount AV and networking gear in spaces where depth and footprint are constrained. It combines rugged construction with accessible loading and upgrading capabilities, making it suitable for home theaters, hospitality AV setups, education technology rooms, and corporate installations.

Q: What equipment fits in the CFR-13-23?
A: The rack is built around standard 19" equipment rails, so it accommodates most common rack-mount gear such as media players, processors, amplifiers, patch panels, small servers, and network gear—perfect for a cohesive, organized rack solution.

Q: Can I pre-load equipment off-site?
A: Yes. The CFR-13-23 is designed to enable pre-loading and testing off-site, allowing you to verify fit and function before transport. This reduces on-site handling and speeds up installation.

Q: Does it offer front and rear access?
A: Yes. Front and rear access points, along with standard 19" rails, facilitate easy loading, service, and future upgrades without extensive disassembly.

Q: What environments is the CFR-13-23 ideal for?
A: The CFR-13-23 is well-suited for home theaters, hospitality AV rooms, educational multimedia spaces, rental fleets, and corporate AV installations where reliable performance and accessible upgrades matter.

Q: Are there any special installation considerations?
A: Ensure proper ventilation around the rack to prevent heat buildup, maintain clean cable management to support maintenance access, and verify that mounting hardware is appropriate for the selected installation (cabinet, wall, or standalone setup). The rails are standard 19" and supported by a welded steel frame designed to endure the rigors of frequent loading and transport.
