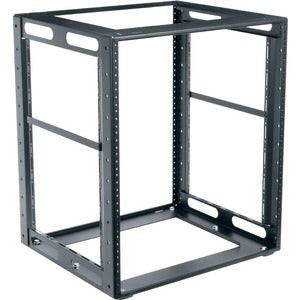

Middle Atlantic Cfr Series Rack 8 20 8Sp Cabinet Frame Rk 20D

Middle AtlanticSKU: 5537904

Price:
Sale price$518.40

Description

Engineered for tight spaces and demanding environments, the Middle Atlantic CFR Series CFR-8-20 rack cabinet delivers robust 19-inch equipment support in an 8U, 20-inch-deep frame. Designed for professional AV setups where every inch matters, this low-profile cabinet maximizes usable rack space in studios, control rooms, broadcast facilities, and premium residential environments. Its rugged welded steel construction provides enduring rigidity, while thoughtful design elements—such as pre-loading capability, streamlined cable management, and easy access to front and rear panels—make installation, maintenance, and reconfiguration fast and reliable from first power-up onward.

  • Compact 8U (8 rack spaces) footprint with a 20-inch depth, enabling you to fit more gear in tight installations without sacrificing access to ports, cables, or cooling paths.
  • Sturdy welded steel frame ensures long-term rigidity and precise alignment of mounting rails, reducing downtime and simplifying maintenance when you reconfigure gear.
  • Pre-loading capability lets you stage, assemble, and verify equipment off-site or in a staging area before final on-site installation, saving time and reducing on-site disruption.
  • Transport-friendly design provides rugged handling for moves between rooms or locations, helping protect sensitive gear during transit and installation.
  • Designed for efficient cable management and easy access to front and rear panels, supporting clean wiring, quick service, and reliable airflow in compact rack installations.

Technical Details of Middle Atlantic CFR Series CFR-8-20 Rack Cabinet

  • Model: CFR-8-20 (CFR Series)
  • Rack units: 8U (8 rack spaces) for standard 19-inch equipment
  • Depth: 20 inches
  • Frame construction: Welded steel for enhanced rigidity and durability
  • Compatibility: Supports standard 19-inch equipment racks and gear
  • Access: Front and rear panels accessible to simplify installation and maintenance
  • Capacity for staging: Pre-loading capability to pre-assemble gear before final installation
  • Mobility: Transport-friendly design to protect equipment during moves and reconfigurations
  • Applications: Ideal for studios, post-production suites, broadcast facilities, gaming rooms, home theaters, control rooms, and corporate AV environments

how to install Middle Atlantic CFR Series CFR-8-20 Rack Cabinet

  • Plan the installation space, confirming sufficient room for front and rear access and adequate clearance for cables and ventilation.
  • Unpack the CFR-8-20 and inspect all components for shipping damage; verify that mounting rails, hardware, and any included accessories are present per the packaging.
  • Position the cabinet in its intended location, ensuring the surface is level and stable to maintain alignment of rails and mounted equipment.
  • Attach the 19-inch mounting rails to the frame according to the assembly instructions, making sure rails are square, plumb, and properly spaced for the devices you intend to mount.
  • Pre-load or stage equipment off-site or in a staging area to verify fit and cable routing before final installation in the cabinet, which helps confirm port access and airflow pathways.
  • Mount each piece of equipment into the rack, securing with screws and washers and maintaining alignment to prevent skewed or stressed equipment.
  • Route power, signal, and data cables through built-in cable management features; keep power cables separate from signal paths where possible to minimize interference and heat buildup.
  • Manage cables with ties or clamps, labeling as needed for easier future servicing, and ensure cables do not obstruct vents or front/rear panel access.
  • Install any doors or panels and verify that front and rear access remains unobstructed for routine maintenance and equipment changes.
  • Power up the system and perform a functional check of all mounted devices, confirming proper operation and that cooling airflow is not impeded by cabling or components.
  • Document the installation with notes or photos to facilitate future reconfigurations, leveraging the CFR-8-20’s design to simplify upgrades and maintenance.

Frequently asked questions

  • Q: What size of equipment does the CFR-8-20 accommodate?
    A: It supports standard 19-inch equipment mounted in 8U of rack space, with a 20-inch depth for compact, high-density installations.
  • Q: Is the frame suitable for transport and moving between locations?
    A: Yes. The CFR-8-20 is designed with a transport-friendly construction to protect equipment during moves and handling in professional environments.
  • Q: Can gear be pre-loaded before final installation?
    A: Absolutely. The CFR-8-20 offers pre-loading capability to stage and verify gear in a shop or staging area prior to on-site mounting.
  • Q: Does this rack provide front and rear access?
    A: Yes. The design emphasizes easy access to front and rear panels to facilitate installation, cable routing, and maintenance without removing equipment.
  • Q: What environments is this CFR-8-20 rack best suited for?
    A: It’s ideal for studios, post-production suites, broadcast facilities, gaming rooms, home theaters, control rooms, and corporate AV installations where space is at a premium and reliability matters.
  • Q: Are there special airflow considerations?
    A: The cabinet is designed to support proper airflow in compact racks, with clean pathways for air to circulate around mounted devices and through the front and rear access points.
