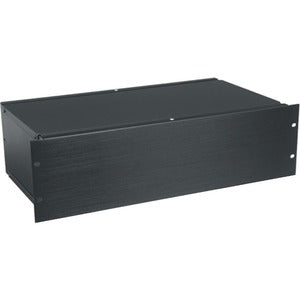

Middle Atlantic Chassis, 3 RU, 10"D
Engineered for professional AV and pro audio installations, the Middle Atlantic CH Chassis delivers a clean, purpose-built solution for mounting equipment in standard racks. This 3 RU chassis is designed to maximize space efficiency without compromising access, cooling, or structural integrity. Its refined, screwless flush-mounted faceplate creates a sleek, professional look that blends seamlessly into high-end rack systems. Built to withstand the demands of install environments—from broadcast rooms to corporate AV setups—the chassis pairs robust construction with precise machining to support a wide range of components while keeping cables organized and out of the way. Whether you’re consolidating amplifiers, distribution gear, or signal processors, this chassis helps you achieve a tidy, accessible, and professional presentation in your rack.
- Rugged, reliable build: The CH Chassis features a 16-gauge all-steel body finished in a durable black powder coat, delivering exceptional rigidity and long-term impact resistance in demanding installation environments.
- Screwless flush-mounted faceplate: Aesthetically balanced and easy to install, the screwless front faceplate provides a clean, uninterrupted silhouette that reduces visible hardware and supports faster, tool-free servicing when needed.
- Precision aluminum panels: Front and rear panels are crafted from aluminum for smooth machining, precise tolerances, and enhanced heat dissipation, contributing to a slimmer profile without sacrificing durability.
- Compact yet capable: With 3 RU height and a 10" depth, this chassis fits neatly into standard rack layouts while still accommodating a broad spectrum of AV and audio equipment, ensuring accessibility and cable management behind the faceplate.
- Versatile rack integration: Designed for standard 19" rack environments, the chassis integrates easily with other Middle Atlantic components and supports clean, professional installations in a variety of environments—from studios to meeting rooms to performance venues.
Technical Details of Middle Atlantic Chassis, 3 RU, 10"D
- Body material: 16-gauge steel
- Finish: Black powder coat on the body for durability and a sleek, professional look
- Front and rear panels: Aluminum for easy machining and lightweight strength
- Front faceplate: Black brushed and anodized finish for a refined appearance
- Faceplate design: Screwless flush-mounted for a clean, professional front
- Depth: 10 inches
- Height: 3 RU
- Rack compatibility: Fits standard 19" racks commonly used in AV and pro audio installations
How to install Middle Atlantic Chassis
Installing the Middle Atlantic CH Chassis is straightforward and designed to minimize disruption to your workflow. Start by assessing your rack space to ensure you have a clear, well-ventilated area for the chassis and any equipment you plan to house inside. Verify that the rack you’re using conforms to standard 19" rack dimensions and can accommodate a 3 RU enclosure with the necessary mounting hardware. Prepare the chassis by inspecting the front faceplate to confirm it is securely attached and that the screwless mechanism sits flush against the mounting surface.
Next, align the chassis within the rack rails. Position it so that the front of the chassis is level and aligned with adjacent equipment. Use the appropriate rack screws or mounting hardware to secure the chassis to the rack rails, ensuring the screws engage the rack’s threaded holes and that the chassis remains stable when loaded with components. Tighten screws evenly to avoid warping the faceplate or distorting the aluminum panels. It’s important to maintain adequate airflow around the chassis to support cooling, so avoid placing the unit directly against dense equipment or closed panels.
With the chassis mounted, you can begin installing internal equipment. Slide modules, power distributors, or signal processing gear into the chassis, taking care to route cables neatly along the sides or rear of the enclosure. Use proper cable management practices to prevent cable strain or interference, and consider adding labeled cable ties or Velcro straps to keep runs organized behind the flush-mounted faceplate. If your installation includes rear-access panels or optional side panels, attach them according to the manufacturer’s guidelines to maintain structural integrity and facilitate serviceability.
Finally, test the assembly. Power up the rack to verify that all installed components operate correctly and that airflow is unobstructed. Check for any buzzing, overheating, or misrouted cables. As with any rack installation, routine inspections are recommended to ensure the faceplate remains flush and the screws remain tight over time. A well-installed CH Chassis not only looks professional but also contributes to long-term reliability and ease of maintenance in busy AV environments.
Frequently asked questions
-
What does 3 RU and 10"D mean for this chassis?
3 RU refers to the vertical height in a standard 19" rack space, equivalent to a fixed portion of the rack’s available height. 10" depth indicates how far the chassis extends from the rack’s front plane, providing room for mounting and cable management behind the faceplate. -
What materials are used in the CH Chassis?
The body is made from 16-gauge steel and finished with a black powder coat for durability, while the front and rear panels are aluminum to facilitate precise machining. The front faceplate is finished in black brushed and anodized to deliver a premium, professional appearance. -
Is the faceplate truly screwless?
Yes. The CH Chassis features a screwless flush-mounted front faceplate designed for a clean look and quicker front-access servicing without visible hardware protruding from the front. -
What rack compatibility does this chassis support?
The chassis is designed to fit standard 19" racks common in AV and pro audio installations, enabling straightforward integration with other rack-mounted equipment and Middle Atlantic components. -
How should I install the chassis in a rack?
Mount the chassis in a standard 19" rack, align with existing equipment, secure with rack screws to the rails, ensure adequate cooling space, and manage cables neatly behind the faceplate to preserve a clean, professional appearance.
