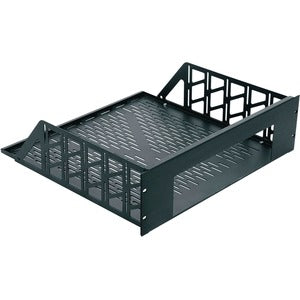

Middle Atlantic Custom Shelf, 7 RU, 14"D, Anodized
Elevate your rack installations with the Middle Atlantic Custom Shelf, a precision-engineered solution designed to maximize space, improve airflow, and deliver a pristine, professional look in any standard 19" enclosure. Built around Middle Atlantic’s legendary RSH custom rackmount system, this shelf is fabricated to create a perfect opening for the face of every component it houses, ensuring a clean, neatly-trimmed installation that looks as good as it performs. Whether you’re stacking audio/video processors, power distribution, switchers, or sensitive equipment, this 7‑RU, 14" depth shelf provides a robust, adaptable mounting platform that contributes to better organization, easier maintenance, and superior system reliability.
- Precise compatibility with standard 19" racks, enabling straightforward upgrades and retrofits without modifying enclosure walls.
- Generous 7 rack units (7 RU) of mounting space optimized for a wide range of components and faceplate configurations.
- Deep 14" depth supports deeper modules and ensures ample clearance for cabling, connectors, and ventilation behind each device.
- Durable anodized finish delivers corrosion resistance, reduced wear, and a sleek, professional appearance that withstands heavy use in commercial environments.
- RSH custom rackmount design creates a tailored face opening for each component, delivering a clean, professional install with a precise fit and minimal gaps.
Technical Details of Middle Atlantic Custom Shelf, 7 RU, 14"D, Anodized
- Rack Unit Capacity: 7 RU
- Depth: 14 inches
- Finish: Anodized (durable, corrosion-resistant)
- Enclosure Compatibility: Standard 19" racks
- Mounting System: RSH custom rackmount approach for precise faceplate openings
- Construction: Aluminum-based shelf with anodized finish for longevity and professional aesthetics
How to Install Middle Atlantic Custom Shelf, 7 RU, 14"D, Anodized
Installing the Middle Atlantic Custom Shelf is designed to be straightforward for technicians working in commercial A/V, broadcast, and IT environments. Start by identifying the component or components that will sit on the shelf and confirm the dimensions and faceplate profile to ensure a precise cutout alignment with the RSH mounting system. The shelf is engineered to fit within a standard 19" rack footprint, with a custom face opening that accommodates the specific component’s front panel.
1) Prepare the rack: Ensure the enclosure is stable and the vertical rails are clean and ready for mounting. If your enclosure uses slide rails or rack ears, make sure they’re compatible with the shelf’s mounting plane.
2) Position the shelf: Slide the shelf into the rack at the desired height. Align the face opening so that the component’s front panel will appear centered and properly oriented when installed.
3) Secure the shelf: Attach the shelf to the rack using the appropriate mounting hardware configured for your enclosure. Tighten fasteners evenly to avoid misalignment and to ensure a level installation that preserves the neat, trimmed appearance promised by the RSH system.
4) Verify cutout alignment: With the shelf in place, test-fit the component by guiding its front panel through the opening. The custom-cut opening should align with the component’s bezel, ensuring a precise, unobstructed face.
5) Install the component: Once the face opening is confirmed, mount the component onto the shelf using its standard mounting points. Route cables neatly behind the device and secure them to prevent strain on connectors, maintaining airflow and accessibility for service.
6) Final inspections: Confirm that the component sits flush within the rack, that the shelf is stable, and that there is adequate clearance for cabling and cooling paths. A clean, professional installation reflects the quality of the RSH approach and the anodized shelf finish.
The EASE of installation is a hallmark of Middle Atlantic’s RSH custom rackmount system. By providing a precisely cut opening customized to the face of the mounted device, this shelf reduces gaps, minimizes rattling, and helps preserve a streamlined, professional look across your rack row. It’s an ideal choice for multi-device racks where consistency, accessibility, and reliability matter most.
Frequently asked questions
Q: What does 7 RU mean, and how much equipment can I fit on this shelf?
A: 7 RU refers to seven rack units of vertical space in a standard 19" rack. The shelf is designed to accommodate a range of components that fit within a 7 RU height specification, with a 14" depth to support deeper devices and onboard cabling. Always verify each device’s dimensions and mounting hardware before installation to ensure a proper fit.
Q: What is the benefit of the anodized finish?
A: Anodized finishes provide enhanced durability, corrosion resistance, and a professional, uniform appearance suitable for commercial, broadcast, and data-center environments. The finish helps protect the shelf in demanding installations while maintaining a clean, low-reflection surface that blends with other rack components.
Q: Is this shelf compatible with all 19" rack enclosures?
A: The shelf is designed for standard 19" racks and combines with Middle Atlantic’s RSH system to create precise face openings. While it works with most conventional enclosures, always confirm external dimensions, mounting hole compatibility, and any enclosure-specific constraints before purchase.
Q: Do I need special tools or custom hardware to install the shelf?
A: In most cases, standard rack-mounting hardware used for your enclosure is sufficient. The RSH design emphasizes precise cutouts and secure mounting, so common screw-fastening methods are typically all that’s required. If your enclosure has unique mounting configurations, consult your rack supplier's guidelines.
Q: Can the shelf be adjusted or moved after installation?
A: Yes. The shelf is designed for standard rack insertion and removal, allowing you to reposition it as needed for reconfigurations or upgrades. Ensure all devices are powered down and cables are disconnected before moving to prevent damage or injury.
Q: What types of components are best suited for this shelf?
A: The shelf is ideal for components with front-face access and modular profiles that benefit from a precise, custom cutout. This includes audio/video processors, power distribution units, network switches, patch panels, and other 19" rack-mountable devices where a clean, professional face is desirable.
