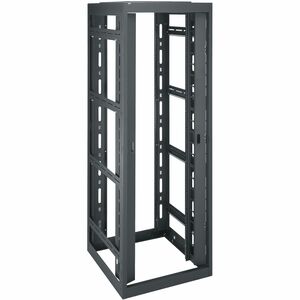

Middle Atlantic DRK Series 44RU Open-Frame Floor Standing Rack - 42in Depth, 30in Width
The Middle Atlantic DRK Series 44RU Open-Frame Floor Standing Rack is purpose-built for high-density cable management and scalable IT infrastructure. With a generous 30-inch wide footprint and a substantial 42-inch depth, this rack creates abundant internal space for back-of-rence cable routing, multi-tiered patching, and strategic airflow. Designed to accommodate standard 19-inch panel width equipment, the DRK rack delivers a robust foundation for network patching, data centers, and cable-heavy environments where reliable organization and ease of access matter most. Built to endure demanding deployments, this open-frame rack blends industrial-grade strength with flexible configurability, making it a smart choice for systems integrators, data-center technicians, and network engineers alike.
- 44U capacity provides ample vertical space for mounting a wide range of equipment, from patch panels to switches and UPS units, while allowing room for future expansion without crowding the racking area.
- 30-inch wide footprint delivers abundant internal cable space, simplifying cable management, routing, and separation of power and data paths to improve airflow and reduce signal interference.
- 42-inch depth is optimized for deeper equipment and profile-heavy installations, enabling secure mounting of equipment at the rear and generous room for cable management arms, rear access, and internal cabling channels.
- Open-frame, floor-standing design offers unrestricted access to both front and rear of equipment, accelerating installation, maintenance, and upgrades while supporting versatile mounting and rearrangement options.
- 19-inch rack-mount compatibility supports a broad range of standard equipment, making the DRK an ideal backbone for network patching, data-center infrastructure, and mission-critical cable deployments in a seismic-certified frame.
Technical Details of Middle Atlantic DRK Series 44RU Open-Frame Floor Standing Rack - 42in Depth, 30in Width
- Model family: DRK Series Open-Frame Floor Standing Rack
- Racks and units: 44U total capacity for vertical space allocation
- Footprint width: 30 inches for expansive internal cable management and side-to-side equipment spacing
- Depth: 42 inches to accommodate deeper equipment and extended cabling paths
- Frame type: Open-frame design optimized for accessibility, airflow, and modular configuration
- Equipment compatibility: Accepts standard 19-inch rack-mount devices and panels
- Construction: Heavy-gauge steel with durable powder-coated finish suitable for demanding environments
- Intended use: Ideal for network patching, data-center patch bays, and cable-heavy installations requiring robust cable management
- Seismic certification: Seismic-certified (where applicable) to meet performance requirements in sensitive locations
- Finish: Protective, non-gloss finish designed to resist wear in high-traffic rack rooms
how to install Middle Atlantic DRK Series 44RU Open-Frame Floor Standing Rack
- Plan your layout: Assess the room layout, power distribution, and patching requirements. Identify front and rear access paths, cooling airflow, and grounding points to determine optimal rack placement and cable management strategy.
- Unpack and inspect: Carefully unbox the rack components and verify that all mounting rails, fasteners, braces, and accessories are present. Inspect for any shipping damage and set aside spare hardware for future use.
- Position and level the rack: Move the DRK rack into position on a clean, solid floor. Use a spirit level to ensure the frame is perfectly plumb and level. Stabilize with floor anchors or leveling feet as required by the installation site.
- Attach mounting rails: Install 19-inch mounting rails at the desired vertical starting points. Align rails precisely to ensure smooth mounting of equipment and avoid binding during insertion. Secure rails with the included hardware per manufacturer guidance.
- Route power and data paths: Plan front-to-back cable routes to minimize tangling and overheating. Install rear access cable channels, cable management arms, and cable gutters if included, leaving ample slack for serviceability and future expansion.
- Mount your equipment: Begin with heavier devices at the bottom to maintain stability. Attach equipment using standard 19-inch rack screws, ensuring proper weight distribution and secure grounding where required.
- Manage cables and labeling: Use cable ties, Velcro straps, and color-coding to create clear, labeled paths. Separate power and data cables to reduce electrical interference and improve airflow across front-to-back cooling paths.
- Test and verify: After installation, validate airflow, verify properly seated equipment, confirm continuity for network connections, and perform a basic test of critical systems to ensure proper operation.
- Document the installation: Record rack elevations, device placements, cable routing diagrams, and labeling conventions to simplify future upgrades, troubleshooting, and maintenance visits.
Frequently asked questions
- Q: What equipment size does this rack accommodate? A: The DRK Series 44RU open-frame rack is designed for standard 19-inch rack-mount equipment, including patch panels, switches, servers, and related network gear. The 44U capacity allows for substantial device density while maintaining accessible cable management paths.
- Q: What is the advantage of a 30-inch wide footprint? A: A wider footprint creates more internal space for cable routing, patching blocks, and rear cable management, improving airflow and reducing clutter. It also helps separate power and data pathways for better signal integrity.
- Q: Is the rack suitable for seismic-sensitive environments? A: Yes, the DRK Series is described as seismic-certified, aligning with standards that support performance in areas with seismic considerations. Confirm local code requirements for your installation site.
- Q: Can I customize or add rear mounting options? A: Open-frame designs like the DRK series are typically adaptable with additional back-plane or cable-management accessories. It’s common to configure rear-mount and cable-management components to suit patch-bay density and cable routing needs.
- Q: How do I maintain optimal cooling in this rack? A: Ensure front-to-back airflow is not obstructed by dense cabling or blocked vents. Use cable management channels to keep cables tidy and away from intake fans, and position high-heat equipment toward lower shelves when possible to support natural convection.
- Q: What tools are needed for installation? A: Basic tools such as a screwdriver, a level, a drill (if floor anchoring is required), and a utility knife for labeling or cable management accessories are typically sufficient. Refer to the product’s installation guide for precise hardware requirements.
- Q: Is there a warranty? A: Middle Atlantic products commonly come with a warranty that covers manufacturing defects and workmanship. Check the current warranty terms for DRK Series at the time of purchase and keep your proof of purchase for service eligibility.
