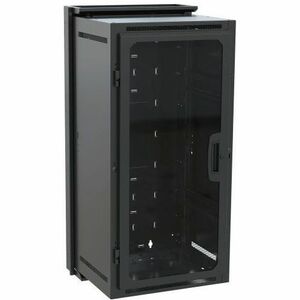

Middle Atlantic DWR Series 24RU Pivoting Wall Rack - 22in Depth - 300 lbs Weight Capacity

Middle AtlanticSKU: 5538129

Price:
Sale price$1,666.80

Description

Middle Atlantic DWR Series 24RU Pivoting Wall Rack - 22in Depth - 300 lbs Weight Capacity

The DWR Series Pivoting Wall Rack from Middle Atlantic is engineered for professional environments where security, accessibility, and speed matter. This 24RU, 22-inch-deep wall-mounted rack combines rugged construction with forward rack rail compatibility and a lever-lock system, delivering a solution that makes equipment mounting, servicing, and cable management dramatically faster and more reliable. Whether you’re outfitting a control room, IT closet, broadcast studio, or AV rack room, the DWR Series provides generous space for full-size 19-inch equipment, streamlined cable pathways, and a robust design that stands up to the demands of today’s equipment and tomorrow’s upgrades. The pivoting design lets technicians access cables and rear connections with ease while preserving security and organization, helping you optimize workspace, improve airflow, and reduce downtime.

  • High-capacity, space-efficient design: A full 24RU layout housed in a 22-inch-deep wall rack provides ample room for a complete 19-inch equipment stack, including power distribution, AV processors, network gear, and patch panels. The compact depth helps maximize usable wall space in tight rooms while preserving front-to-back accessibility for servicing and upgrades.
  • Forward rack rail compatibility with lever-lock: The DWR Series embraces a forward rail system that simplifies mounting and reconfiguration. Lever-lock hardware enables secure, tool-free installation and quick access to equipment, dramatically reducing service time when you need to add or swap gear.
  • Two-way pivot for effortless access: The pivoting design allows technicians to tilt the rack toward the front or rear for optimal cable routing and rear connection access without removing equipment. This capability is especially valuable in crowded installations where space is at a premium and rear cable management matters.
  • Tool-free accessories and off-rail mounting options: A suite of tool-free accessories supports fast customization and expansion. Off-rail mounting options further simplify installation and maintenance, enabling clean cable channels, easier cleanups, and smarter workflows during rack builds and revisions.
  • Durable construction for demanding environments: Built to endure professional use, the DWR Series features rugged steel construction and a lasting finish designed to resist the bumps and scrapes of daily operations. The result is a dependable solution that stays looking and performing well through years of routine service, upgrades, and reallocations of gear.

Technical Details of Middle Atlantic DWR Series 24RU Pivoting Wall Rack - 22in Depth - 300 lbs Weight Capacity

  • RU capacity: 24RU
  • Depth: 22 inches
  • Weight capacity: 300 lbs
  • Rack type: Pivoting wall-mount rack
  • Rail system: Forward rack rail compatibility
  • Locking mechanism: Lever-lock compatibility for quick, tool-free securement
  • Accessories: Tool-free accessories included for fast installation and flexible configuration
  • Construction: Steel with durable powder-coated finish for long-lasting use
  • Mounting orientation: Wall-mounted, designed for efficient front-to-back access and serviceability

How to install Middle Atlantic DWR Series 24RU Pivoting Wall Rack

  • Plan your layout by identifying the best wall location, ensuring the wall can support the full 300 lb load when fully populated. Verify stud locations or use appropriate anchors for the wall type, and prepare space for the 22-inch depth and the pivoting action.
  • Attach the mounting brackets or subframe to the wall according to the product’s hardware kit. Use a level to ensure the base is perfectly plumb and centered, as this will influence the smooth operation of the pivot mechanism and the alignment of your 19-inch equipment.
  • Mount the DWR rack to the brackets, engaging the lever-lock system to lock the rack securely in place. Confirm that the rack pivots smoothly and stays aligned when movement is applied, testing from both front and rear directions so that service access remains reliable.
  • Install equipment into the 19-inch rails inside the rack. Use tool-free accessories to secure modules, closely following weight distribution guidelines to maintain front-to-back balance and optimize airflow. Route cables through built-in pathways or optional cable management features to minimize clutter and ensure clean, accessible connections.
  • Perform a final check by loading a representative mix of equipment within the rated 300 lb capacity, rechecking pivot operation, lever-lock security, and cable routing. Label cables as needed for future maintenance, and train staff on the quick-access workflow enabled by the forward rail system and tool-free accessories.

Frequently asked questions

  • Q: What is the weight capacity of the Middle Atlantic DWR Series 24RU Pivoting Wall Rack?
    A: The rack is designed to support up to 300 lbs of equipment, with even weight distribution across the 24RU frame to maintain stability and serviceability.
  • Q: How deep is the rack, and what does 24RU imply?
    A: The rack depth is 22 inches, providing ample space for standard 19-inch equipment. 24RU indicates the number of standard rack units available for mounting equipment vertically, allowing for a sizable stack within a compact footprint.
  • Q: What does forward rack rail compatibility mean?
    A: Forward rack rail compatibility means the rack is designed to accept rails that allow front-end access to mounted equipment, improving accessibility for installation, maintenance, and cable management without sacrificing rear connections.
  • Q: Are the accessories tool-free?
    A: Yes. The DWR Series includes tool-free accessories that streamline installation and reconfiguration, reducing setup times and enabling quicker upgrades or changes in your rack layout.
  • Q: Can I access equipment from the front and rear sides?
    A: The pivoting design enables convenient access from multiple angles. This is particularly helpful in tight spaces where rear clearance is limited, as you can tilt or pivot the rack for easier service without removing gear.
