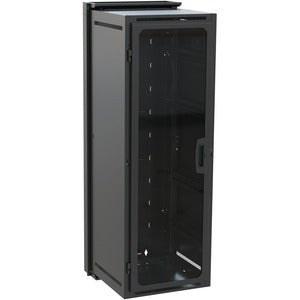

Middle Atlantic DWR Series 35RU Pivoting Wall Mounted Rack — 26in Depth Wall Mounted Cabinet

The Middle Atlantic DWR Series 35RU Pivoting Wall Mounted Rack is engineered for professional AV, broadcast, and IT environments that demand maximum rack capacity in a space-saving, wall-mount form. This 26-inch deep wall cabinet delivers 35 rack units of versatile mounting space while offering a pivoting design that makes access to equipment, cabling, and rear connections faster and safer. With forward rack rail compatibility and lever-lock options, this rack enables secure on- and off-rail installations, streamlining service workflows and reducing downtime. Built to withstand demanding installations, the DWR Series is designed to simplify complex rack configurations using intuitive, tool-free accessories that speed up setups without compromising reliability.

• High-density capacity in a compact wall cabinet: 35RU of mounting space inside a 26-inch deep enclosure, ideal for dense equipment deployments in control rooms, studios, server rooms, and classrooms.
• Pivoting access for fast service: The pivoting wall-mounted design provides effortless access to both front and rear panels, cables, and power connections, making maintenance, upgrades, and reconfigurations quick and safe.
• Forward rack rail compatibility with lever-lock security: Designed to work with forward rack rails, plus lever-lock options that secure gear on and off the rail, giving you flexible mounting options and stabilized hardware during servicing.
• Tool-free accessories for rapid installations: A suite of tool-free components lets installers attach equipment and accessories without tools, accelerating deployment and reducing installation labor by up to five times according to product design intent.
• Robust construction and versatile mounting: Built to support demanding environments, with compatibility for off-rail installations and streamlined cable management that keeps systems neat and accessible for technicians.

Technical Details of Middle Atlantic DWR Series 35RU Pivoting Wall Mounted Rack - 26in Depth Wall Mounted Cabinet

• Rack units (RU): 35RU of vertical mounting space for full-width equipment and accessories.
• Depth: 26 inches, delivering generous room for deep equipment, cabling backshells, and power solutions while maintaining a compact wall footprint.
• Configuration: Pivoting wall-mounted rack cabinet that enables easy front and rear access for maintenance, upgrades, and reconfiguration.
• Rail compatibility: Forward rack rails supported, with lever-lock compatibility to secure gear on and off the rail during service intervals.
• Installation approach: Tool-free accessories designed to speed up installation, alignment, and removal of equipment, reducing installation time and complexity.
• Mounting versatility: On-rail and off-rail mounting capability supports a range of deployment scenarios and future reconfigurations as equipment evolves.
• Intended use: Suited for professional AV, broadcast, IT, and communications installations where secure, accessible, and scalable rack infrastructure is essential.

How to Install Middle Atlantic DWR Series 35RU Pivoting Wall Mounted Rack

• Plan the installation: Determine the wall location that provides clear access to rear cabling, power, and network connections. Verify wall integrity and ensure sufficient support for a 26-inch deep cabinet. Prepare a layout that accommodates venting, cable management, and future expansion.
• Gather components: Assemble the DWR Series rack, required forward rails, lever-lock hardware, and any tool-free accessories included with the system. Have tape measure, level, and basic hand tools on hand for precise mounting and alignment.
• Mark and locate mounting points: Identify stud lines or reinforced backing behind the chosen wall surface. Mark the locations for mounting brackets or rails that will anchor the cabinet securely to the wall while supporting the full 35RU load and dynamic access when pivoted.
• Attach mounting rails and pivot mechanism: Install the forward rail and pivot hardware according to the product’s guidance, ensuring smooth pivot action and unobstructed clearance when the door or panels swing open. Use the lever-lock components where applicable to secure rails and equipment during operation and maintenance.
• Mount equipment and route cables: Place equipment into the 35RU space, using any tool-free accessories to secure gear as needed. Route power, data, and control cables along integrated cable management paths to minimize interference and maximize airflow. Ensure rear cabling is accessible for maintenance when the rack is pivoted.
• Test operation and secure the enclosure: Pivot the rack to confirm full range of motion, then secure any locking mechanisms (such as lever locks) and verify that doors or panels close without binding. Re-check all fasteners for snugness and confirm that equipment remains stable during movement.
• Finalize labeling and documentation: Document the configuration, including rack unit mappings, cable routes, and any lever-lock positions. Label power and network ports for quick identification during service calls or future upgrades.

Frequently asked questions

• Q: How much rack space does the DWR Series 35RU provide?
  A: The DWR Series 35RU offers 35 rack units of mounting space, engineered to maximize capacity within a 26-inch-deep wall-mounted cabinet.
• Q: Does this rack support pivoting access?
  A: Yes. The design features a pivoting wall-mounted cabinet that provides convenient access to both front-facing equipment and rear cabling, enhancing service efficiency and reducing downtime.
• Q: What rail systems are compatible?
  A: The unit is designed for forward rack rail compatibility and includes lever-lock options to secure gear on and off the rail during installation or servicing.
• Q: Are tool-free accessories included?
  A: The DWR Series includes tool-free accessories that help installers complete setups faster, contributing to a claimed five-times faster installations in appropriate configurations.
• Q: Can I mount equipment off the rails?
  A: The design supports mounting on and off the rail, providing versatile configurations for different equipment footprints and service needs.
