Description

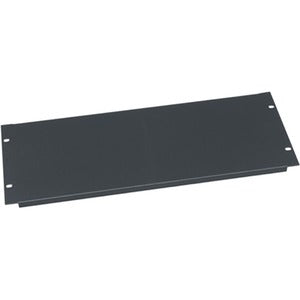

Middle Atlantic EB4-CP6 Blank Panel
Designed for professional AV and IT installations, the Middle Atlantic EB4-CP6 Blank Panel provides a clean, durable solution to conceal unused rack space in 19-inch enclosures. Built to seamlessly integrate with EB4 series frames, this 6-inch deep blank panel helps protect sensitive components, manage airflow, and maintain a tidy, professional rack appearance. Crafted from sturdy steel with a corrosion-resistant black powder coat, the EB4-CP6 blends form and function for installations ranging from broadcast studios to data centers and audio-visual setups. If you’re organizing a rack, this blank panel offers a reliable, cost-effective way to seal gaps, reduce dust intrusion, and preserve the aesthetics of a high-performance environment.
- 6-inch depth designed to fit standard EB4 frame depths and provide ample room for cabling behind the panel without crowding adjacent equipment.
- Durable 16-gauge steel construction with a protective black powder coat for long-lasting rigidity and corrosion resistance in demanding environments.
- Standard 19-inch width to ensure compatibility with most rack systems and rail configurations used in professional studios, control rooms, and data centers.
- Effortless installation with standard mounting hardware; securely blanks off unused rack spaces in minutes to maintain a clean, professional look.
- Dust and airflow management helps protect equipment, improve cooling efficiency, and maintain a tidy enclosure by eliminating exposed gaps in your rack.
Technical Details of Middle Atlantic EB4-CP6 Blank Panel
- Model: EB4-CP6
- Type: Blank Panel
- Material: 16-gauge steel
- Finish: Black powder coat
- Width: 19 inches (standard rack width)
- Depth: 6 inches
- Compatibility: Fits standard 19" rack systems and EB4 series frames
- Purpose: Conceals empty rack spaces, supports airflow management, and maintains a professional appearance
how to install Middle Atlantic EB4-CP6 Blank Panel
Installing the EB4-CP6 Blank Panel is quick and straightforward, making it an ideal choice when you need to finish a rack install with a clean, professional look. Follow these steps to ensure a secure fit that preserves the integrity of your equipment and cooling strategy:
- Prepare your rack: Ensure the section of the rack where the blank panel will be installed is clear and free of obstructions. Confirm that the rails are aligned and properly secured.
- Align the panel: Hold the EB4-CP6 blank panel against the front of the rack at the desired mounting position. Make sure the mounting holes on the panel line up with the holes on the rack rails.
- Insert mounting screws: Using standard rack screws (typical to most 19" systems, such as 10-32 or M6, depending on your rails), insert screws into the two mounting ears on each side of the panel. Do not overtighten; snug the screws to avoid warping the panel.
- Secure and level: Tighten all screws evenly on both sides to keep the panel flush with the rack face. Check that the panel sits square and does not interfere with adjacent equipment or door clearance (if your rack has a door).
- Final check: Confirm that the panel is firmly attached, sits flat, and leaves a clean, uninterrupted line across the front of the rack. If necessary, adjust screws for a perfect fit and ensure there is no rattling during operation.
Frequently asked questions
-
Q: What is the EB4-CP6 Blank Panel used for?
A: It’s a purpose-built cover for unused spaces in 19" racks, designed to protect equipment, improve airflow, and maintain a tidy, professional appearance in AV and IT installations. -
Q: What depth is this panel?
A: The EB4-CP6 has a 6-inch depth, making it suitable for standard EB4 frame depths and behind-the-panel cable routing needs. -
Q: Is it compatible with all 19" racks?
A: Yes. It fits standard 19" rack systems and is designed to integrate smoothly with EB4 series frames from Middle Atlantic and other compatible racks. -
Q: What material is used?
A: The panel is constructed from 16-gauge steel with a black powder-coated finish for durability and a professional appearance. -
Q: How do I install the blank panel?
A: Use standard rack mounting screws to attach the panel to the rack rails. Align, insert, and tighten evenly on both sides until the panel sits flush with the rack front.
