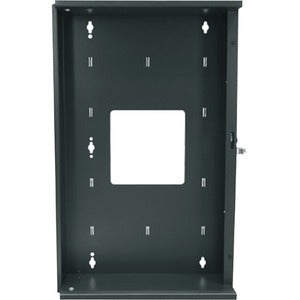

Middle Atlantic Essex PIVOT-MMR-16 Mounting Panel for Rack
Discover a smarter, space-saving solution for mounting the Essex MMR series racks with the Middle Atlantic PIVOT-MMR-16 Mounting Panel for Rack. This pivoting backpan is engineered to transform wall-mounted installations by delivering effortless rear access to equipment connections for service and upgrades, while preserving a clean, professional aesthetic. Built for rugged reliability in demanding environments—from broadcast studios to data centers and high-density AV rooms—this mounting panel combines thoughtful design with durable construction, enabling technicians to perform maintenance without removing racks from the wall. The PIVOT-MMR-16 is the practical choice when you need rapid access to rear ports, streamlined cable management, and a mounting solution that respects both space constraints and workflow efficiency.
- Pivoting backpan enables wall mounting of Essex MMR racks with full, convenient access to rear equipment connections for service and upgrade without removing the rack from the wall.
- Designed specifically for the Essex MMR series, ensuring precise fit, secure mounting, and reliable operation in compact or constrained spaces.
- Space-saving wall-mount solution that optimizes room layout, improves ventilation around mounted equipment, and simplifies cable management for clean, professional installations.
- Durable steel construction with a protective powder-coated finish that withstands daily handling in commercial AV, IT, and broadcast environments.
- Easy installation with included hardware and clear guidance, plus a pivot mechanism that supports quick maintenance checks and streamlined service access.
Technical Details of Middle Atlantic Essex PIVOT-MMR-16 Mounting Panel for Rack
- Compatibility: Essex MMR series racks, providing a precise, secure fit when paired with compatible Essex panels and enclosures.
- Mounting type: Pivoting backpan designed for wall installation to maximize floor space and allow rear access for cables and connections.
- Construction: Heavy-duty steel framework with a durable protective coating to resist impact, corrosion, and wear in professional environments.
- Finish: Powder-coated surface for long-lasting durability and a professional, low-reflection appearance suitable for high-visibility installations.
- Weight considerations: Designed to support typical Essex MMR configurations as installed in standard environments; exact weight ratings may vary depending on rack model, hardware, and wall infrastructure.
- Hardware: Includes mounting hardware appropriate for Essex MMR integration, with fasteners and fittings chosen to ensure secure installation on compatible wall substrates.
How to install Middle Atlantic Essex PIVOT-MMR-16 Mounting Panel for Rack
Installing the Pivot-MMR-16 is straightforward when you follow the sequence below. This guide emphasizes secure mounting, proper clearance for pivot operation, and careful planning for rear cabling. Always ensure your wall structure can bear the combined weight of the rack and mounted equipment, and use appropriate anchors for your wall type. The result is a stable, service-friendly installation that keeps equipment accessible and cables neatly organized.
- Step 1: Verify compatibility and prepare the installation area. Confirm the Essex MMR rack is compatible with the Pivot-MMR-16 backpan and identify the wall location that provides sufficient space for pivoting and rear cable access.
- Step 2: Mark mounting points and install wall anchors. Use a level to ensure the backpan will mount squarely, then secure anchors suitable for the wall material (drywall, concrete, or masonry) to support the expected load.
- Step 3: Attach the pivoting backpan to the wall. Align the backpan with the installed anchors and fasten it securely, checking that the pivot mechanism moves freely without obstruction.
- Step 4: Mount the Essex MMR rack onto the backpan. Use the provided hardware to attach the rack to the backpan, ensuring rails and mounting holes align properly for stable support and unobstructed rear access to ports and connectors.
- Step 5: Route cables and test pivot operation. Arrange cables to minimize strain on ports, verify that rear connections are accessible when pivoted, and test the pivot action to confirm smooth operation and reliable service access.
Frequently asked questions
-
Q: What is the Middle Atlantic Essex PIVOT-MMR-16 Mounting Panel used for?
A: It is a pivoting backpan mounting panel designed to enable wall mounting of Essex MMR series racks, providing ready access to rear equipment connections for service and upgrade without removing the rack from its mounted position.
-
Q: Which racks are compatible with the PIVOT-MMR-16?
A: The panel is designed for Essex MMR series racks, ensuring precise fit and secure mounting when used in conjunction with compatible Essex MMR enclosures and frames.
-
Q: Does the pivoting backpan affect airflow or cooling?
A: When installed according to manufacturer guidelines, the backpan preserves clearance and ventilation around mounted equipment, supporting proper airflow while maintaining easy access for maintenance.
-
Q: How do I install the Pivot-MMR-16?
A: Install on a suitable wall surface using the included hardware, attach the Essex MMR rack to the backpan, route cables to the rear, and verify the pivot mechanism operates smoothly during service checks.
-
Q: Is professional installation recommended?
A: For best results and to ensure safety, professional AV or IT installation is recommended, especially in commercial environments where weight, wall type, and rack alignment are critical.
-
Q: Where can I find the official specifications?
A: Official specifications are provided by the manufacturer and distributor; for precise measurements and load ratings, refer to the product documentation or the ec.synnex.com listing for your UPC or SKU.
