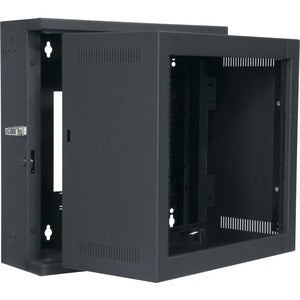

Middle Atlantic EWR Series 12RU Pivoting Wall Mounted Enclosure - 22in Depth

The Middle Atlantic EWR Series 12RU Pivoting Wall Mounted Enclosure is engineered for compact, performance-focused systems where space is at a premium but reliability cannot be compromised. This 12-rack-unit (12RU) enclosure leverages a deep 22-inch profile to accommodate a wide range of gear, from patch panels and power distribution to small servers and network equipment. Its pivoting, sectional design delivers unparalleled access for installation, maintenance, and cable management, making it ideal for environments where security and convenience must coexist. Built to endure, the EWR enclosure is a value-driven solution that blends sturdy construction with a sophisticated mounting system, delivering professional-grade reliability in secured and unsecured spaces alike. Whether you’re outfitting a compact post-production suite, a small control room, a conference center AV rack, or a museum exhibit space, this enclosure provides the organization, airflow, and serviceability you demand without breaking the budget.

• 12RU capacity in a compact 22in deep enclosure: Optimized for small to mid-sized systems, the 12RU layout maximizes vertical space while the 22" depth provides ample room for cabling, power strips, and accessories, reducing clutter and improving airflow.
• Pivoting wall-mounted design for unmatched access: The pivot mechanism swings away from the wall, delivering easy front-to-back access to equipment, rear cabling, and internal components without removing the enclosure from the wall mount.
• Fully welded construction for maximum strength: A robust, welded steel chassis delivers rigidity and long-term durability, protecting valuable gear in busy environments and minimizing flex under load.
• Patented Tool Free Quick-Mount system for center section mounting: This innovative mounting approach simplifies installation, enabling secure center-section attachment without tools, speedily accommodating upgrades or reconfigurations.
• Versatile placement for secured and unsecured environments: Designed to perform in spaces requiring reliable equipment protection while offering flexible access and serviceability for IT, A/V, and broadcast gear.

Technical Details of Middle Atlantic EWR Series 12RU Pivoting Wall Mounted Enclosure

• Rack Units (RU): 12RU interior capacity to house a range of components from patch panels to small network devices.
• Depth: 22 inches from front to back, enabling deeper components and organized back panel cabling without crowding.
• Construction: Fully welded steel cabinet provides structural integrity and durability in demanding environments.
• Pivoting Mechanism: Swing-out design allows convenient access for installation, maintenance, and cable routing, reducing installation time and service downtime.
• Mounting System: Center section mounting uses a Tool Free Quick-Mount system for rapid assembly and reconfiguration without specialized tools.
• Intended Use: Suitable for both secured and unsecured areas where reliable equipment housing and organized cable management are required.
• Finish and Appearance: Built to integrate cleanly with contemporary A/V and IT racks, offering a professional, unobtrusive presence in busy environments.

How to Install Middle Atlantic EWR Series 12RU Pivoting Wall Mounted Enclosure

• Plan your layout and mounting location: Choose a wall with solid framing capable of supporting the weight of populated rack gear. Consider proximity to power sources, network outlets, and cooling paths to maintain airflow and minimize cable runs.
• Prepare the wall and mounting surface: Locate wall studs or structural backing and verify the wall is plumb. Ensure there is clear access space for the 22" depth and the pivoting swing of the enclosure.
• Attach wall anchors or backing plates: Depending on your wall type, install appropriate anchors or backing plates rated for the anticipated load. Use a level to ensure the mounting surface is perfectly vertical to avoid misalignment during installation.
• Mount the enclosure frame: With the pivoting mechanism ready, secure the enclosure to the wall using the provided mounting hardware. Verify that the frame sits firmly and can support the intended gear weight with minimal flex.
• Utilize the Tool Free Quick-Mount center section: If you’re configuring modular components, attach the center section using the Tool Free Quick-Mount system. This enables rapid assembly and future reconfigurations without tools.
• Route cables and install equipment: Begin with essential power and network cabling, then install patch panels, switches, and small servers as needed. Plan cable management channels and Velcro ties to keep cables organized and accessible when the door is closed.
• Close and test the pivoting enclosure: Gently swing the enclosure back into position, verify full range of motion, and test door latching if applicable. Power up equipment and confirm connectivity to ensure proper cabling and ventilation paths.
• Finalize with security and airflow considerations: If security is critical, ensure access panels and doors engage properly. Confirm that intake and exhaust paths remain unobstructed to promote cooling efficiency across the 12RU stack.

Frequently Asked Questions

• What is the rack capacity of the Middle Atlantic EWR Series enclosure? It provides 12 rack units (12RU) of vertical space, designed to accommodate a range of AV, IT, and network equipment in a compact footprint.
• How deep is this enclosure? The enclosure has a 22-inch depth, enabling deeper gear and ample space for back-panel cabling and power distribution devices.
• Is the enclosure suitable for secured and unsecured environments? Yes. The EWR Series is designed to perform in both secured and unsecured spaces, offering robust construction and flexible access for service and maintenance.
• What makes the Tool Free Quick-Mount system special? The Tool Free Quick-Mount system streamlines center section mounting, reducing installation time and enabling quick upgrades or reconfigurations without tools, which is especially valuable in evolving systems.
• Can I use this enclosure for network gear and small servers? Yes. The 12RU capacity and deep 22" profile are well-suited for patch panels, switches, small servers, and related network or AV equipment when organized with proper cable management.
• Does the pivoting design improve service access? Absolutely. The pivoting wall-mounted design provides expanded front-to-back access, making it easier to install, modify, and service gear without removing the enclosure from the wall.
• What installation considerations should I keep in mind? Plan for wall integrity, weight load, cable management, ventilation, and accessibility. Ensure you have proper mounting hardware for your wall type and adequate space for pivoting clearance.
