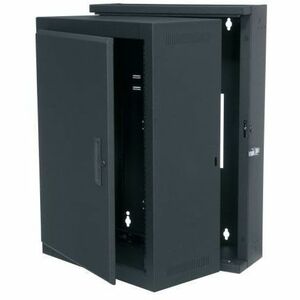

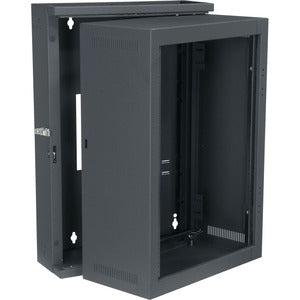

Middle Atlantic EWR Series 16RU Pivoting Wall Mounted Enclosure — 22in Depth Wall Mounted Rack

The Middle Atlantic EWR Series 16RU Pivoting Wall Mounted Enclosure is the affordable, space-saving solution for small to mid-size installations that demand professional-grade reliability. Built to endure in both secured and unsecured environments, this pivoting wall cabinet combines robust, fully welded construction with a user-friendly Tool Free Quick-Mount system, making it easier to mount, service, and reconfigure gear as needs evolve. With 16 rack units (RU) of vertical space and a generous 22-inch depth, it accommodates a wide range of networking, IT, broadcasting, and A/V equipment while keeping cabling organized and access convenient. Designed for installations where floor space is at a premium, the EWR pivoting enclosure brings the protection of a rack enclosure to the wall, freeing up valuable floor space without sacrificing security or serviceability.

• The 16RU capacity and 22-inch depth strike an optimal balance between equipment density and accessibility, enabling you to house switches, patch panels, small servers, power distribution, and related peripherals in a compact wall-mounted footprint. This configuration is ideal for offices, classrooms, broadcast suites, control rooms, and small data closets where full-size racks aren’t practical but professional enclosure protection is essential.
• Fully welded steel construction delivers formidable strength and long-term durability, resisting flex and corrosion while providing a rigid skeleton for mounting rails and equipment. The precision-welded frame ensures square doors and consistent gaps, contributing to a clean, professional appearance in any workspace or secured environment.
• The pivoting design provides unmatched access to front and rear panels, cables, and gear without the need to remove doors or strain hinges. This feature simplifies routine maintenance, component swaps, and cable management, while the center of gravity stays balanced for smooth operation even when fully loaded.
• Patented Tool Free Quick-Mount system for center section mounting dramatically reduces installation time by letting you attach and reposition the center section without tools. This makes mid-project reconfigurations—such as adding a new patch panel or re-routing cables—fast and easy, minimizing downtime and technician effort.
• Engineered for versatility in both secured and unsecured areas, the EWR enclosure combines secure, lockable access with a robust, durable finish and modular interior options. Its powder-coated exterior resists scuffs and scratches, helping to preserve a professional look in environments from corporate networks to education facilities, while maintaining compliance with industry-standard rack hardware and mounting rails.

Technical Details of Middle Atlantic EWR Series 16RU Pivoting Wall Mounted Enclosure - 22in Depth Wall Mounted Rack

• Rack Units (RU): 16 — Provides ample vertical space for a range of networking, AV, and IT equipment while preserving a compact wall footprint.
• Depth: 22 inches — Generous interior depth accommodates bulkier devices and behind-panel cable management without crowding access paths.
• Construction: Fully welded steel cabinet — Superior rigidity and durability to handle daily access, movement, and equipment loads.
• Pivoting wall-mount design — Enables convenient access to both front and rear areas, simplifying installation, servicing, and cable routing.
• Mounting system: Center section with Tool Free Quick-Mount — Speeds up assembly and reconfiguration by eliminating dependence on tools for center section mounting.
• Interior flexibility: Center section mounting supports modular configurations for added storage, cable management, or equipment organization as needs evolve.
• Finish: Durable powder-coated exterior — Resists scratches and wear, maintaining a professional appearance in busy environments.
• Compatibility: Standard 19" rack rails for equipment mounting (consult product documentation for exact rail configurations and weight limits).
• Security: Lockable doors provide controlled access to sensitive gear, with robust latching mechanisms designed for repeated use.
• Applications: Well-suited for small data closets, AV control rooms, classroom IT hubs, and other installations where space, security, and ease of maintenance matter.

How to install Middle Atlantic EWR Series 16RU Pivoting Wall Mounted Enclosure

Proper installation maximizes the enclosure’s performance and protects your valuable equipment. Begin by selecting a secure wall location with solid structural support—preferably wood or masonry with appropriate anchoring hardware rated for the loads you expect. Locate wall studs or structural members to ensure sturdy mounting. Attach a compatible mounting frame or wall plate if required by your installation and the specific wall type, ensuring level alignment. With the pivoting door closed, align the enclosure’s mounting holes to the wall brackets, and secure the enclosure using high-quality wall anchors or lag screws designed for the wall type. Once the cabinet is secured, install the 19" rack rails inside the enclosure to support your equipment; the Tool Free Quick-Mount center section can be attached as needed to accommodate added components or reconfigured layouts. Route cables through designed knockouts or cable management channels, using grommets or bushings to protect cables from sharp edges and to maintain a tidy, organized interior. Install patch panels, switches, and other devices on the 19" rails, ensuring balanced weight distribution and proper venting to prevent overheating. After equipment is installed, connect power and data cables, verify connectivity, and perform a final cable management pass to minimize clutter. Close the pivoting door, lock it if security is required, and ensure the hinge operates smoothly as the cabinet opens and closes for ongoing maintenance. Periodically inspect seals, locks, and rails to ensure continued performance and structural integrity.

Frequently asked questions

• Q: What does 16RU mean for this enclosure? A: 16RU refers to the total vertical space inside the cabinet. It defines how many standard 19-inch equipment rows can be mounted on the internal rails, allowing you to plan for switches, patch panels, small servers, and related gear within the available height.
• Q: How deep is the enclosure, and why does depth matter? A: The enclosure is 22 inches deep, providing enough space to accommodate larger equipment and rear cable management, while still fitting in spaces with limited floor area. Adequate depth supports better airflow and cable routing without crowding front-access components.
• Q: Is the enclosure secure for use in unsecured areas? A: Yes. The EWR Series enclosure is designed for use in both secured and unsecured environments. It features a lockable door and a sturdy construction that helps deter tampering while allowing convenient access for authorized technicians.
• Q: What installation advantages does the Tool Free Quick-Mount center section offer? A: The Tool Free Quick-Mount system enables rapid configuration changes by allowing you to mount or reposition the center section without tools. This reduces downtime during upgrades or reconfigurations and simplifies ongoing maintenance.
• Q: What devices can I mount in the EWR enclosure? A: The enclosure is designed for standard 19" equipment and can accommodate a variety of IT and A/V gear, such as switches, patch panels, small servers, and related accessories. Always verify rail weight ratings and ensure proper ventilation for your specific equipment.
