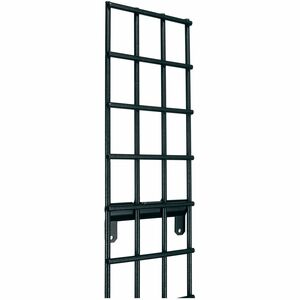

Middle Atlantic Forward 3 Inch Wide Wire Grid Lace, Fits 41 RU To 42 RU
Take control of cable chaos with the Middle Atlantic Forward 3" Wire Grid Lace Cable Management. This practical, high-performance accessory is designed to drop into the front-to-back slots of Lever Lock rackrail brackets on the BGR, DWR, and SR Series racks, delivering a secure, open-grid surface that makes routing cables intuitive and scalable. The 3-inch width strikes a balance between maximum cable capacity and preserving valuable rack space, enabling clean, organized installations in mid-sized racks without compromising airflow or accessibility. Built to accommodate racks configured for 41 RU to 42 RU, the Forward Lace is ideal for professional audio-visual setups, broadcast environments, data centers, and IT closets where neat cable runs translate into faster maintenance, easier upgrades, and better thermal performance. Its grid pattern supports both vertical and horizontal routing, empowering technicians to separate critical cable bundles, minimize interference, and trace routes with ease. The drop-in installation minimizes downtime and eliminates the need for complex mounting hardware, so teams can deploy, reconfigure, and re-route cables in minutes. Durable by design, the lace maintains its shape under typical rack loads and provides a stable platform for ongoing cable management as equipment evolves. In short, this Forward Lace is a smart, future-proof investment for anyone who values orderly cables, professional presentation, and reliable rack performance.
- Seamless drop-in installation into Lever Lock rackrail brackets—drop the lace into front-to-back slots for a fast, tool-free setup that keeps projects on schedule and on budget. The straightforward installation minimizes downtime during rack migrations or equipment changes, allowing technicians to move quickly from one configuration to the next while preserving a tidy, professional look.
- Open-grid design supports clean, dual-direction routing of power and data cables; at 3 inches wide, it offers generous capacity without crowding adjacent equipment or obstructing airflow. The grid pattern gives you flexible paths for cable management, plus the ability to re-route cables as needed for audits, upgrades, or equipment swaps all while maintaining clean, professional cable runs.
- Rugged construction resists sag and deformation under load, maintaining grid integrity through frequent cable changes and long-term use in demanding environments. This reliability translates into fewer maintenance calls and a lower risk of misrouted cables during busy production or data center cycles.
- Engineered for exact compatibility with Middle Atlantic BGR, DWR, and SR Series racks, ensuring a precise, secure fit in standard 41 RU to 42 RU configurations. The integration with Lever Lock rails provides a snug, vibration-resistant interface that stays in place during transport or rack moves.
- Helps improve cable organization, inventory control, and maintenance efficiency by providing a predictable routing canvas that technicians can rely on during audits or upgrades. A consistent grid helps technicians quickly identify cables, trace routes, and document changes, contributing to better IT governance and facility management.
Technical Details of Middle Atlantic Forward 3 Inch Wide Wire Grid Lace, Fits 41 RU To 42 RU
- Width: 3 inches
- RU compatibility: Fits 41 RU to 42 RU racks
- Mounting: Lever Lock rackrail brackets on BGR, DWR, and SR Series racks
- Installation style: Drop-in into front-to-back slots for quick setup
- Design notes: Open-grid pattern supports vertical and horizontal cable routing
how to install Middle Atlantic Forward 3 Inch Wide Wire Grid Lace, Fits 41 RU To 42 RU
Follow these straightforward steps to install the Forward 3" Wire Grid Lace quickly and safely in your rack system. This process is designed to minimize downtime and maximize the efficiency of your team during both initial deployments and future reconfigurations.
- Prepare the rack by locating the Lever Lock rackrail brackets and ensuring the front-to-back slots are accessible. Clear the area around the rails and verify that the rack is stable before beginning installation.
- Align the Lace precisely with the rack rails and drop it into the front-to-back slots on the Lever Lock brackets. Make sure the grid sits flush against the rack face and that there are no gaps that could snag cables.
- Push or slide the grid forward until the lace seats securely within the rack rails and lies flush with adjacent panels. Verify that the edges are level and that there is no bending or warping in the grid structure.
- Begin routing cables across the grid, separating power and data paths where possible to maximize airflow and ease future changes. Use minimal bend radii and organize bundles with reuse-friendly ties or clips to maintain a neat appearance.
- Verify clearance and airflow after installation; adjust cable bundles as needed to maintain neat organization and rack performance. Periodically inspect the grid during routine maintenance to ensure continued alignment and access for dynamic cabling needs.
Frequently asked questions
- Q: What racks is this lace compatible with? A: It’s designed for Middle Atlantic BGR, DWR, and SR Series racks that use Lever Lock rackrail brackets, tailored to 41 RU–42 RU configurations for a secure, drop-in fit. If you operate a non-Middle Atlantic system, check rail compatibility before installation.
- Q: How wide is the lace? A: It is 3 inches wide, providing ample space for cable bundles while preserving rack density and airflow. The width accommodates multiple cables of various diameters and can simplify organization in compact setups.
- Q: Is installation tool-free? A: Yes. The lace drops into the front-to-back slots of Lever Lock brackets, allowing a quick, tool-free installation that can be completed by a single technician. For best results, handle the grid gently to avoid any bending during placement.
- Q: Can I route both power and data cables on the grid? A: Absolutely. The open-grid pattern supports vertical and horizontal routing; however, keep power and data separation in mind to minimize interference and simplify maintenance. Plan cable paths ahead of time to maximize airflow and minimize heat buildup.
- Q: Where can I get exact specifications? A: The product is designed to fit 41–42 RU Middle Atlantic racks and uses a 3" wide grid; for full technical specifications, refer to official product documentation and rack compatibility guides from Middle Atlantic or authorized distributors.
