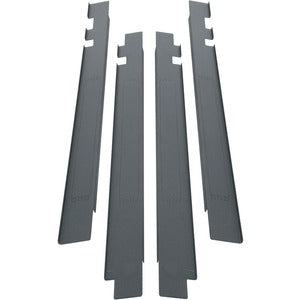

Middle Atlantic Front-Air Dam Panel Mount, 30"W X 45 RU SNE Racks

In busy rack rooms, airflow and space are precious. The Middle Atlantic Front-Air Dam Panel Mount is engineered to optimize both, offering a robust front-dam solution that lets you mount patch panels and other connectivity devices without sacrificing valuable rack real estate. Crafted for 30" wide SNE racks and capable of handling up to 45 rack units, this panel mount delivers dependable performance in data centers, audio-visual installations, broadcast suites, and IT closets. The steel construction and black powder coat finish stand up to daily use, while the front-air dam design helps manage cold air intake and reduce hot spots at the front of the rack. With practical knockouts for standard patch panels and a Zero-U footprint, it is an essential accessory for professionals seeking organized, efficient, and scalable rack infrastructure. This solution is particularly valuable for installers who prioritize cooling efficiency, cable management, and future-ready expansion without compromising cabinet aesthetics.

• Zero‑U footprint saves valuable rack space while providing a sturdy mounting surface for patch panels and connectivity devices. This design frees vertical space for other equipment and simplifies cable routing, helping technicians keep the front of the rack neat and accessible even in dense installations. You can consolidate multiple front‑facing components without sacrificing maneuverability or airflow.
• Front‑air dam design controls airflow at the front of wider racks, helping to minimize front-end hot spots and improve cooling efficiency across dense equipment suites. By promoting a clear intake path, it supports more stable temperatures for sensitive gear and reduces the risk of thermal throttling in high‑density environments. This feature is ideal for rooms with limited cooling capacity or variable workloads.
• Includes knockouts for mounting standard patch panels and connectivity devices, enabling flexible, scalable deployments. The dam panel is designed to accommodate common 19" equipment and offers straightforward integration with existing patching schemes, patch panels, and belly‑pan connectors. This makes it simple to upgrade or reconfigure your rack layout as needs evolve.
• Steel construction with a black powder coat finish offers long‑lasting durability and a professional appearance that stands up to daily use in data centers, media rooms, and broadcast environments. The rugged finish resists corrosion and fingerprints, maintaining a clean, corporate look even after years of service and frequent cable reentries for maintenance or upgrades.
• Designed for 30"W x 45RU SNE racks, ensuring a precise fit and easy integration with compatible Middle Atlantic rack systems. The standard dimensions align with common rack footprints, simplifying inventory management and reducing installation time. This compatibility helps installers deliver consistent results across multiple rooms or facilities.

Technical Details of Middle Atlantic Front-Air Dam Panel Mount

• Width: 30 inches
• Rack height: 45 RU
• Rack system compatibility: SNE Racks
• Mounting: Front‑air dam panel mount with Zero‑U considerations
• Material: Steel
• Finish: Black powder coat
• Purpose: Airflow control and mounting surface for patch panels and connectivity devices
• Knockouts: Integrated knockouts to facilitate mounting of standard patch panels

How to Install Middle Atlantic Front-Air Dam Panel Mount

To maximize airflow and rack efficiency, install the Front-Air Dam Panel Mount on the front of your 30"W x 45RU SNE rack and mount your patch panels or connectivity devices onto the dam plate. Follow these general steps to ensure a secure and effective installation:

• Plan your layout by identifying where patch panels and devices will mount, ensuring clearance for cables, connectors, and future expansion. Consider the thermal profile of each device to organize exhaust paths and intake zones.
• Prepare the rack and dam panel by inspecting mounting surfaces for cleanliness and ensuring there is unobstructed access to front knockouts and screw holes. Have the appropriate rack screws or mounting hardware ready for the installation environment.
• Mount the patch panels and connectivity devices to the dam plate using standard rack screws, aligning with panel holes and knockouts as provided by the panel. Ensure even spacing and level alignment to preserve a clean, orderly front face.
• Attach the Front-Air Dam Panel to the rack front, securing it with hardware through the designated mounting points. Tighten evenly to keep the panel flush against the rack rails while avoiding overtightening that could deformed metal or misalignment.
• Route cables behind the dam panel with care, maintaining clear air channels and preventing cable bundles from obstructing the front intake. Use cable ties or Velcro wraps to organize runs and keep the front face uncluttered for easy access and maintenance.
• Test airflow and clearance by lightly powering on equipment and observing front-to-back cooling dynamics. Confirm that there are no blocks or tight bends near the intake and that the patch panels remain accessible for servicing or replacement.
• Document the final layout for future upgrades or relocations. A well-documented rack plan saves time during audits, maintenance windows, or planned expansions and helps ensure consistent airflow performance across all mounted devices.

Frequently asked questions

• What is the purpose of the Front-Air Dam Panel Mount? It provides a dedicated front‑air dam and mounting surface for patch panels, enabling airflow control and space efficiency in wider racks.
• Does it fit standard 30"W racks? Yes, it’s designed for 30"W front sections on SNE rack systems and supports standard patch panels and connectivity devices.
• Is the panel Zero‑U or does it require RU height? The design offers a Zero‑U footprint option, allowing patch panels to be mounted without consuming additional RU height in compatible configurations.
• What materials are used? The panel is constructed from steel with a black powder coat finish for durability and a professional appearance in demanding environments.
• Are mounting hardware and patch panels included? The description references knockouts for mounting standard patch panels; verify with your supplier whether hardware is included in your purchase and plan for any additional screws or rails as needed.
