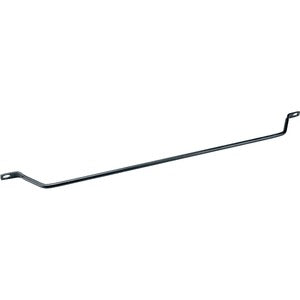

Middle Atlantic Horizontal Lacer Bars

The Middle Atlantic Horizontal Lacer Bars represent an economical, effective solution for keeping your rack-mounted cables neat, organized, and easy to access. Engineered for professional AV and IT environments, these bars are designed to streamline horizontal cable management without compromising rack space, airflow, or accessibility. Constructed with a focus on durability and reliability, the lacer bars help technicians route, segregate, and secure a variety of cables—from patch leads and interconnects to power cords and data lines—across the width of a standard rack. Available models include LBP-1.5R90, LBP-4R90, LBP-6R90 and LBP-10R90, each built around a 1/4" diameter rod and featuring a precise 90° bend that provides essential clearance for components that project beyond the rear rackrail. This combination of compact design, practical geometry, and robust construction makes Middle Atlantic lacer bars a smart choice for installers looking to improve rack organization, reduce setup time, and minimize the risk of cable stress or tangling in busy equipment rooms.

• Efficient horizontal cable management: Keep cables neatly aligned across the rack to simplify maintenance, labeling, and future reconfigurations. A well-organized cable plane reduces the chance of accidental disconnections during service and speeds up troubleshooting by making lead paths clear at a glance.
• 1/4" diameter rod construction: The bars are built from a sturdy, compact rod that provides reliable support for routine cabling loads while staying slim enough to preserve valuable rack space for equipment. The strong core helps resist bending and maintains a clean cable presentation over time.
• Flattened ends for safer handling: The flattened ends are designed to minimize snag hazards during installation and adjustments, protecting both cables and technicians as you route, position, and secure cables along the bar.
• Precise 90° bend for rear clearance: The 90-degree bend is engineered to create necessary clearance around components that extend past the rear rackrail, preventing interference with fans, modules, power distributors, and other equipment mounted toward the back of the rack.
• Multiple model options for flexible fitting: Choose from LBP-1.5R90, LBP-4R90, LBP-6R90 and LBP-10R90 to match your rack width, cable density, and installation depth. The variety ensures you can optimize spacing and cable routing in different rack configurations without overextending or crowding your system.

Technical Details of Middle Atlantic Horizontal Lacer Bars

• Model range: LBP-1.5R90, LBP-4R90, LBP-6R90, LBP-10R90
• Rod diameter: 1/4" (0.25")
• Bend: 90° angle to provide rear clearance
• End treatment: Flattened ends for safe handling and easier mounting
• Primary purpose: Horizontal cable management within standard equipment racks
• Material and construction: 1/4" diameter rod designed for durability in professional rack environments

how to install Middle Atlantic Horizontal Lacer Bars

Installing Middle Atlantic Horizontal Lacer Bars is straightforward and designed to integrate with standard rack systems. Start by selecting the appropriate model based on your rack width and the density of cables you plan to manage. Position the lacer bar horizontally along the rack’s interior, ensuring the 90° bend aligns with the space behind any components that may protrude past the rear rackrail. Use the rack’s existing mounting holes or the hardware recommended by your rack manufacturer to secure the bar firmly in place. Once mounted, begin routing cables along the bar, keeping runs clean and evenly spaced to maximize airflow and ease of future changes. Use cable ties or Velcro straps as needed to secure individual cables to the rod, avoiding sharp bends or kinks that could compromise signal integrity or cable longevity. Periodically inspect the installed lacer bars to confirm that hardware remains tight and that cables have not shifted toward components that extend beyond the rear rail. The design is intended to provide a stable, repeatable path for cables across the rack, reducing clutter and enabling quick, organized changes during maintenance or expansions.

Frequently asked questions

• Q: What are Middle Atlantic Horizontal Lacer Bars used for? A: They’re designed to horizontally manage and organize cables inside standard rack enclosures, improving accessibility, airflow, and space utilization.
• Q: Which models are available? A: The available models are LBP-1.5R90, LBP-4R90, LBP-6R90, and LBP-10R90, each featuring a 1/4" diameter rod and a 90° bend for rear clearance.
• Q: Do these lacer bars fit all racks? A: They are intended for standard 19" rack installations and are suitable for use in typical wall-mount, equipment rack, or cabinet environments where horizontal cable management is needed.
• Q: What is the benefit of the flattened ends? A: Flattened ends reduce snag hazards during installation and adjustment, making it easier to route cables without catching on sharp edges or hardware.
• Q: How should I install and secure them? A: Install the appropriate model at the desired height, align the 90° bend to provide clearance behind protruding components, and secure the bar with standard mounting hardware compatible with your rack. Then route and secure cables along the bar for a clean, orderly presentation.
