Description

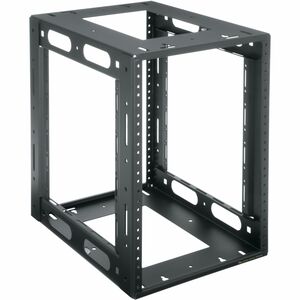

Middle Atlantic HRF Series 8RU Open-Frame Half Rack - 14in Depth
The Middle Atlantic HRF Series 8RU Open-Frame Half Rack is engineered for professional environments where space, accessibility, and reliability matter most. This compact half-rack system blends a low-profile footprint with robust open-frame construction, letting you mount and organize essential AV, IT, or telecom gear without sacrificing airflow or ease of access. With a slim width of just 10-5/8 inches and a generous 14-inch working depth, the HRF half rack maximizes usable space in equipment rooms, control rooms, studios, or classrooms while maintaining a clean, professional appearance.
Designed to accommodate half-rack equipment from a variety of manufacturers, the HRF Series half rack systems offer versatility in deployment. Whether you’re integrating compact audio processors, power distributors, small servers, network devices, or other rack-mounted hardware, this open-frame solution provides a stable, unobtrusive home for your gear. The open-frame design simplifies installation and service, enabling technicians to reach components quickly and securely. Its offset cable tie area keeps the overall width slim, allowing you to consolidate multiple units side-by-side without creating crowded wiring paths. This thoughtful cable management feature reduces clutter, improves airflow, and makes maintenance faster and less error-prone.
Beyond its physical footprint, the HRF Series emphasizes durability and modularity. The 8RU configuration gives you ample vertical space for stacking equipment while preserving a compact horizontal footprint. The open-frame steel construction delivers the strength you need to support mounted devices, even in high-demand environments, with a finish designed to resist typical shop or studio use. The result is a versatile, long-lasting solution that scales with your growing rack needs. Whether you’re outfitting a broadcast control room, an AV distribution rack, a data closet, or a home theater rack, this half rack is designed to fit in neatly and perform reliably over time.
The HRF Series stands out for its combination of form and function. Its lightweight, open design makes it easier to service and rearrange devices as your system evolves. Equipment can be inserted and removed with minimal clearance, and because the frame is open, airflow isn’t restricted—an important consideration for heat-sensitive electronics. The slim width helps you maximize rack density in confined spaces, while the 14-inch depth provides sufficient room for cabling, power strips, and small devices without extending the enclosure too far from the wall. This balance between accessibility, space efficiency, and airflow is a hallmark of Middle Atlantic’s approach to open-frame rack solutions.
For installers and technicians, the HRF 8RU Open-Frame Half Rack brings predictable, repeatable performance that simplifies project planning and ongoing maintenance. The half-rack form factor is a practical choice for equipment that doesn’t require a full 19-inch-wide rack, yet benefits from the protection and organization that a rack offers. Its compatibility with a broad range of half-rack equipment ensures you’re not boxed into a single vendor, giving you the freedom to select the best devices for your application. With a sturdy frame, intuitive cable management, and a footprint designed for real-world spaces, the HRF Series helps you deliver professional results with less effort and fewer compromises.
- Universal half-rack compatibility: Accommodates equipment from multiple manufacturers, enabling flexible system design and future upgrades.
- Compact, slim footprint: Slim 10-5/8 inch width paired with an 8RU height and 14 inch depth for efficient use of space in tight installations.
- Open-frame convenience: Provides easy access to mounted devices and unobstructed airflow for better cooling and maintenance.
- Cable management optimization: Offset cable tie area keeps cabling tidy and out of the main mounting area, reducing clutter and improving reliability.
- Durable, professional construction: Open-frame steel design delivers strength and long-term reliability in demanding environments such as studios, data closets, and control rooms.
- Rack Units (RU): 8
- Depth: 14 inches
- Width: Slim 10-5/8 inches
- Frame type: Open-frame steel construction
- Mounting compatibility: Designed to accommodate half-rack equipment from a variety of manufacturers
how to install Middle Atlantic HRF Series 8RU Open-Frame Half Rack
1) Plan your layout: Before installing devices, measure the available space and determine placement to ensure there is adequate clearance for cabling, power distribution, and cooling. Consider the weight distribution of mounted equipment and distribute heavier items toward the bottom of the 8RU space to keep the center of gravity stable.
2) Prepare the rack area: Clear the installation area and prepare any needed mounting surfaces or shelves. The HRF is an open-frame design, so it does not rely on rails for support in the same way as a full enclosure; ensure there is a sturdy surface or compatible rails if your installation requires additional support.
3) Arrange equipment: Lay out half-rack devices in the intended order, taking into account heat generation and cable routing. Take into account the 14-inch depth to avoid protruding cables or devices beyond the back of the rack. Group related devices together to simplify power and data cabling and to improve maintenance workflows.
4) Install devices: Use standard mounting hardware compatible with half-rack equipment (typical hardware such as 10-32 or 12-24 screws, washers, and appropriate mounting patterns) to secure devices to the open-frame structure. Tighten screws uniformly to avoid warping or misalignment, and verify that each device is firmly seated without restricting airflow.
5) Route and manage cables: Position power, data, and audio cables through the offset cable tie area to maintain a clean, organized appearance and to preserve the available open space in front of the equipment. Use cable ties or Velcro straps to bundle cables logically, minimize tangles, and facilitate quick service in the future. Leave a small margin of slack for maintenance or future reconfiguration.
6) Verify airflow and clearance: Ensure there is adequate space around devices for heat dissipation. Avoid blocking vents or placing devices directly against the rack walls where airflow could be restricted. If needed, stagger devices or add small fans in the environment to support efficient cooling and prevent thermal throttling of sensitive equipment.
7) Final checks and testing: Double-check all mounting hardware, cable connections, and power distribution. Power on the equipment incrementally to confirm proper operation and to identify any wiring or hub issues early in the deployment. Once everything is confirmed, document the layout for future maintenance and upgrades.
Frequently asked questions
Q: What equipment fits in the HRF Series 8RU Open-Frame Half Rack?
A: The HRF Series is designed to accommodate half-rack equipment from a variety of manufacturers. It provides an 8RU vertical space and a 14-inch depth, with a slim 10-5/8 inch width to maximize usable rack area for compatible devices.
Q: Does this open-frame half rack include mounting rails or hardware?
A: The description focuses on the open-frame design and compatibility with half-rack equipment. Mounting rails are typically not included with open-frame units and may require purchasing compatible rails or mounting hardware separately, depending on your installation needs and the specific devices you plan to mount.
Q: How does the offset cable tie area benefit installation?
A: The offset cable tie area is designed to keep the overall width slim while still providing space to manage and organize cables. This helps reduce clutter, improves airflow, and makes maintenance and future reconfigurations faster and easier.
Q: Is the HRF open-frame suitable for high-heat environments?
A: Open-frame designs emphasize airflow and accessibility, which generally supports better cooling for mounted devices. However, the suitability for high-heat environments depends on the specific equipment installed and the ambient room conditions. Proper cooling and ventilation should be considered in any installation.
