Description

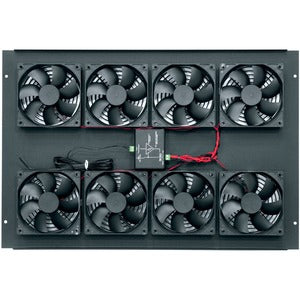

Middle Atlantic IBGR-552FT-FC Fan Tray
Engineered for professional rack cooling, the Middle Atlantic IBGR-552FT-FC Fan Tray delivers dependable, high‑volume airflow exactly where you need it. This top‑mounted unit houses eight precision fans, moving a robust 552 CFM to keep densely packed equipment at safe operating temperatures. With a quiet 38 dBA noise footprint, it blends powerful cooling with unobtrusive operation—ideal for data centers, AV setups, server rooms, and studio racks. The integrated controller brings convenience and protection to your environment with settable control points and alarms, so you can tailor cooling performance to your specific load and be alerted to potential airflow or temperature issues before they impact equipment life. Finished in a durable black, this fan tray is built to withstand demanding rack environments and integrates smoothly with Middle Atlantic’s renowned rack systems.
- Eight mounted fans for high airflow: A top‑mounted configuration with eight fans delivers a total of 552 CFM, ensuring consistent cooling across multi‑rack deployments and hot spots with heavy heat load.
- Low noise operation: Despite its high cooling capacity, the IBGR-552FT-FC maintains a quiet 38 dBA sound profile, making it suitable for environments where low ambient noise is important.
- 220V input voltage: Designed to work with standard professional power infrastructure, enabling reliable power delivery for all eight fans and the integrated controller.
- Top‑mounted design for flexible cooling: The top‑mounted fan tray fits into a variety of rack configurations, delivering efficient air movement directly to equipment located beneath.
- Integrated controller with setpoints and alarms: Included controller allows you to set cooling thresholds and receive alarms, helping you prevent overheating and extend the life of critical equipment.
Technical Details of Middle Atlantic IBGR-552FT-FC
- Model: IBGR-552FT-FC
- Configuration: Top-mounted, 8 fans
- Airflow: 552 CFM total
- Noise level: 38 dBA
- Input voltage: 220V
- Finish/color: Black
- Controller: Included with settable control points and alarm
- Application: Rack cooling for IT, AV, and professional installations
How to install Middle Atlantic IBGR-552FT-FC
- Prepare the installation area: Ensure there is adequate clearance above the rack for the top‑mounted fan tray and provision a stable 220V power source for the unit and its controller.
- Power down equipment: Before installation, shut down and unplug all equipment in the rack to avoid electrical or thermal stress during mounting.
- Position and secure: Place the IBGR-552FT-FC on top of the rack or in the designated top area per your cabinet configuration. Align mounting holes and secure the unit with the appropriate screws or hardware provided by Middle Atlantic or your rack system.
- Connect power and controls: Plug the unit into a 220V power source and connect the controller as directed in the user manual. Ensure any cables are neatly routed and do not obstruct airflow.
- Configure cooling setpoints and alarms: Use the built‑in controller to set your desired temperature and/or fan speed thresholds. Enable alarms to receive notifications if airflow drops or temperatures rise beyond your configured limits.
- Verify operation: Power the rack back up and confirm all eight fans are operating. Check for proper airflow across installed equipment and test alarm indicators to ensure the system responds as configured.
- Monitor and adjust: After initial testing, monitor temperature and airflow during normal operation and peak loads. If needed, fine‑tune the controller settings to balance cooling efficiency with noise and energy use.
Frequently asked questions
- What does the IBGR-552FT-FC include? It is a top‑mounted fan tray with eight fans and an integrated controller that offers settable control points and alarm functionality for proactive cooling management.
- How much airflow does it provide? The unit delivers a total airflow of 552 CFM across all eight fans, designed to push air through densely packed equipment and hot spots.
- What is the noise level? The IBGR-552FT-FC operates at approximately 38 dBA, offering strong cooling without excessive noise in the surrounding environment.
- What voltage is required? The fan tray operates on 220V input voltage, suitable for professional electrical installations and data/AV environments.
- Is installation difficult? With standard mounting hardware and a straightforward controller, installation is typically straightforward for professionals familiar with rack systems. Always follow the included installation guide and use proper safety procedures when working with electrical equipment.
