Middle Atlantic IFTA-3 Fan Tray

Middle AtlanticSKU: 5541688

Price:
Sale price$540.00

Description

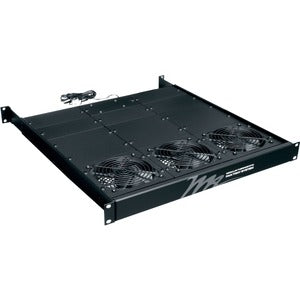

Middle Atlantic IFTA-3 Fan Tray

The Middle Atlantic IFTA-3 Fan Tray is a modular cooling solution designed to optimize airflow over hot equipment inside 19" racks. By placing quiet 4" DC fans directly above vents, it accelerates hot air movement toward exhaust paths, helping to prevent heat buildup that can throttle performance or shorten component life. This fan tray is engineered for flexible deployment across a range of rack configurations, enabling you to tailor cooling to your gear’s heat signature with precision and ease.

  • Optimize rack cooling with a versatile fan strategy: the IFTA-3 accommodates from 3 to 8 quiet 4" DC fans (69 CFM per fan), positioned above vents on hot equipment to get hot air moving in the right direction where it’s most effective.
  • Eight mounting positions plus optional add-on fans give you precise control over where airflow is needed most, letting you target hotspots and balance cooling across multiple components within a single rack.
  • High-visibility, simple customization: configure the tray to your exact cooling requirements, mix and match fan counts, and reconfigure as equipment stacks evolve without replacing the entire system.
  • Designed for seamless integration in standard rack environments: compatible with 19" rack rails, built from sturdy materials, and engineered to operate with minimal noise to preserve a calm control-room or AV environment.
  • Maintenance-friendly and serviceable: modular design allows easy fan replacement or expansion, reducing downtime and simplifying routine upkeep in busy installations.

Technical Details of Middle Atlantic IFTA-3 Fan Tray

  • Designed to support 3 to 8 x 4" DC fans, with each fan delivering up to 69 CFM for robust airflow.
  • Eight fan mounting positions provide flexible placement to align airflow with vents and heat sources across the rack.
  • Fan tray is intended to position fans directly above vents on hot equipment, maximizing cooling efficiency by guiding heat away from components and toward rack exhaust.
  • Modular, expandable design supports optional add-on fans to scale cooling as equipment density increases or changes.
  • Optimized for use within standard 19" rack systems, allowing for streamlined integration into existing rack layouts and workflows.

How to Install Middle Atlantic IFTA-3 Fan Tray

Installing the IFTA-3 Fan Tray is a straightforward process designed to minimize downtime and maximize cooling efficiency. Follow these general guidelines to implement effective airflow in your rack environment:

  • Assess your gear’s heat profile: identify the hottest equipment and the racks that generate the most heat. Plan fan placement using the eight mounting positions to direct airflow precisely where it’s needed most. Consider whether you will run 3, 4, 5, 6, 7, or 8 fans based on the heat load and available space in your cabinet.
  • Prepare the rack: clear the rack area around the intended fan tray location. Ensure the mounting rails can support the tray and that there is access for cable routing and serviceability.
  • Mount the tray: install the IFTA-3 into the rack frame using the appropriate hardware. Align the tray so that the fans’ intake areas align with the planned positions above the vents. Secure firmly to minimize vibration or movement during operation.
  • Install and connect fans: if you are adding fans, place them in the designated mounting positions. Connect each fan to the tray’s power bus or your DC power distribution as per your system design. Maintain consistent polarity and verify that all fans are oriented to move air toward the exhaust or through the vented path as intended.
  • Configure airflow and test: power on the system and observe each fan’s operation. Confirm that air moves over the hottest components and exits efficiently through the rack’s exhaust. Listen for excessive vibration or noise and adjust mounting or fan count if needed to optimize performance.
  • Verify maintenance procedures: document the fan count and positions for future reference. Establish a routine to clean dust from fans and vents and to check for wear or degradation in the DC fans. Replace any failed fans promptly to maintain effective cooling.
  • Safety and compliance: follow all manufacturer guidelines for electrical connections and ensure that all wiring is neatly organized to prevent interference with airflow or rack doors. Ensure redundancy options are considered if uptime is critical.

Frequently Asked Questions

  • Q: How many fans can the IFTA-3 accommodate? A: The unit is designed to use from 3 to 8 quiet 4" DC fans, offering flexible configurations to match your cooling needs. Eight mounting positions support optimal placement and expansion with optional add-on fans.
  • Q: What size fans does the IFTA-3 use? A: The tray is configured for 4" DC fans, selected for a balance of airflow (CFM) and quiet operation suitable for rack environments.
  • Q: Will the IFTA-3 fit in a standard 19" rack? A: Yes. The fan tray is designed to integrate with standard 19" rack systems, allowing for straightforward installation within existing enclosures.
  • Q: How is airflow directed for maximum cooling? A: Fans are positioned directly above vents on hot equipment, with airflow oriented toward the rack exhaust to move hot air away from critical components effectively.
  • Q: Is maintenance or replacement difficult? A: No. The IFTA-3 features a modular design with easy-to-access mounting points and removable fans for quick replacement or expansion, minimizing downtime during service.
