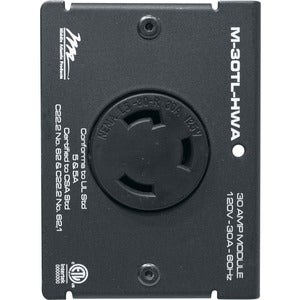

Middle Atlantic MPR Module, 30 A, Twistlock, L5-30R, Hardwired
Elevate your professional rack setup with the Middle Atlantic MPR Module. Designed for seamless integration into MPR Series raceways, this 30-amp power module delivers reliable, high-demand power in a compact, rugged package. The twistlock L5-30R receptacle provides a secure, vibration-resistant connection ideal for studio environments, control rooms, post-production suites, and broadcast facilities. With a hardwired input and a steel construction finished in a black textured powder coat, this module combines durability, safety, and modularity—perfect for modular power distribution that scales with your workflow. Whether you’re building out a new rack or upgrading an existing system, the MPR Module offers an efficient, code-compliant solution to power your essential equipment while keeping cabling organized and protected.
- 30 A capacity at 115 V: This module is engineered to handle high-demand devices and power-hungry equipment, providing robust performance for power-hungry AV, editing workstations, lighting rigs, and other professional gear.
- Twistlock L5-30R receptacle: The locking twist-lock design ensures a secure connection that resists accidental dislodgement during operation, transport, or when equipment is moved within the rack.
- Hardwired input with strain relief: A clean, streamlined connection minimizes cable clutter inside the rack while meeting safety and code requirements for fixed installations.
- Rugged steel construction with black textured powder coat: Built for long-term use in demanding environments, resisting impact, corrosion, and wear while maintaining a professional aesthetic.
- MPR Series raceway compatibility: This module is purpose-built for modular power distribution in Middle Atlantic’s MPR Series, enabling flexible configuration and scalable power solutions for growing rack deployments.
Technical Details of Middle Atlantic MPR Module, 30 A, Twistlock, L5-30R, Hardwired
- Rating: 30 Amps, suitable for 115 V input applications.
- Input configuration: Hardwired input with strain-relieved connection for clean installation.
- Output receptacle: NEMA L5-30R twist-lock receptacle (30 A rated).
- Construction: Steel chassis with a black textured powder coat finish for durability and a professional appearance.
- Compatibility: Specifically designed for use with Middle Atlantic MPR Series raceways to enable modular, scalable power distribution.
- Connectivity: 1 x Hardwired input, 1 x NEMA L5-30R output module configuration.
- Intended use: Ideal for broadcast studios, post-production facilities, theaters, and AV installations requiring secure, high-current power distribution within a rack system.
How to Install Middle Atlantic MPR Module, 30 A, Twistlock, L5-30R, Hardwired
- Before you begin, power off the equipment and verify that the MPR raceway is de-energized. Confirm compatibility with your existing MPR Series components and plan the module’s placement within the rack layout for optimal cable management.
- Remove the module enclosure or access panel as required by your MPR system instructions. Ensure you have all necessary mounting hardware and strain-relief components aligned with the module’s mounting points.
- Connect the hardwired input lead to the distribution circuit using appropriately rated conductors. Route the input cable through the strain-relief to protect against movement, tension, and flexing that could compromise the connection.
- Mount the MPR Module into the MPR raceway slot, aligning it with the system’s standard mounting pattern. Secure the module to the raceway using the provided fasteners, ensuring a snug, vibration-resistant fit.
- Attach the NEMA L5-30R twist-lock receptacle to the module’s output. Confirm that the receptacle aligns properly with the raceway surface and that the twist-lock connector engages smoothly without binding.
- Re-inspect all electrical connections and tighten any loose fittings. Reinstall any access panels or covers according to the MPR system guidelines. Power on the system and test the receptacle by connecting a compatible load to verify proper operation and lock engagement.
- Document the installation details for maintenance and inspections. Label the circuit, record the module’s location in the MPR configuration, and store any warranty or part information for future reference.
Frequently asked questions
- Q: What is the primary purpose of the Middle Atlantic MPR Module? A: It provides a dedicated 30 A power distribution point within an MPR Series raceway, using a hardwired input and a NEMA L5-30R twist-lock receptacle for secure, high-current power delivery to equipment in professional AV and broadcast environments.
- Q: What applications is this module best suited for? A: The MPR Module is ideal for studios, post-production suites, control rooms, theaters, and other settings where modular, scalable rack power distribution is required and where equipment safety and reliable connections are critical.
- Q: What voltages and currents does it support? A: It supports 115 V input with a 30 A capacity, making it suitable for high-demand equipment while maintaining standard line voltage compatibility for most AV gear in rack installations.
- Q: How does the twist-lock L5-30R receptacle improve safety? A: The twist-lock design provides a secure, locking connection that resists accidental unplugging and reduces the risk of loose or intermittent power connections during operation or transport.
- Q: Is this module compatible with other brands of raceways? A: This module is designed for Middle Atlantic’s MPR Series raceways and is optimized for compatibility within that ecosystem to ensure reliable modular power distribution.
- Q: What maintenance or inspections are recommended? A: Periodic visual inspections for wear, corrosion, and tightness of mounting hardware are recommended, along with testing the receptacle function during routine rack checks to ensure ongoing reliability.
