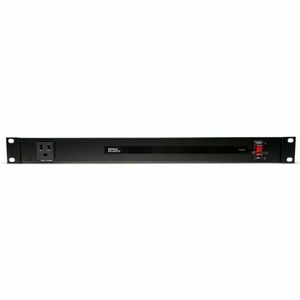

Middle Atlantic PD Series Rack Mounted Power Distribution Unit - 15 Amp, 9 Outlet PDU

Power your rack with the PD Series rack-mounted power distribution unit, a purpose-built solution for AV applications. This 15-amp, 9-outlet PDU delivers reliable, centralized power while protecting connected devices from surges and electrical noise through built-in EMI filtering. Designed for professional environments, it helps you keep your AV system focused on delivering an exceptional experience rather than wrestling with cabling and power management. With robust construction and rack-ready integration, the PD Series is the smart choice for clean, organized power distribution in control rooms, studios, and venues where performance matters.

• Surge protection and EMI filtering: The PD Series provides built-in surge protection to guard your critical AV gear against voltage spikes. Coupled with EMI/RFI filtering, it minimizes electrical noise that can degrade video, audio, and control signals, helping you maintain pristine AV performance even in challenging power environments.
• Nine outlets for flexible distribution: Centralize power across your AV rack with nine outlets in a single compact unit. This layout supports a wide range of devices—from AV receivers and projectors to processors and small monitors—while enabling tidy cable management and easier remote troubleshooting.
• Rack-mounted, 19-inch chassis: Built to integrate neatly into standard 19-inch racks, the PD Series offers a professional, space-saving solution for organized AV installations. Durable mounting hardware ensures secure placement, reducing movement and wear in busy racks found in studios, venues, and production suites.
• 15 Amp capacity for reliable performance: Designed to handle multiple AV devices without overloading typical rack power circuits, the PD Series provides ample headroom for peak demand scenarios. It helps prevent nuisance outages during high-usage moments, so your presentations, shoots, and performances stay uninterrupted.
• Durable, AV-focused design: Engineered for demanding environments, this PDU combines rugged construction with practical features that AV professionals appreciate. Its sturdy build, clean aesthetics, and straightforward installation support reliable, long-term operation in control rooms, racks, and during live events.

Technical Details of Middle Atlantic PD Series Rack Mounted Power Distribution Unit

• Power rating: 15 A, typical nominal input voltage around 120 V for North American installations
• Outlets: 9 outlets for comprehensive device coverage across the AV rack
• Protection: Built-in surge protection and EMI/RFI filtering to reduce electrical noise and safeguard connected gear
• Form factor: Rack-mounted 19-inch chassis designed to fit standard equipment racks
• Application: Optimized for professional AV and entertainment systems, including digital video, audio processors, displays, and ancillary gear
• Mounting hardware: Includes rack-mounting rails and screws for secure installation in most 19-inch racks

How to install Middle Atlantic PD Series Rack Mounted Power Distribution Unit

Installing the PD Series PDU is a straightforward process that supports clean, dependable power distribution in professional AV setups. Begin by planning your rack layout and power strategy, ensuring ample space for airflow and easy access to all outlets. Safety is paramount—power down the rack and unplug any connected devices before mounting or cabling. Use the included mounting hardware to secure the PDU to the rack rails, choosing a location that keeps outlets accessible while avoiding interference with fans, heat vents, or data cables. A neat, organized cabling plan improves both performance and maintenance, making future upgrades or reconfigurations simple and quick.

• Step 1 — Prepare the rack: Clear the rack space where the PDU will live, verify the rails are clean, and confirm that there is adequate clearance in front of and behind the rack for airflow and access to the outlets.
• Step 2 — Mount the PDU: Align the PDU with the 19-inch mounting rails and install the included hardware to secure it firmly. Ensure the unit sits level and does not interfere with neighboring equipment or shelving.
• Step 3 — Route and label cables: Plan a tidy cable path from each device to its corresponding outlet. Use cable ties or Velcro to bundle power cords, keeping data cables separate where possible to reduce interference and improve airflow.
• Step 4 — Connect to power: Plug the PDU into a suitable power source that matches its nominal voltage (commonly 120 V in North America) and confirm the main supply can handle the total connected load without tripping breakers.
• Step 5 — test and verify: Power on the rack and verify that all nine outlets are delivering power to their connected devices. Check indicators or LEDs for proper operation and ensure surge protection and EMI filtering are functioning as expected.
• Step 6 — document and maintain: Label each outlet by device category (e.g., displays, encoders, amplifiers) to simplify future changes. Periodically inspect the PDU for dust, secure mounting, and proper venting to keep performance consistent.

Frequently asked questions

• Q: What is the PD Series PDU designed for? A: It is a rack-mounted power distribution unit designed specifically for AV applications, offering surge protection and EMI filtering to safeguard multiple devices from a single power source.
• Q: How many outlets does this PDU have? A: The PD Series unit features 9 outlets, allowing you to power a broad range of AV gear from one centralized location.
• Q: What is the amperage rating? A: The unit is rated for 15 Amps, providing ample capacity for typical professional AV racks without overloading common circuit breakers.
• Q: Is it compatible with standard 19-inch racks? A: Yes. The PD Series PDU is designed for standard 19-inch equipment racks, enabling a clean, professional installation in studios, control rooms, theaters, and venues.
• Q: Does it offer surge protection? A: Yes. Built-in surge protection, along with EMI/RFI filtering, helps shield connected devices from voltage spikes and electrical noise that can affect AV performance.
• Q: Can I install this myself or should I hire a professional? A: For most standard rack installations, with basic electrical safety precautions, a competent technician can install the PDU. If you’re mounting in a high-access or critical environment, consulting AV or electrical professionals is advisable for optimal cable management and safety.
