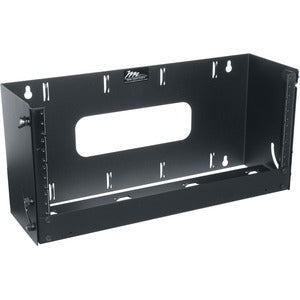

Middle Atlantic Pivoting Panel Mount – Steel, Black, 4U Rack Height

Discover the Middle Atlantic Pivoting Panel Mount, a rugged steel solution crafted for professional environments where durability, accessibility, and clean cable management matter. Designed for 19" rack systems, this black-finish pivoting panel mount blends industrial strength with streamlined operation, enabling technicians and engineers to access rear ports, cables, and connectors without removing equipment. With a compact 4U rack height and precise external dimensions, it fits neatly into standard enclosures, making it ideal for studios, post-production suites, broadcast rooms, and live-event rack installations. The pivoting design accelerates servicing, simplifies upgrades, and keeps gear organized under demanding workloads.

• Sturdy steel construction with a durable black finish — Built to endure daily use in busy racks, the steel frame resists dents and wear, while the black powder coat maintains a professional appearance and helps conceal fingerprints in high-traffic environments.
• Pivoting panel design for effortless access — Swing the panel open to reach rear ports, cables, and connectors without removing equipment, enabling fast diagnostics, reconfigurations, and routine maintenance while keeping gear protected when closed.
• Compact 4U rack height with precise dimensions — Occupies 4U of rack space with external measurements of 9.3" H x 19.7" W x 6" D, ensuring compatibility with standard 19" enclosures and leaving room for cable management and ventilation.
• Efficient space planning and cable management — Centralizes mounting for patch panels, distribution gear, and related modules, reducing clutter, improving airflow, and making labeling and servicing straightforward in busy rack rooms.
• Professional-grade for studios, broadcasting, and events — Built to support demanding workflows, this mount delivers reliable performance, fast access during setup and maintenance, and a clean, organized rack appearance for client-facing environments.

Technical Details

• Material: Steel
• Finish: Black
• Rack Height: 4U
• External Dimensions: 9.3" H x 19.7" W x 6" D
• Mounting Type: Pivoting Panel Mount for 19" racks
• Usage: Suitable for mounting 19" equipment panels, patch panels, and related gear

How to install Middle Atlantic Pivoting Panel Mount

Follow these steps to install and configure your pivoting panel mount for optimal performance and reliability in a standard 19" rack:

• Prepare the rack space by ensuring the mounting surface is clean, level, and free of obstructions. Confirm that the 19" rails align with your rack's vertical standards to prevent skew during installation.
• Unpack the pivoting panel mount and verify all hardware is present. Gather the necessary tools (typically a screwdriver or torque-limiting driver) and confirm you have the appropriate screws and spacers for your rack depth and equipment load.
• Attach the pivoting panel mount to the rack posts or rails using the supplied hardware. Tighten screws evenly to avoid misalignment; lightly torque to prevent stripping, then verify square alignment with the rack frame.
• Slide the panel mount into the desired depth within the rack. Check for clearances around connectors, handles, and any adjacent gear; adjust as needed before final tightening.
• Mount your panels, patch panels, or other equipment onto the pivoting frame. Route cables neatly along the sides and back, securing them with ties or Velcro to prevent binding during pivot motion.
• Connect power and signal cables as required, ensuring sufficient slack to accommodate full pivot motion without stressing connectors or strain-relief points.
• Test the pivot action by swinging the panel to its maximum accessible angle. Confirm smooth operation, absence of interference with nearby components, and secure engagement in the closed position.
• Perform a final cable-management check. Verify airflow around mounted gear and adjust cable routes as needed to maintain cooling performance and ease of service access.

Frequently asked questions

• Q: What is the material and finish of the Pivoting Panel Mount? A: It uses durable steel with a black finish designed for rugged, professional use in 19" rack systems.
• Q: What rack height does this mount occupy? A: The unit is 4U tall, making it suitable for standard 19" racks while leaving room for cables and airflow.
• Q: What are the overall dimensions? A: External dimensions are 9.3" in height, 19.7" in width, and 6" in depth, helping you plan clearance and compatibility with nearby components.
• Q: Is it compatible with standard 19" equipment? A: Yes. It is designed for standard 19" rack equipment, including patch panels, distribution gear, and related modules, with a pivot mechanism to enhance accessibility.
• Q: How is it installed? A: Installation uses standard 19" rack hardware and the included mounting screws. Ensure rails are level, align the mount properly, and tighten securely. Follow the steps in the installation guide for best results.
