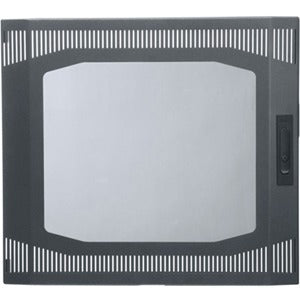

Middle Atlantic Plexi Vented Front Door for 7 RU DTRK Racks

Protect and showcase your rack-mounted equipment with the Middle Atlantic Plexi Vented Front Door, specifically engineered for 7 RU DTRK racks. This sturdy steel-framed front door blends security, airflow, and a sleek gray finish to seamlessly integrate with your DTRK enclosure. The Plexiglass vented panel provides full visibility into status indicators and equipment while maintaining intrusion resistance and dust defense. With a locking swing handle, you gain controlled access, reducing the risk of accidental interference and tampering while optimizing airflow for reliable performance in AV, IT, and broadcast environments.

• Locking security with convenient access: A robust locking swing handle secures your doorway, giving you peace of mind that sensitive equipment stays protected when the rack is unattended or in high-traffic spaces.
• Plexiglass vented front door for airflow and visibility: The vented Plexiglass design promotes optimal airflow through the rack, helping maintain cooler temperatures for critical gear while enabling quick visual inspection of LED indicators without removing the door.
• 7 RU DTRK compatibility and precise fit: Engineered to fit Middle Atlantic 7U DTRK racks, ensuring a snug, secure latch and smooth operation without gaps or alignment issues that could compromise airflow or security.
• Gray finish matches DTRK racks for a cohesive look: The door’s gray finish is designed to blend with DTRK enclosures, delivering a professional, uniform appearance across your rack system.
• Easy installation and maintenance: Designed for quick replacement of standard front doors on DTRK racks, the Plexi vented door simplifies upgrades and maintenance, reducing downtime for service or reconfiguration.

Technical Details of Middle Atlantic Plexi Vented Front Door, 7 RU DTRK racks

• Rack height compatibility: 7U (7 RU) DTRK racks
• Material: Steel frame with Plexiglass vented front door
• Finish: Gray, designed to match DTRK racks
• Door type: Plexi vented front door with locking swing handle
• Dimensions: Height 14.1 inches, Width 21.4 inches, Depth 1.5 inches
• Locking mechanism: Locking swing handle for secure access
• Compatibility note: Intended to replace standard front door on Middle Atlantic DTRK enclosures

How to Install Middle Atlantic Plexi Vented Front Door, 7 RU DTRK racks

Before you begin, ensure you have the correct replacement door for your DTRK rack model and that the rack is free of heavy equipment that could impede installation. Power down any active equipment if required and follow local safety guidelines for rack systems. The installation process is designed to be straightforward and to preserve the integrity of your enclosure while delivering secure access and robust ventilation.

Step 1: Prepare the rack and door components. Verify that the 7 RU DTRK rack is empty or that any modules you are working around have stable, clear spaces. Confirm that you have the appropriate mounting hardware and that the hinges or latching points align with the rack’s mounting brackets. If you are replacing an existing door, remove the old door carefully, keeping track of screws or fasteners that may be reused.

Step 2: Align the Plexi vented door with the rack opening. Position the door so that the hinges engage with the corresponding mounting points or hinges on the rack frame. Make sure the vented Plexiglass panel faces outward for visibility and airflow, and that the door can swing open and closed without obstruction by cables or equipment behind the rack.

Step 3: Secure the door in place. Attach the door using the supplied hardware, tightening screws or fasteners evenly to ensure a snug fit. Avoid over-tightening, which could warp the frame or stress the Plexiglass panel. Check that the door opens smoothly and closes securely with the locking swing handle engaged. Verify that the latch seats properly and does not bind against the rack frame.

Step 4: Test airflow and clearance. With the door in place, confirm that the vented panel allows for unobstructed airflow across the rack depth and that cables and accessories do not press against the front panel. Ensure that ventilation slots are not blocked by door alignment or mounting hardware. If you notice any interference, recheck the alignment and tighten hardware as needed.

Step 5: Functionality test and final adjustments. Power on the equipment inside the rack and observe temperature indicators or cooling behavior. Open and close the door to confirm smooth operation of the locking mechanism and verify that the swing handle engages securely. Confirm that the door’s finish matches and visually integrates with the DTRK rack for a cohesive installation. Keep the cabinet area tidy to preserve airflow and minimize dust buildup.

Pro tips for optimal performance: Regularly inspect the vented front door for any signs of wear or damage to the Plexiglass, hinges, or locking mechanism. Clean the door surface with a soft cloth and mild cleaner that is safe for Plexiglass to maintain visibility and airflow. If your environment experiences high dust levels, consider periodic maintenance to ensure vents remain unobstructed. When upgrading or reconfiguring gear, keep a log of door usage and any access concerns to streamline future maintenance.

Frequently asked questions

• Q: Is the Plexi Vented Front Door compatible with all 7RU DTRK racks from Middle Atlantic?
• A: It is designed to fit Middle Atlantic 7U DTRK racks and is intended as a direct replacement for the front door on those enclosures. For non-DTRK models, verify dimensions and mounting compatibility before purchase.
• Q: Does the door provide secure access for authorized personnel only?
• A: Yes. The front door features a locking swing handle that can be secured to restrict access to authorized technicians and operators, helping protect sensitive gear from tampering.
• Q: Will the vented Plexi door interfere with cooling performance?
• A: No. The vented front door is designed to maximize airflow while providing visibility into equipment status. The venting supports good thermal management when installed on compatible 7 RU DTRK racks.
• Q: What are the physical dimensions of the door?
• A: The door measures 14.1 inches in height, 21.4 inches in width, and 1.5 inches in depth, matching the standard footprint for 7U DTRK rack configurations.
• Q: How do I maintain the door’s finish and Plexiglass?
• A: Wipe the door with a soft, non-abrasive cloth and a mild cleaner suitable for Plexiglass to preserve clarity and finish. Avoid harsh solvents that could affect the material or the locking mechanism over time.
