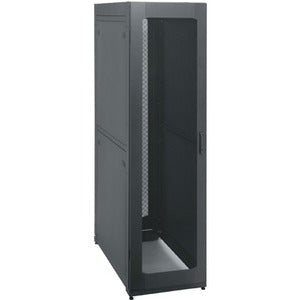

Middle Atlantic SNE Series Rack SNE24H-4242-A2

The SNE24H-4242-A2 from Middle Atlantic is a purpose-built hybrid rack designed to streamline complex security deployments that blend analog and digital equipment. Engineered for flexibility, this enclosure combines robust mechanical design with thoughtful interior layout to support encoders, power supplies, access control systems and other compact devices in a single, secure footprint. Featuring the patented Zero-U Tool-Free Lever Lock system, the SNE24H-4242-A2 makes installation faster, maintenance easier, and cable management cleaner, so you can deploy, access, and service gear without compromising performance or aesthetics.

• Hybrid-ready design for mixed equipment — The SNE Series is purpose-built to accommodate a mix of analog and digital components in one enclosure. Its interior is optimized for a clean, scalable arrangement of small-form devices, allowing you to consolidate security hardware without sacrificing accessibility or airflow.
• Zero-U Tool-Free Lever Lock for fast access — A standout feature of the SNE24H-4242-A2 is the patented Zero-U Tool-Free Lever Lock system. This mechanism lets technicians release front-access panels and mounting rails without occupying valuable 1U vertical space, enabling rapid equipment swaps and simplified service procedures.
• Secure, durable construction — Built with rugged steel and finished for durability, the enclosure is designed to stand up to the demands of service rooms, data centers, or secure facilities. The included security hardware along with fade-resistant finishes helps protect sensitive gear while preserving a professional, low-profile look.
• Efficient cable management and airflow — The rack is engineered to maintain clean routing paths for power and data cables, with integrated channels and routing options that minimize clutter. Thoughtful venting and modular rail placement support reliable cooling and neat, repeatable installations.
• Flexible mounting options and broad compatibility — Designed to work with standard 19-inch equipment, the SNE24H-4242-A2 supports a wide range of accessories and rails, and can be configured for wall-mount, floor-standing, or constrained spaces where security enclosures are required. It’s a versatile choice for installers who demand adaptability.

Technical Details of SNE24H-4242-A2

• Series: SNE Hybrid Series
• Model: SNE24H-4242-A2
• Application: Hybrid security systems combining analog and digital devices
• Front access: Lever-lock panel and removable front rails for quick device changes
• Construction: Heavy-gauge steel with durable powder-coat finish
• Mounting compatibility: Standard 19-inch equipment rails; supports multiple installation configurations
• Ventilation: Designed for effective airflow with strategically placed vents and clearance
• Locking system: Patented Zero-U Tool-Free Lever Lock for fast, tool-free access without occupying rack space
• Finish: Fade-resistant, smooth powder coat suitable for professional environments

How to Install SNE24H-4242-A2

Installing the SNE24H-4242-A2 is a straightforward process designed to minimize downtime and maximize uptime. Before you start, confirm you have compatible 19-inch equipment and the appropriate mounting rails for the hybrid devices you plan to house. Position the rack in your chosen location, ensuring there is adequate clearance for front-door access, rear cabling, and airflow. The Zero-U Tool-Free Lever Lock system enables you to quickly access the interior, place devices, and route cables with minimal disruption.

Step 1: Prepare the enclosure and rails. Inspect the rack for any shipping damage and verify all hardware is present. Attach the front and rear mounting rails according to the provided specifications, ensuring rails are level and securely fastened. If you’re mounting the rack in a fixed position, consider wall- or floor-mount options as dictated by your installation site.

Step 2: Install devices. Begin with the heaviest components at the bottom to maintain a stable center of gravity. Use standard 19-inch chassis rails to secure encoders, power supplies, access control boards, and other small devices. The Zero-U Lever Lock system lets you position rails without occupying rack space, making it easier to snap devices into place without wrestling with screws in tight spaces.

Step 3: Route power and data cables. Plan a clean cable hierarchy that keeps power cables separate from data lines to minimize interference. Use cable management channels and ties to secure bundles, and leave enough slack behind the front panel for service loops. Proper separation helps with airflow and reduces the risk of accidental disconnections during maintenance.

Step 4: Verify accessibility and airflow. Ensure front doors and removable panels operate smoothly with the Lever Lock engaged and disengaged. Check that airflow is not obstructed by devices or cabling. If you require rear access for servicing or upgrades, the design supports rear cable paths and service access without disassembling the entire rack.

Step 5: Test and document. Power on connected devices and verify proper operation across analog and digital components. Document device locations, cable assignments, and any special configurations so future upgrades or troubleshooting can be performed quickly. Regular maintenance schedules will help preserve performance and extend the lifespan of the enclosure and its contents.

Step 6: Finalize security and maintenance plans. If your installation includes sensitive equipment, engage the lever-lock system to secure the front panel and deter unauthorized access. Schedule periodic inspections to confirm hardware integrity, tighten rails when necessary, and replace any worn components to sustain a reliable hybrid rack environment.

Frequently asked questions

• Q: What kinds of devices can fit in the SNE24H-4242-A2?

  A: The SNE24H-4242-A2 is designed to accommodate a mix of compact analog and digital equipment, including encoders, power supplies, and access control systems, using standard 19-inch mounting hardware. It’s optimized for small-form devices, enabling you to consolidate multiple functions in one enclosure.

• Q: How does the Zero-U Tool-Free Lever Lock work?

  A: The patented Zero-U Lever Lock allows front-panel access and rail adjustments without occupying any 1U vertical space. It simplifies service, facilitates rapid gear changes, and reduces downtime during maintenance while maintaining a secure enclosure when locked.

• Q: Is the enclosure suitable for wall-mount or floor-standing installations?

  A: The SNE series is designed for flexible deployment and supports various installation configurations, including wall-mount and freestanding arrangements. Always verify site constraints, including space, ventilation, and accessibility, when selecting mounting options.

• Q: What about cable management and cooling?

  A: The enclosure features integrated cable management paths and ventilation considerations that promote tidy routing and effective airflow. Proper cable separation and routing help maintain reliable operation in hybrid environments where heat and interference can impact performance.

• Q: How do I ensure long-term reliability of the SNE24H-4242-A2?

  A: Rely on the rugged construction, powder-coated finish, and secure locking system to protect equipment. Regular inspections, secure mounting, orderly cabling, and adherence to load recommendations will help preserve performance and extend the life of the enclosure and the devices it houses.
