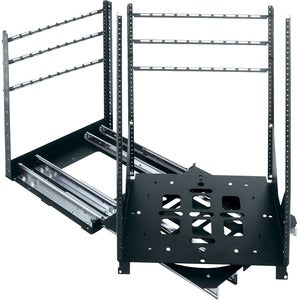

Middle Atlantic SRSR Series 18RU Slide Out Rotating Rail System

The Middle Atlantic SRSR Series 18RU Slide Out Rotating Rail System is purpose-built for professional environments where reliable rack performance and effortless gear access are non-negotiable. With a sturdy 18U rack height and 19" rack width, this black steel rail system delivers serious capacity and durable construction for AV, IT, and networking equipment. Designed to maximize space in dense rack rooms, control suites, and studio setups, the SRSR Series blends practical storage with a smart, space-saving design that keeps cables organized, gear accessible, and installations looking clean. The innovative combination of a slide-out and rotating rail mechanism means technicians can pull equipment forward, rotate for side access, and perform maintenance or upgrades without contorting into cramped closets or awkward corners. Built to endure demanding environments, this rail system is as dependable as it is versatile, making it a staple in professional installations that demand orderly configurations and quick serviceability.

• Maximized accessibility and organization: The 18U height and 19" width provide ample space for a wide range of equipment, from servers and switches to AV processors and power management devices. The slide-out feature brings the gear forward, reducing reach distance for routine maintenance, cable management, and equipment swaps, while the rotating rail adds an extra dimension of access, allowing technicians to view and connect cables from the most convenient angle — all without removing gear or leaning into tight racks.
• Rotating, slide-out design for streamlined service: The integrated rotating mechanism combined with a full extension slide-out enables convenient maintenance and faster equipment swaps. This design minimizes downtime in critical environments and helps protect delicate components during installation and changes. The system’s smooth operation supports reliable pulls and returns, so gear can be accessed and re-seated with confidence, even in busy data centers or multi-room facilities.
• Professional-grade compatibility: Engineered for standard 19" rack systems and configured to fit 18U installations, the SRSR Series is ideal for studios, broadcast rooms, conference centers, and IT closets. Whether you’re mounting audio interfaces, control processors, network gear, or display mounts, this rail system accommodates diverse equipment footprints while maintaining a clean, uniform rack appearance that aligns with other Middle Atlantic products.
• Durable, high-capacity construction: Built from robust steel and finished in a durable black coating, this rail system is designed to withstand daily usage, weight shifts, and the rigors of busy environments. With a maximum weight capacity of 200 lb, it supports a broad spectrum of gear while maintaining stability and safety during operation. The steel construction provides rigidity and long-term resilience, ensuring your investments remain protected as equipment evolves.
• Versatile installation and space adaptability: The SRSR Series is crafted to integrate into existing racks with minimal disruption. Its compact footprint and sturdy rails support flexible configurations, enabling easy repositioning as your equipment lineup grows or reconfigures. This adaptability is particularly valuable in spaces where layout and workflow require frequent reallocation of devices, making the SRSR a practical, future-proof choice for professional environments.

Technical Details of Middle Atlantic SRSR Series 18RU Slide Out Rotating Rail System

• Maximum Weight Capacity: 200 lb
• Rack Height: 18U
• Rack Width: 19"
• Finish: Black
• Material: Steel
• Mounting Type: Slide-out rotating rail system designed for 19" rack mounting

How to install Middle Atlantic SRSR Series 18RU Slide Out Rotating Rail System

• Step 1 — Prepare the rack: Confirm that your rack is a standard 19" enclosure and can support up to 200 lb. Clear the mounting area and verify there is sufficient clearance for slide-out operation and rotation without obstruction.
• Step 2 — Gather hardware and tools: Assemble and ready the included mounting hardware and any tools required for your rack type. Use appropriate fasteners for steel racks and ensure you have a level surface for precise alignment.
• Step 3 — Attach the rails: Mount the slide-out rail components to the rack rails, following the manufacturer’s alignment marks. Ensure the rails are plumb and secured per the installation guidelines to prevent misalignment during operation.
• Step 4 — Install gear onto the slide-out platform: Secure your equipment to the slide-out platform or tray, paying attention to balanced weight distribution to maintain smooth extension and rotation. Route cables and power leads to accommodate full travel without excessive tightness.
• Step 5 — Test operation and safety checks: Extend the rail to verify smooth movement, then rotate the tray to confirm clearance and access from multiple angles. Check locking mechanisms, weight stability, and cable slack to ensure reliable daily use.
• Step 6 — Finalize cabling and labeling: Neatly organize cables using tie-downs or cable managers, label ports for quick identification, and perform a final functional test with all devices powered and connected.
• Step 7 — Routine maintenance: Periodically inspect fasteners, rails, and rotating components for wear, lubricate as recommended by Middle Atlantic, and re-check alignment to preserve performance over time.

Frequently asked questions

• Q: What does SRSR stand for? A: SRSR stands for Slide Out Rotating Rail, a system designed to provide forward access and rotation for mounted equipment within a standard 19" rack.
• Q: What weight can the SRSR Series support? A: The rail system is rated for a maximum of 200 lb, making it suitable for a variety of gear while maintaining safe operation during extension and rotation.
• Q: Is this compatible with all standard 19" racks? A: Yes. The SRSR Series is designed for standard 19" rack installations and offers 18U rack height compatibility for compatible equipment configurations.
• Q: What is the finish and build material? A: The rails are constructed from steel and finished in a durable black coating to withstand daily use and provide a professional appearance.
• Q: Can I install this rail system in a tight space? A: The slide-out rotating design is intended to maximize access in constrained spaces, but you should confirm there is adequate clearance around the rack for rotation and extension in your specific installation.
