Description

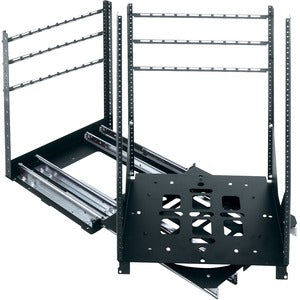

Middle Atlantic SRSR Series 19RU Slide-Out Rotating Rack Rail System
The Middle Atlantic SRSR Series 19RU Slide-Out Rotating Rack Rail System is engineered for professionals who demand seamless rear access, clean aesthetics, and superb serviceability in millwork, cabinets, and flush-in-wall installations. designed to maximize space in tight rooms, media closets, or built-in cabinetry, this wall-mounted rack system blends industrial-grade durability with practical ergonomics. With a 19RU capacity and a depth tailored for in-wall installations, the SRSR system extends smoothly and rotates a full 90 degrees in either direction, allowing technicians to reach every connector without removing equipment or crawling behind a rack. The removable rack frame further enhances convenience by enabling in-shop wiring and testing before field installation, reducing on-site complexity and downtime. This combination of compact form, flexible depth options, and robust construction makes the SRSR an ideal solution for smaller AV, IT, and communications projects where professional presentation and reliable access are essential.
- Maximized access in tight spaces: The slide-out mechanism combined with a 90° rotation provides easy, unobstructed access to rear equipment connections. No more leaning, twisting, or crawling behind a fixed rack—service and maintenance become faster and safer, even in confined wall cavities or cabinetry.
- 19RU capacity in a compact wall-mounted package: The SRSR delivers 19 rack units of standard equipment space within a wall-friendly footprint, enabling you to deploy full-size servers, switch gear, patch panels, and AV assets without sacrificing room. A strong steel frame and durable finish ensure long-term reliability in busy installations.
- Depth options for flush-in-wall installations: Available with usable depths of 19 inches or 23 inches, the system can be configured to fit a range of wall cavities and cabinet builds. The 19.1-inch depth referenced in the model name aligns with common in-wall clearance, while the deeper option accommodates additional cabling and larger gear footprints when space allows.
- Removable rack frame for in-shop wiring and testing: The rack frame can be detached for pre-wiring, testing, and labeling in a controlled environment. This minimizes in-field wiring complexity, reduces installation time, and helps ensure a neater, more reliable final setup.
- Durable, professional-grade build for in-wall applications: Constructed from heavy-duty steel with a protective finish, the SRSR system resists daily wear, vibration, and handling during installation and service. Its polished, professional appearance ensures clean, high-end aesthetics when mounted behind cabinetry or within millwork.
Technical Details of Middle Atlantic SRSR Series 19RU Slide-Out Rotating Rack Rail System
- Rack Units: 19U of standard rack space to accommodate a wide range of standard equipment.
- Depth: 19.1 inches (usable depth options include 19 inches and 23 inches, enabling flush-in-wall or deeper installations as needed).
- Rotation: Extends and rotates 90 degrees in either direction for effortless access to rear connections.
- Mounting Type: Wall-mounted rail system designed for flush-in-wall installations within millwork, cabinets, or built-in enclosures.
- Rack Frame: Removable rack frame for convenient in-shop wiring, testing, and preassembly prior to final installation.
- Construction & Finish: Steel construction with a durable protective finish designed to withstand daily use in professional environments.
- Access & Serviceability: Full rear access to equipment connections after rotation, reducing service time and physical strain during maintenance.
How to Install Middle Atlantic SRSR Series 19RU Slide-Out Rotating Rack Rail System
- Begin by identifying a solid, structurally sound wall location that can support the weight of the rack and equipment. Use studs or appropriate anchors for secure mounting and ensure there is clearance for the 90° rotation without obstructions.
- Prepare the installation area with the chosen usable depth (19" or 23"). If you’re aiming for a flush-in-wall look, confirm that the wall cavity or millwork accommodates the shallower 19" depth where possible and plan for cabling routes behind the rack.
- Install the mounting rails to the wall according to the manufacturer’s specifications. Ensure they are plumb, level, and securely anchored to structural members or appropriate backing to support the load of equipment and the rotating mechanism.
- Attach the SRSR rack frame to the mounted rails. Verify smooth operation by sliding the frame in and out and confirming that the 90° rotation engages cleanly in both directions. Check for any interference from nearby components, panels, or hardware.
- Connect equipment to the rack’s rear interfaces while paying careful attention to cable management. Use proper strain relief, cable ties, and routing to prevent kinking and to maintain clear space for rotation. Finally, test full operation by extending, rotating, and returning the rack to its home position, ensuring doors or panels close neatly and the installation remains secure.
Frequently Asked Questions
- What is the SRSR Series? The SRSR Series is a slide-out, rotating rack rail system designed for flush-in-wall installations in millwork and cabinets. It provides convenient rear access to connections without removing equipment.
- What depth options are available? The system is available in usable depths of 19 inches and 23 inches, with a model depth of 19.1 inches noted for the 19RU configuration.
- How many rack units does it hold? The SRSR offers 19U of rack space, suitable for a wide range of standard IT and AV equipment.
- Can the rack rotate fully? Yes, the rack extends and rotates 90 degrees in either direction, enabling easy service access from the front or rear as needed.
- Is the rack frame removable? Yes, the frame is removable to simplify in-shop wiring, testing, and preassembly before installation in the wall or cabinet.
