Description

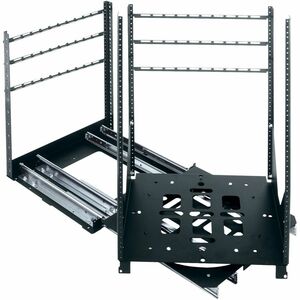

Middle Atlantic SRSR Series 25RU Slide Out Rotating Rack Rail System - 19.1in Depth Wall Mounted Rack
Effortlessly combine accessibility, flexibility, and professional aesthetics with the Middle Atlantic SRSR Series 25RU Slide Out Rotating Rack Rail System. Engineered for millwork, cabinets, and flush in-wall installations, this wall-mounted rack system brings premium data, video, and AV equipment within easy reach while preserving a clean, finished look. The SRSR is purpose-built for smaller systems where rear cabling access matters as much as front-panel visibility. Its intelligent design enables a 25RU rack capacity that slides out and rotates a full 90 degrees in either direction, making service, upgrades, and maintenance remarkably convenient without exposing your equipment to dust or accidental contact.
- Maximized accessibility in compact spaces: The SRSR Series stores 25 rack units in a compact footprint, then slides out smoothly and rotates 90 degrees in either direction. This provides effortless rear access to every connection, patch panel, and power distribution unit, simplifying cable management and maintenance without requiring full-room access.
- Flexible depth options for concealed installations: Choose between a useable depth of 19.1 inches or 23 inches to suit your cabinet, millwork, or in-wall cavity. This versatility allows you to optimize space behind walls or within cabinetry while maintaining standard 19-inch equipment compatibility.
- Removable rack frame for in-shop and on-site efficiency: The detachable rack frame makes pre-wiring and testing easier in the shop, reducing installation time on site. When you’re ready, simply reinsert the frame into the wall or cabinet and lock it in place for a secure, professional finish.
- Reliable construction with intelligent cable routing: Built to endure frequent access and cycling, the SRSR uses rugged materials and a protective finish designed for professional audio-visual environments. Thoughtful cable routing channels keep cords organized, minimize wear, and preserve clear airflow to prevent heat buildup.
- Versatile mounting for flush, in-wall, and cabinet installations: Whether you’re integrating into millwork, cabinetry, or flush in-wall systems, the SRSR provides a neat, professional appearance and quick access to rear connections. It’s ideal for compact control rooms, broadcast setups, or residential media walls where space is at a premium.
Technical Details of Middle Atlantic SRSR Series 25RU Slide Out Rotating Rack Rail System
- Rack capacity: 25 RU
- Depth options (usable): 19.1 inches or 23 inches
- Rotation: Slides out and rotates 90 degrees in either direction
- Mounting: Wall-mounted rail system designed for flush in-wall and millwork installations
- Frame: Removable rack frame for in-shop wiring and testing
- Target installations: Millwork, cabinets, and flush in-wall configurations
- Equipment compatibility: Standard 19-inch rack-mount equipment, optimized for rear-access cabling
- Finish and construction: Rugged steel construction with durable, professional-grade finish
How to install Middle Atlantic SRSR Series 25RU Slide Out Rotating Rack Rail System
- Plan and measure: Assess the installation location within the millwork, cabinet, or wall cavity. Confirm that there is adequate space for the 19.1" or 23" depth, and ensure unobstructed clearance for the 90-degree rotation. Prepare mounting studs or solid backing to support the weight of fully loaded equipment.
- Prepare the mounting surface: If installing flush in-wall, cut the cavity to the chosen depth and verify a clean opening with enough room for the slide-out mechanism. If mounting within millwork or a cabinet, position the mounting rails according to the manufacturer’s guidelines to ensure smooth operation.
- Attach the rail system: Secure the wall-mounted rails and frame per the installation instructions. Use appropriate fasteners for your surface and verify level alignment to prevent binding during rotation. Confirm that the system can support the intended load without flexing.
- Install the removable rack frame: Slide the rack frame into place and lock it securely. Prepare the frame for pre-wiring or testing in a shop environment if desired, then remove it for on-site finalization if required by your workflow.
- Route cables and mount equipment: With the frame in place, install your 19" rack-mount equipment and route rear cables through the defined channels or cable management features. Leave sufficient slack for the 90-degree rotation, then close the system by sliding the frame back and rotating into the service position for cable testing and commissioning.
- Test access and finish: Open and rotate the rack to ensure full 90-degree operation without interference. Confirm that all connections are accessible from the rear and that the door or panel closes flush with the wall or cabinet, delivering a clean and professional appearance.
Frequently asked questions
- Q: What is the primary advantage of the SRSR Series? A: The SRSR provides easy rear access to equipment connections in compact installations. Its slide-out, 90-degree rotating design makes servicing and upgrading components straightforward while preserving a neat, flush appearance in millwork, cabinets, or in-wall installations.
- Q: What depth options are available? A: The usable depth options are 19.1 inches and 23 inches, offering flexibility to fit various wall cavities or cabinet depths while accommodating standard 19-inch equipment.
- Q: How many rack units does this system hold? A: The SRSR Series supports 25 rack units (RU) of equipment, providing substantial capacity for compact systems without requiring a larger footprint.
- Q: Is the rack frame removable? A: Yes. The rack frame is removable to facilitate in-shop wiring, testing, and easier on-site installation, then reinserted for final service use.
- Q: Can this system be used for flush or in-wall installations? A: Absolutely. The SRSR is designed for millwork, cabinets, and flush in-wall installations, delivering a clean, professional look with rear-access capabilities.
