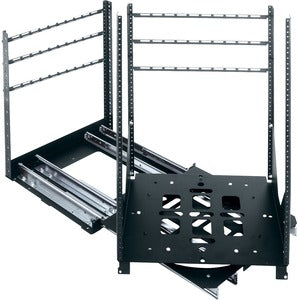

Middle Atlantic SRSR Series 29RU Slide Out Rotating Rack Rail System - 19.1in Depth Wall Mounted Rack

Middle AtlanticSKU: 5540042

Price:
Sale price$1,011.60

Description

Middle Atlantic SRSR Series 29RU Slide Out Rotating Rack Rail System - 19.1in Depth Wall Mounted Rack

Designed for compact, high-density AV and IT deployments, the SRSR Series 29RU Slide Out Rotating Rack Rail System delivers practical versatility for behind-the-wall and cabinet installations. This 19.1" deep wall-mounted rack provides full 29RU of rack space within reach, transforming tight service areas into accessible, organized equipment hubs. With its extendable slide-out design and 90° rotation, you gain clear access to backplane connections, cable terminations, and power distribution without crawling behind equipment or removing components. Built for millwork, flush-wall installations, and in-wall enclosures, the SRSR keeps your gear protected while offering effortless serviceability. Whether you’re outfitting a compact editing suite, a data closet in a small office, or a broadcast-side rack behind cabinetry, this system delivers professional-grade accessibility and reliability in a compact footprint.

  • Maximized rack space in a compact footprint: The 29U capacity is integrated into a space-saving wall frame that fits flush in millwork and tight wall cavities, making it ideal for conference rooms, broadcast and recording studios, and small data closets where equipment density remains high. The 19.1" usable depth keeps equipment and cabling neatly tucked behind walls while still permitting full access when you need it, preserving clean, professional aesthetics in visible spaces.
  • 90° slide-out rotation for effortless rear access: The system extends smoothly from the wall and rotates up to 90 degrees in either direction, delivering unhindered rear access for cable terminations, patch panels, and power distribution units. This design minimizes service downtime, reduces the need for awkward maneuvers, and simplifies installation and maintenance in space-constrained environments, especially where access is limited by cabinetry or millwork.
  • Removable rack frame for in-shop assembly and flexible installation: The removable frame enables in-shop pre-termination of cables and quick on-site drop-in installation, reducing field labor and cable clutter. For installers, this means you can stage equipment, test connectivity, and align mounting rails before the final on-wall integration, improving accuracy and reliability and enabling faster project turnover.
  • Depth options to fit diverse equipment and cabling: Available in 19.1" usable depth as standard and a deeper 23" option for larger patch bays, multi-connector blocks, and dense cabling configurations. The adjustable depth helps accommodate a wide range of gear while preserving critical air flow and cable management pathways within the rack, ensuring equipment runs cool and organized behind the wall.
  • Durable construction and industry-standard compatibility: Built from robust steel with a durable finish, the SRSR uses standard 19" (EIA) wide rails to accommodate a broad range of AV, IT, and professional audio equipment. The wall-mounted design keeps units secure and stable in busy environments, delivering long-term reliability and a clean, professional installation in commercial settings.

Technical Details of Middle Atlantic SRSR Series 29RU Slide Out Rotating Rack Rail System - 19.1in Depth Wall Mounted Rack

  • Rack Unit (RU) capacity: 29U
  • Usable depth options: Standard 19.1" depth; optional 23" depth to accommodate larger equipment and cable configurations
  • Rotation mechanism: Extends from the wall and rotates up to 90° in either direction for convenient rear access
  • Mounting format: Wall-mounted frame with 19" EIA standard rack width
  • Rack frame design: Removable frame for easier in-shop termination and flexible on-site installation
  • Materials and finish: Rugged steel construction with durable, corrosion-resistant finish
  • Compatibility: Supports standard 19" rack-mount equipment and components
  • Applications: Ideal for millwork, flush-in-wall installations, cabinets, and compact systems requiring rear access

how to install Middle Atlantic SRSR Series 29RU Slide Out Rotating Rack Rail System - 19.1in Depth Wall Mounted Rack

Install the SRSR system with careful planning to maximize access and serviceability while maintaining a clean, code-compliant enclosure. The following steps outline a practical installation workflow suitable for professional installers and competent technicians.

  • Plan and prepare: Verify the wall structure can support the rack’s weight and rotation clearance. Confirm the chosen depth (19.1" or 23") and ensure there is adequate space for the 90° rotation path and rear cabling. Gather all required mounting hardware, tools, and 19" rack equipment that will live inside the frame.
  • Prepare the mounting surface: Locate wall studs or assemble a backbox that provides a solid anchoring point for the SRSR rails. Use the supplied mounting holes and appropriate fasteners for your wall type (drywall, wood, concrete, etc.). Ensure the mounting surface is level to prevent binding during rotation.
  • Assemble the removable rack frame (in-shop or staging area): If available, pre-terminate cables and install 19" equipment within the removable frame. Label cables and plan for orderly cable management so rear connections are straightforward when the frame is inserted on-site.
  • Install the wall rails and insert the frame: Attach the wall-mounted rails to the prepared surface according to the manufacturer’s guidelines. With the rails secured, slide the removable frame into place, ensuring it seats correctly and aligns with standard 19" rack spacing.
  • Terminate cables and perform checks: Connect rear cables, terminate patch panels, and verify continuity and power connections before operating the rotation mechanism. Double-check for cable strain relief and ensure there is sufficient slack to accommodate 90° rotation.
  • Test operation and finalize: Extend the rack, rotate to the desired direction, and confirm smooth operation without binding. Secure all panels, fasteners, and covers, then perform a functional test of all equipment mounted inside to confirm connectivity and airflow compliance.

Frequently asked questions

  • Q: What depth options are available for the SRSR 29RU rack? A: The system is available in a standard 19.1" usable depth with an optional deeper 23" depth to accommodate larger equipment and more extensive cable management needs.
  • Q: How does the rotation feature improve service access? A: The 90° rotation moves the rack away from the wall to expose rear connections, making cable terminations, testing, and maintenance easier without removing devices or contorting behind the cabinet.
  • Q: Is the rack frame removable? A: Yes. The removable rack frame enables in-shop assembly and pre-termination, then allows quick, tidy on-site installation for faster project completion.
  • Q: What equipment can be mounted in the SRSR? A: The SRSR uses standard 19" (EIA) rack rails, so it accommodates a wide range of AV, IT, and professional audio equipment designed for 19" racks.
  • Q: Where is the best installation location? A: Ideal for millwork, flush-in-wall installations, cabinetry, and tight-room environments where rear access and compact space utilization are critical for daily operation and maintenance.
