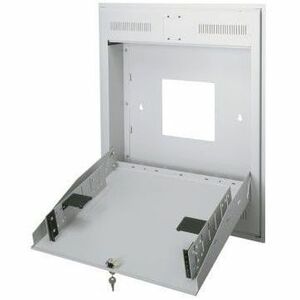

Middle Atlantic TOR Series 4RU Tilt-Out Wall Mounted Rack

Middle AtlanticSKU: 5540201

Price:
Sale price$757.80

Description

Middle Atlantic TOR Series 4RU Tilt-Out Wall Mounted Rack

The Middle Atlantic TOR Series 4RU Tilt-Out Wall Mounted Rack is engineered for compact, secure, and serviceable AV installations. Designed to maximize space in classrooms, hotels, corporate offices, and small venues, this tilt-out rack delivers a low-profile solution without sacrificing accessibility or gear protection. Whether you’re mounting gear between studs or opting for surface-mount or flush-mount configurations, the TOR Series combines sturdy construction with intelligent design to simplify equipment patching, cable management, and routine maintenance. Its tilt-out front access makes it effortless to reach patch panels, power distribution, and connectivity without contorting behind the rack, while keeping cables organized and out of sight for a clean, professional look.

In environments where reliability and aesthetics matter, the TOR 4RU Tilt-Out Rack stands up to daily use and high-traffic conditions. The rack’s robust steel construction, precise 19" rail system, and powder-coated finish ensure long-lasting performance in schools, hotels, conference centers, and offices. With flexible mounting options and a secure, low-profile footprint, it’s the ideal choice for small sound systems, paging networks, and patching applications where space is at a premium but access to equipment remains essential.

  • Tilt-out design provides effortless front access for installation, service, and cable management, reducing maintenance time and minimizing gear wear while keeping gear secure when closed.
  • 4U rack height accommodates standard 19" equipment such as patch panels, small amplifiers, power distribution units, signal processors, and compact AV matrices within a compact footprint.
  • Flexible mounting options include surface-mount and flush-mount styles, with the capability to mount between studs for a sleek, integrated wall installation that blends with architectural features.
  • Durable steel construction with a rugged powder-coated finish delivers long-term durability and tamper-resistant performance in active environments like classrooms and hospitality spaces.
  • Improved cable management and airflow design keeps equipment organized, simplifies routing of power and signal cables, and promotes reliable cooling around densely populated 4U configurations.

Techncial Details of Middle Atlantic TOR Series 4RU Tilt-Out Wall Mounted Rack

  • Rack Units: 4U
  • Mounting Style: Tilt-out wall mount with options for surface-mount or flush-mount; designed to mount between studs for a seamless wall integration
  • Rail Width: 19" EIA standard for compatibility with standard 19" equipment
  • Construction: Heavy-gauge steel with durable powder-coated finish for years of rugged service
  • Access: Tilt-out front panel provides easy service access to rear connections while maintaining system security when closed

how to install Middle Atlantic TOR Series 4RU Tilt-Out Wall Mounted Rack

  • Plan your layout and select mounting style: Decide between surface-mount, flush-mount, or between-studs installation based on wall type, room purpose, and cable routing needs. Verify available wall space and clearance for the tilt-out door to operate without interference.
  • Gather the right tools and hardware: You'll typically need a stud finder, measuring tape, level, drill, and the appropriate mounting screws or anchors specified by Middle Atlantic for your wall type. Use screws that engage solid wood studs for maximum support.
  • Locate studs and mark mounting points: Use a stud finder to identify the studs behind the wall. Mark the top and bottom mounting points aligned with the rack’s mounting holes to ensure a level installation. If using flush-mount or surface-mount kits, follow the kit-specific instructions for alignment.
  • Mount the rack frame securely: Pre-drill pilot holes if necessary, then fasten the rack to the studs using the provided hardware. Check for levelness and confirm the tilt-out mechanism can operate freely without binding upon opening and closing. Tighten mounting screws securely to prevent movement over time.
  • Install rails and connect equipment: Attach 19" rack rails or mounting brackets if not pre-installed. Slide in 4U equipment such as patch panels, media devices, or small power distribution units, securing them with the appropriate rack screws. Route cables through rear pass-throughs and organize with cable management accessories where available.
  • Finalize cabling and test operation: Make all power and signal connections, verify that the tilt-out door clears adjacent gear, and test the RPM operation of the tilt mechanism. Ensure adequate ventilation around the mounted equipment and confirm that cables are neatly arranged to prevent snagging during tilting.

Frequently asked questions

  • Q: What environments is the TOR Series 4RU Tilt-Out Rack best suited for?

    A: It is ideal for small sound systems, paging networks, and patching applications in schools, hotels, offices, and other spaces requiring a secure, low-profile wall-mount solution that remains easy to service.

  • Q: Can the rack be mounted flush with the wall?

    A: Yes. The TOR Series offers flush-mount as well as surface-mount configurations, and it can be installed between studs for a clean, integrated look.

  • Q: What gear fits in the 4U TOR rack?

    A: The 4U height accommodates most standard 19" rack-mount devices such as patch panels, small-format amplifiers, compact processors, and power distribution units designed for 19" racks.

  • Q: How durable is the rack?

    A: The rack uses heavy-gauge steel with a powder-coated finish, delivering long-term durability in high-traffic environments where frequent access is required.

  • Q: Are there any lockable options?

    A: Some configurations offer lockable front panels or optional locking accessories; check the specific model configuration to confirm available security features.
