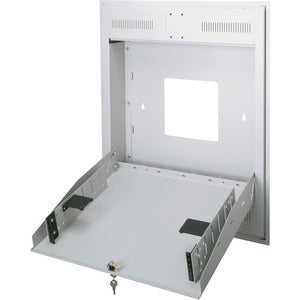

Middle Atlantic TOR-3-20RP Tilt-Out Rack — Tor Series Wall-Mount Solution

Designed for secure, space-efficient installations, the Middle Atlantic TOR-3-20RP Tilt-Out Rack from the Tor Series delivers a compact wall-mount rack that blends seamlessly into classrooms, lobbies, conference rooms, and backstage areas. Built for reliability in high-traffic environments, this tilt-out rack provides convenient access to gear while keeping cables organized, protected, and neatly concealed behind a low-profile, tamper-resistant front panel. Whether you’re outfitting a small audio system for paging, patching, or general AV distribution, the TOR-3-20RP offers a practical, durable solution that adapts to a variety of installation scenarios.

• Compact tilt-out design optimizes space for small sound systems, paging and patching workloads, enabling quick access to gear without sacrificing wall real estate.
• Flexible mounting options with surface-mount and flush-mount styles, making it suitable for both retrofit upgrades and new builds in schools, hotels, offices, and performance venues.
• Wall-mount capability that fits between studs and sits flush with the wall surface, delivering a secure, low-profile installation that minimizes visual impact in any room.
• Tamper-resistant construction enhances security in high-traffic environments, helping deter unauthorized access while keeping power and signal cabling neatly enclosed.
• Rugged Tor Series build uses durable steel and a protective finish to withstand daily use, ensuring long-term performance for patching, routing, and small-system management.

Technical Details of TOR-3-20RP

• Model: TOR-3-20RP
• Series: Tor Series Tilt-Out Rack
• Type: Tilt-out wall-mount rack designed for secure front access to mounted equipment
• Mounting options: Surface-mount and flush-mount styles; mounts between studs for a flush wall finish
• Construction: Heavy-gauge steel with durable powder-coated finish for long-lasting use
• Security: Tamper-resistant design to protect equipment and cabling in busy environments
• Applications: Ideal for small sound systems, paging and patching in schools, hotels, offices, and similar spaces
• Access: Tilt-out front panel enables convenient service and equipment access while maintaining a clean wall appearance

How to install TOR-3-20RP

Step 1: plan and locate mounting area — Choose a wall area that can support the weight of the rack and any equipment you intend to mount. Use a stud finder to locate wall framing and plan for a location that allows the tilt-out mechanism to operate without obstruction. Consider cable routes and ventilation to ensure safe, accessible installation.

Step 2: choose the mounting style — Decide whether you will install the TOR-3-20RP as a surface-mount or flush-mount solution. If you’re mounting between studs, ensure there is sufficient space for the front tilt-out panel and for any cables you plan to route behind the rack.

Step 3: mark and prepare mounting points — Mark the intended screw locations on the wall or mounting surface in alignment with studs or wall anchors appropriate for the wall type. Double-check that the marks are level to guarantee a straight, stable installation.

Step 4: secure the frame to the wall — Use appropriate fasteners rated for your wall construction (wood studs or concrete anchors, as applicable). Attach the TOR-3-20RP frame firmly, ensuring it is plumb and square to prevent binding of the tilt-out mechanism.

Step 5: route cables and prepare equipment — Before loading gear, plan cable paths for power, signal, and patch cables. Leave extra slack to accommodate tilt-out movement, but keep runs organized with clips or ties to avoid obstruction during operation.

Step 6: install equipment and test — Mount your equipment inside the rack, making sure all devices fit within the available depth and clearance. Close the tilt-out panel, engage any locking or securing features if present, and perform a functional test to verify tilt-action, access, and cable integrity. Ensure proper ventilation to prevent overheating during use.

Step 7: finalize and review — Check that the completed installation aligns with building codes and safety guidelines. Confirm that the tilt-out mechanism remains smooth after multiple cycles and that all equipment remains secure during normal use.

Frequently asked questions

• Q: What is the TOR-3-20RP used for?

  A: It is a tilt-out rack designed for secure, compact wall-mount installations to house small sound systems, paging and patching equipment in settings like schools, hotels, and offices.

• Q: What mounting options are available?

  A: The TOR-3-20RP supports both surface-mount and flush-mount installations and can be mounted between studs to achieve a flush wall finish for a discreet look.

• Q: Is the design tamper-resistant?

  A: Yes, the Tor Series TOR-3-20RP includes tamper-resistant features that help protect equipment and cabling in high-traffic areas.

• Q: What environments are ideal for this product?

  A: It is well-suited for schools, hotels, offices, conference spaces, and any location requiring a secure, low-profile wall-mount rack for audio and patching gear.

• Q: How do I install this rack?

  A: While exact steps depend on wall type and mounting style, typical installation involves locating studs, mounting the frame, routing cables, installing equipment, and testing tilt-out operation. Always follow the manufacturer’s installation manual for safety and proper operation.
