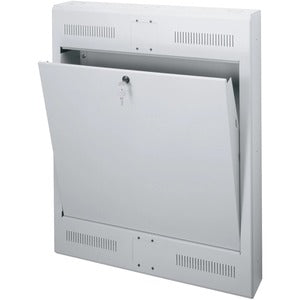

Middle Atlantic TOR Series Tilt Out Wall Rack - TOR-3-20SP
The Middle Atlantic TOR Series Tilt Out Wall Rack TOR-3-20SP delivers a compact, secure, and highly accessible solution for housing 19-inch rack equipment in spaces where a traditional freestanding rack won’t fit. Designed for small sound systems, paging, and patching applications, this tilt-out wall rack combines a low-profile footprint with robust construction and thoughtful engineering to simplify installation, maintenance, and cable management. Whether you’re outfitting a classroom, hotel lobby, corporate office, backstage area, or any environment requiring a secure, professional-grade wall-mount rack, the TOR-3-20SP provides a reliable, tamper-resistant housing that keeps gear organized, accessible, and protected from dust and casual interference. The versatility of surface-mount and flush-mount configurations lets integrators tailor the installation to match interior aesthetics while preserving optimal access to rear connections through the tilt-out front panel. With its durable steel chassis, recessed hardware, and clean, professional finish, this rack is built to withstand daily usage in demanding environments while maintaining a neat, unobtrusive appearance.
- Tilt-out accessibility with secure protection: The tilt-out mechanism grants easy access to rear connectors and equipment while shielding sensitive interfaces from dust and accidental contact, enabling quick servicing and upgrades without sacrificing security or space efficiency.
- Tamper-resistant and secure mounting: Engineered with tamper-resistant hardware and robust mounting design, the TOR-3-20SP is ideal for environments where equipment protection is a priority, such as schools, hotels, offices, and other public or semi-public spaces.
- Flexible installation options: Available in surface-mount and flush-mount configurations to suit architectural needs and room layouts, enabling seamless integration into a variety of interior designs while maintaining a clean, professional look.
- Compact, 19-inch rack with practical depth: The TOR-3-20SP provides sufficient rack space for standard audio, video, and patching gear within a compact, low-profile footprint, helping to maximize room usability without compromising performance or accessibility.
- Designed for school, hospitality, and corporate applications: Built for reliability in high-use settings, this tilt-out wall rack supports routine maintenance, cable management, and organized gear deployment in environments that demand durability and ease of service.
Technical Details of TOR-3-20SP
- Construction: Heavy-gauge steel chassis with a durable powder-coated finish for long-lasting wear in busy installations.
- Rack space and compatibility: Supports standard 19-inch equipment in a compact 3U footprint, optimized for a tight wall-mount installation while accommodating patch panels, small mixers, power distribution, and related AV gear.
- Depth and footprint: Deep enough to house typical rear-cable layouts and connectors while preserving a low-profile exterior for secure wall mounting.
- Tilt-out front access: Front panel tilts out to provide unhindered access to rear panels, with a secure latch mechanism to hold the door in place during operation.
- Mounting options: Supports both surface-mount and flush-mount installations, allowing installers to achieve the desired flush integration with wall surfaces or to maintain a raised, accessible surface when needed.
- Security and hardware: Tamper-resistant design with reinforced mounting points and integrated cable management features to minimize interference and keep connections organized.
- Ventilation and protection: Vented panels promote airflow around equipment while reducing dust intrusion and maintaining a tidy enclosure for sensitive gear.
- Finish and aesthetics: Uniform, professional finish suitable for high-visibility environments where appearance matters as much as performance.
- Included/accessory options: Compatible with common 19" rack rails and accessories; modular components can be added or rearranged to customize the setup as needs evolve.
How to install TOR-3-20SP
- Plan the installation: Determine whether you will use surface-mount or flush-mount configuration based on room layout, wall material, and visibility requirements. Identify stud locations and plan cable routing to minimize bending and congestion behind equipment.
- Prepare mounting surface: For surface-mount installs, locate wall studs and mark mounting points. For flush-mount installs, prepare a recessed cavity or use compatible back-box hardware as required by the wall structure.
- Attach mounting hardware: Secure the TOR-3-20SP frame to the wall using appropriate fasteners and anchors rated for the wall material. Verify the frame is level and firmly attached before proceeding.
- Install rails and accessory hardware: Install rack rails and any pre-mounted accessories according to the manufacturer’s guidelines. Ensure rails are aligned and securely anchored to support the expected load of attached equipment.
- Load and arrange equipment: Begin with heavier components at the bottom to maintain center of gravity and balance. Use rack screws or mounting ears as required to secure each device while preserving access to rear connections.
- Prepare cabling and patching: Route power, data, and interconnect cables behind the equipment with ample slack for movement during tilt-out operation. Use cable ties and management channels to maintain a clean, organized pathway.
- Test tilt-out operation: Before closing the panel, test the tilt-out mechanism to ensure smooth operation, proper latch engagement, and unrestricted rear-access clearance when the panel is tilted.
- Finalize commissioning: Power on the gear, verify signal paths, check for interference or overheating, and confirm that the patching and patch panels align correctly with the intended routing.
Frequently asked questions
- What is the TOR-3-20SP best suited for? The TOR-3-20SP is ideal for compact sound systems, paging, and patching setups in schools, hotels, and offices where a secure, low-profile wall-mount solution is required without sacrificing accessibility for service and maintenance.
- Can it be mounted flush or on the surface? Yes. The TOR-3-20SP is designed for both surface-mount and flush-mount configurations, allowing installers to choose the installation that best fits the space and aesthetic while maintaining reliable access to equipment.
- How does the tilt-out mechanism improve serviceability? The tilt-out design provides easy access to rear connections and cabling without removing the entire rack from the wall, reducing downtime during maintenance and simplifying cable management.
- Is the rack tamper-resistant? Yes. The TOR-3-20SP emphasizes tamper-resistant hardware and secure mounting to help deter unauthorized access in public or semi-public environments.
- What kind of equipment fits in this rack? It accommodates standard 19-inch equipment in a compact 3U footprint, making it suitable for small mixers, patch panels, small distribution amplifiers, and related gear commonly used in AV, paging, and network installations.
