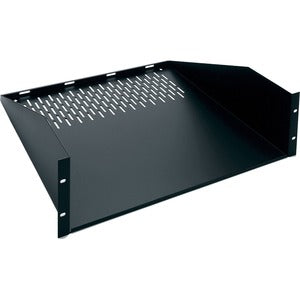

Middle Atlantic U Series U317 Vented Rack Shelf

The Middle Atlantic U Series U317 Vented Rack Shelf is a purpose-built mounting platform designed to optimize airflow, organization, and reliability inside standard 19" enclosures. As part of the trusted U-Series family, the U317 blends rugged construction with a thoughtfully vented surface that helps keep equipment cooler, quieter, and more accessible for maintenance. Whether you’re building a compact media server cabinet, a conference room AV rack, or a multi-zone IT enclosure, this vented rack shelf provides a steady foundation for a wide range of 19" gear—from network switches and multimedia players to compact amplifiers and power distribution blocks. The U317 is engineered for professional environments where dependable performance, tidy cable management, and scalable configurations matter. With its clean lines, durable finish, and proven Middle Atlantic engineering, the U317 delivers a reliable, long-term solution for modern rack systems while preserving space and airflow for critical components.

• Ventilated design and airflow optimization: The U317 features a perforated, vented surface that encourages air movement around installed equipment, helping to dissipate heat more efficiently. This reduces hotspot buildup for dense equipment layouts and supports longer component life by maintaining steadier operating temperatures. The shelf’s airflow-friendly footprint works in harmony with enclosure fans and front-to-rear cooling strategies, enabling more consistent temperatures even in busy installations. By promoting better convection cooling, the U317 can contribute to quieter operation and less fan cycling for connected devices, which is especially valuable in home theaters, small offices, and professional AV setups where noise matters as much as performance.
• Rugged, durable construction for demanding environments: Built from heavy-duty steel with a resilient powder-coated finish, the U317 is designed to withstand the rigors of daily use in professional settings. Its solid frame resists flex and sag when loaded with 19" gear, delivering secure mounting and long-term stability. The durable finish defends against scuffs, fingerprints, and light abrasions, maintaining a professional appearance in client spaces and high-traffic rooms. This robustness translates into fewer service calls and greater peace of mind for integrators who rely on dependable hardware to support complex AV and IT deployments over time.
• Standard 19" compatibility with flexible enclosure integration: As part of the U-Series, the U317 is engineered to integrate seamlessly with standard 19" rack equipment and Middle Atlantic enclosures. Its width aligns with conventional rack rails, enabling straightforward installation of a broad range of devices without adapters or special brackets. The shelf’s mounting pattern is designed to align cleanly with cage nuts and standard rack screws, simplifying the installation process and reducing the chances of misalignment or tilt. With its modular approach, the U317 supports scalable configurations—you can add additional shelves, rails, or accessories as your system grows, while maintaining a cohesive, professional look across the entire rack.
• Ease of installation and modular adaptability: Installing the U317 is straightforward for experienced AV and IT installers. The shelf ships with the necessary mounting hardware for typical 19" enclosures, and its pre-drilled mounting holes facilitate quick, secure attachment to the rack rails. The modular design enables quick reconfiguration when equipment changes or expands, allowing technicians to relocate devices or adjust spacing without major rework. This is particularly valuable in environments where equipment is frequently updated or reorganized, such as studio control rooms, corporate IT closets, or educational spaces that require flexible, future-proofed racks. In addition, the surface and edge finishing are designed to prevent cable snags and to support clean cable management behind the shelf, helping to maintain a tidy rear area and unobstructed ventilation paths.
• Professional-grade aesthetics and reliable performance: The U317 captures Middle Atlantic’s commitment to quality, precision, and long-term performance. It complements other U-Series components—rails, tops, and faceplates—to create a consistent, professional rack system. The vented shelf not only improves cooling but also contributes to a more polished installation by offering a neat, uniform surface for gear and cables. This combination of airflow, durability, and modular design makes the U317 an ideal choice for AV installations in broadcast studios, conference rooms, retail spaces, and high-end home theaters where reliability and presentation matter as much as performance. The shelf is designed to be a maintenance-friendly component that supports routine swaps, upgrades, and expansions without sacrificing stock design or airflow, ensuring your enclosure remains a capable home for critical equipment for years to come.

Technical Details of Middle Atlantic U Series U317 Vented Rack Shelf

• Series: U-Series
• Product type: Vented rack shelf
• Material: Heavy-duty steel with black powder-coated finish
• Compatibility: Standard 19" rack equipment; designed for compatible Middle Atlantic enclosures
• Ventilation: Perforated vented surface to promote airflow and cooling
• Finish: Durable, scratch-resistant black powder coat
• Hardware: Includes mounting hardware appropriate for 19" enclosure installations (cage nuts and screws typically included with compatible kits)
• Dimensions: Optimized depth for common enclosure configurations; refer to official datasheet for exact measurements and weight rating

How to install Middle Atlantic U Series U317 Vented Rack Shelf

• Plan your rack layout: Identify the elevation in the enclosure where the shelf will sit, ensuring there is adequate airflow clearance behind and around the mounted devices. Consider front-to-back ventilation paths and the location of power and data cables to avoid interference or obstruction.
• Prepare the rack: Install cage nuts into the vertical rails at the target height if your enclosure uses a cage nut system. Verify that rails are level and secure before mounting the shelf.
• Attach the shelf: Align the U317 with the rails and fasten it using the included mounting screws, tightening evenly to avoid any tilt. Ensure the shelf is seated firmly with no movement that could stress mounted equipment.
• Mount your gear: Place 19" devices onto the shelf, aligning their mounting holes with the shelf’s pre-drilled pattern. Secure each device with the appropriate screws and hardware, taking care not to overtighten and strip threads.
• Organize cables: Route power and data cables behind the shelf and along the rack rails. Use cable management accessories as needed to maintain a tidy rear area, preserve airflow, and reduce strain on connectors.
• Power on and verify: Reconnect devices, power up the system, and verify that each device operates normally. Check for proper cooling by confirming that air is flowing through the enclosure and that fans (if present) are operating within expected noise and temperature ranges.

Frequently asked questions

• Q: What is the intended use of the Middle Atlantic U Series U317 Vented Rack Shelf? A: It is designed to hold standard 19" rack-mount equipment inside Middle Atlantic enclosures, providing a ventilated surface to improve airflow and cooling for active devices such as switches, media players, small amps, and processors.
• Q: Is the shelf compatible with all 19" devices? A: The shelf is designed for standard 19" equipment mounted in compatible enclosures. While it accepts most 19" devices, always verify the depth and mounting hole alignment with your specific gear.
• Q: How much weight can the shelf support? A: Weight ratings vary by SKU and enclosure; consult the official product datasheet or distributor specifications for exact figures for your configuration. In general, Middle Atlantic shelves are engineered to handle typical AV and IT components without sagging or deformation.
• Q: Does it come with mounting hardware? A: The shelf typically includes the necessary mounting hardware for standard 19" enclosures, including screws and cage nuts, though exact contents can vary by retailer or kit. Check the product listing for the included hardware.
• Q: Can I expand my rack later with additional U-Series components? A: Yes. One of the advantages of the U-Series is its modular design, which makes it easy to add shelves, rails, and other components as your system grows, maintaining a consistent aesthetic and airflow across the rack.
