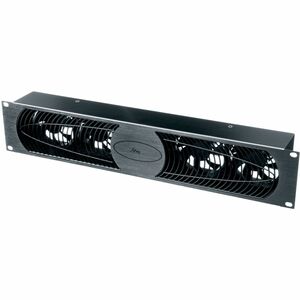

Middle Atlantic UQFP Series Intake Only Fan Panel - 100 CFM, Quiet 27 dB, Black Brushed and Anodized

The Middle Atlantic UQFP Series Intake Only Fan Panel (model UQFP-4RA-INT) is engineered for professional rack environments where reliable cooling, low noise, and a sleek, durable finish are essential. This intake-only panel is designed to pull cool air into the rack, helping to prevent hotspots and extend the life of sensitive equipment. With a focused 100 CFM airflow and a thoughtful thermostatic control system, the UQFP-4RA-INT balances aggressive cooling performance with a remarkably quiet operation, making it an ideal choice for audio/video studios, data centers, network closets, and broadcast suites where both power and silence matter. The panel’s black brushed and anodized finish delivers a premium, sturdy look that fits seamlessly into high-end racks while withstanding the rigors of daily use.

• High-performance, low-noise cooling — The UQFP-4RA-INT delivers up to 100 CFM of airflow to rapidly move warm rack air away from critical equipment, helping to maintain stable operating temperatures across dense equipment deployments. Despite the strong airflow, the unit operates at a remarkably quiet 27 dB, making it suitable for environments where acoustics are important, such as recording studios, control rooms, and broadcast facilities. This combination of robust cooling and quiet operation ensures sensitive equipment stays within manufacturer-recommended temperatures without adding disruptive noise to the workspace. The thermostatic control system automatically modulates fan speed in response to rack temperature, providing efficient cooling when loads spike while reducing energy use during lighter operations.
• Intake-only design for targeted cooling — This panel is engineered as an intake-only solution, pulling cool ambient air from the front of the rack to direct it across hot components and toward exhaust paths. By focusing airflow where heat builds up most, the UQFP-4RA-INT helps prevent hotspots that can degrade performance or shorten component life. The intake-only approach also simplifies airflow planning in dense rack environments and minimizes unnecessary recirculation, allowing your equipment to operate cooler with less effort from the cooling system as a whole. The robust construction and precise engineering of the panel ensure consistent performance across a wide range of rack temperatures.
• Sleek finish and rugged build — Finished in black brushed and anodized metal, the UQFP-4RA-INT not only delivers dependable cooling but also a professional aesthetic that complements premium rack systems. The durable finish resists wear from frequent front-panel access, cable movement, and vibration, maintaining its appearance while standing up to long-term use in demanding facilities. The panel is designed to integrate cleanly with standard 19-inch racks and Middle Atlantic’s own mounting configurations, offering both form and function in a compact, front-facing cooling solution that doesn’t compromise rack space or accessibility.
• Easy integration for professional environments — Built to fit standard rack ecosystems, the UQFP-4RA-INT integrates smoothly with compatible Middle Atlantic products and other 19-inch rack components. The module is designed to work with existing power and temperature monitoring schemes, allowing technicians to coordinate cooling with overall IT or audio/video infrastructure. Its intake orientation, combined with thermostatic control, supports consistent performance in real-world deployments where equipment density and heat loads can vary significantly. This makes it an attractive choice for installers seeking a balance of performance, reliability, and aesthetic cohesion in modern racks.
• Reliable operation with minimal maintenance — The thermostatic control system ensures the fan speed adjusts automatically to maintain target rack temperatures, reducing unnecessary wear on the fan motor and lowering energy consumption during cooler periods. This intelligent control translates into longer service life, reduced maintenance intervals, and predictable cooling performance. The panel’s solid construction, corrosion-resistant finish, and straightforward mounting contribute to a maintenance-friendly solution that rack technicians can rely on for years of dependable operation in busy data, AV, or communications environments.

Technical Details of Middle Atlantic UQFP Series Intake Only Fan Panel

• Model: UQFP-4RA-INT
• Airflow: 100 CFM
• Noise Level: 27 dB
• Control: Thermostatic control system
• Panel Type: Intake-only
• Finish: Black brushed and anodized
• Mounting: Compatible with standard 19-inch racks

how to install Middle Atlantic UQFP Series Intake Only Fan Panel

Install this intake panel in a standard 19-inch rack to achieve optimal cooling for dense equipment configurations. Before you begin, ensure power is disconnected and all hazards are mitigated. The following steps outline a general installation approach suitable for most compatible rack systems. Always refer to the official installation manual for model-specific instructions and safety guidelines.

1) Prepare the rack space: Remove any blanking panels or obstructions from the front of the rack slot where the panel will be mounted. Confirm there is clear access to front-panel mounting holes and that power availability aligns with your facility’s electrical standards. 2) Align the panel: Slide the UQFP-4RA-INT into the chosen front rack position and align the mounting holes with the rack’s rails. Ensure the panel is level and that there is adequate clearance for front air intake and any nearby cables. 3) Secure the panel: Use the appropriate screws or mounting hardware to fasten the panel securely to the rack rails. Do not overtighten, as that can damage the chassis or affect the seal around the panel edge. 4) Connect power and controls: Attach the panel’s power connector to the rack’s power distribution system or to an appropriate power source per the product’s wiring diagram. If applicable, connect temperature sensors or monitoring interfaces in accordance with the installation manual. 5) Verify operation: Reconnect power, power on the rack, and verify that the intake fan engages and reaches normal operating speed. Check that thermostatic control is functioning by simulating a higher rack temperature and observing the fan response. Confirm there are no obstructions to the intake and that airflow is visible through the front vent. 6) Final checks: Ensure cables are neatly organized to avoid blocking the intake, reapply any blanking panels if needed for airflow balance, and document the installation for future maintenance or compliance requirements.

Frequently asked questions

• Q: What is the primary purpose of the UQFP Series Intake Only Fan Panel? A: It provides focused front-intake cooling for rack-mounted equipment, helping to maintain safe operating temperatures with thermostatic control and low noise.
• Q: How much airflow does the panel deliver? A: Up to 100 CFM, enabling efficient removal of hot air from dense rack deployments while keeping acoustic levels to a quiet 27 dB.
• Q: Is this an intake-only design? A: Yes. The panel is designed to pull ambient air into the rack to promote effective cooling of internal components.
• Q: What finishes and materials are used? A: The unit features a black brushed and anodized finish on a rugged metal chassis designed for durability and professional presentation in visible rack environments.
• Q: Will this panel fit my standard rack? A: It is designed for standard 19-inch rack systems and integrates with Middle Atlantic’s line of compatible products for straightforward installation and alignment.
