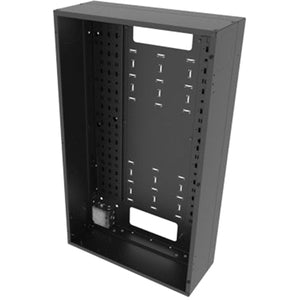

Middle Atlantic VWM Series Back Pan, 42" High, 16" Deep, Black Finish

The Middle Atlantic VWM Series Back Pan redefines how you design and deploy high-performance rack systems in a compact, low-profile wall cabinet. Engineered to complement the VWM Series, this back pan delivers the industry’s highest capacity and unmatched versatility for today’s equipment loads while staying ahead of tomorrow’s technology changes. Built to integrate seamlessly with the patent-pending VWM design, this back pan provides a robust rear mounting surface that helps you organize cables, maximize usable internal space, and keep equipment secure behind a sleek, space-efficient façade. If you’re aiming for professional-grade installs that look as good as they perform, the VWM Series Back Pan is the essential component that ties your system together with clean lines and dependable support.

• High-capacity rear platform: Maximizes space for mounting and organizing equipment behind the front access panel, enabling clean cable routing and simplified serviceability without sacrificing cabinet footprint.
• Low-profile, wall-mounted design: Engineered to sit flush with the wall and the VWM enclosure, preserving a slim silhouette while delivering rugged support for heavy or multiple devices.
• Generous dimensions: Sized at 42" high and 16" deep to accommodate a wide range of equipment configurations, from AV processors to networking gear and power distribution units, all behind a tidy rear surface.
• Durable black finish: A professional black powder-coated look that offers corrosion resistance, fingerprint resistance, and a timeless aesthetic that complements most interiors and equipment palettes.
• Straightforward integration with VWM systems: Specifically designed to align with the VWM Series back-end architecture, enabling quick installation, secure mounting, and dependable performance in commercial, educational, or broadcast environments.

Technical Details of Middle Atlantic VWM Series Back Pan

• Overall size: 42" high x 16" deep
• Finish: Black
• Compatibility: Designed for use with Middle Atlantic VWM Series wall cabinets

How to install Middle Atlantic VWM Series Back Pan

Installing the VWM Series Back Pan is a straightforward process designed to minimize downtime and maximize the reliability of your system. Follow these steps to ensure a secure and professional installation:

• Prepare the cabinet: Ensure the VWM wall cabinet is mounted securely to the wall or supporting structure according to the manufacturer’s instructions. Confirm there is access to the back mounting area for the back pan.
• Align the back pan: With the back pan components within reach, align the back pan’s mounting holes or attachment features with the corresponding locations on the cabinet’s back plane. Check for proper alignment to avoid misfit during seating.
• Secure the back pan: Use the appropriate fasteners supplied or recommended by Middle Atlantic to attach the back pan to the cabinet. Tighten hardware evenly to prevent warping and to maintain a flat, level back surface for equipment mounting and cable management.
• Route cabling and equipment: Once seated, route power, network, audio/video, and other cabling along the back surface or internal channels as designed to keep front access clean. Use any provided grommets, channels, or clips to maintain organization and reduce strain on cables.
• Test fit and power up: Re-check the fit of the installed equipment behind the back pan, verify the accessibility of ports and ventilation, and power on the system to confirm proper operation after installation.

Frequently asked questions

• What is the purpose of the VWM Series Back Pan? It provides a durable rear mounting surface within the VWM wall cabinet, allowing you to organize cables and securely mount equipment while preserving a sleek, low-profile exterior.
• What are the key dimensions? The back pan measures 42" in height and 16" in depth, with a black finish for a professional look.
• Is this back pan compatible with other Middle Atlantic cabinets? It is designed for the VWM Series wall cabinets and is optimized to integrate with that family’s back-end structure for best fit and performance.
• Does the back pan affect ventilation? The design supports proper airflow around mounted equipment when used in conjunction with the recommended cabinet configuration and any provided ventilation features.
• How does installation affect serviceability? The back pan is intended to simplify cable management and access, so you can service and upgrade equipment with minimal disruption to the front-facing front panel and door assembly.
