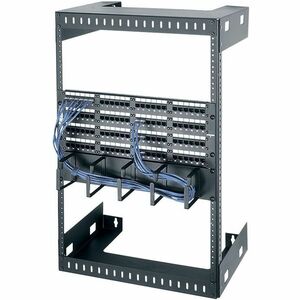

Middle Atlantic WM Series 8RU Open-Frame Wall Mounted Rack — 12in Depth

Maximize space efficiency and professional reliability in data centers, telecom closets, or demanding service environments with the Middle Atlantic WM Series 8RU Open-Frame Wall Mounted Rack. This compact, wall-mounted rack is purpose-built to house a wide range of data and telecommunications equipment while maintaining robust airflow, easy access, and scalable capacity. The self-squaring design makes installation precise and repeatable, a crucial advantage when deploying multiple racks or reconfiguring layouts as your network grows. With an open-frame, fixed-rail configuration, you get quick access to front and rear connections, simplified cable management, and minimal barrier to airflow—an essential combination for dense equipment stacks and fiber-optic deployments. The 12-inch depth, combined with 8U of mounting space, creates a space-saving solution that keeps IT gear close to the wall without sacrificing serviceability or performance. Built from durable materials and engineered to protect sensitive fiber optic components, this rack is an ideal backbone for fiber-rich networks, patch panel density, and compact server or switch configurations in professional environments.

• Self-squaring design for fast, precise assembly: The WM Series integrates a self-aligning frame that takes the guesswork out of mounting. Rails, panels, and hardware align automatically as you assemble, ensuring a square, stable rack from the first bolt. This feature reduces installation time, minimizes misalignment, and simplifies future reconfigurations when you expand your network or swap in new devices.
• Open-frame wall-mount with fixed rails for quick access: The open-frame construction provides unparalleled front-to-back accessibility, making it effortless to install, maintain, and re-cable without removing equipment. Fixed rails deliver stability while still allowing easy component insertion and removal, which is especially valuable when managing dense fiber panels, patch panels, and modular switches in tight spaces.
• Compact 8RU capacity in a 12" depth—perfect for space-constrained environments: This combination makes it ideal for wall closets, small data rooms, or above-workspace installations where floor space is at a premium. The 8U capacity supports a balanced mix of active devices, fiber-optic modules, and accessories, while the shallow depth keeps the footprint close to the wall and reduces the risk of accidental impacts or congestion around the rack.
• Fiber-friendly design that protects delicate optics: Recognizing the fragility of glass fibers, the WM Series is engineered to minimize bending and kinking. The open-frame approach avoids aggressive radius turns and provides generous clearance for fiber patch cords and transceivers. This makes it an excellent choice for fiber distribution panels, media converters, and optical gear that demands careful cable handling in confined installations.
• Rugged, versatile construction with broad compatibility: Built from sturdy steel and finished to endure the rigors of busy IT environments, this wall rack supports a wide range of accessories and mounting options. Its flexible layout accommodates patch panels, switches, media converters, and small form factor servers, enabling you to tailor a compact, organized solution that meets current requirements and scales for future upgrades.

Technical Details of Middle Atlantic WM Series 8RU Open-Frame Wall Mounted Rack

• Rack units (RU): 8U
• Depth: 12 inches
• Mounting type: Wall-mounted open-frame rack
• Frame features: Self-squaring design for alignment; fixed rails for stability
• Intended applications: Data, telecommunications, and fiber-optic equipment; ideal for patch panels, switches, transceivers, and small servers
• Construction: Heavy-duty steel with durable finish to resist wear and corrosion

How to install Middle Atlantic WM Series 8RU Open-Frame Wall Mounted Rack

Installing this wall-mounted rack is designed to be straightforward, but for best results, plan your layout, gather appropriate mounting hardware for your wall construction, and ensure proper weight distribution. The steps below outline a practical approach for professional-grade installations in commercial or office environments.

• 1) Plan mounting location and layout: Select a wall with solid structural support (studs or a backboard) capable of bearing the combined weight of the rack and all installed equipment. Confirm clearances for front and rear access, cable routing, and future expansion. Ensure the 12" depth will not conflict with nearby fixtures, doors, or ceiling obstructions.
• 2) Choose the right mounting hardware: Use heavy-duty fasteners compatible with your wall type (wood studs, metal studs, masonry, or concrete). Include appropriate washers and spacers to distribute load and prevent wall deformation. Confirm that the hardware can accommodate the rack’s mounting points and weight class.
• 3) Mark and prepare mounting points: With the rack in position, mark the wall through the mounting holes. Pre-drill pilot holes if needed, ensuring accuracy so the rack sits square and level. It often helps to have a second person assist to hold the frame steady during this step.
• 4) Secure the rack to the wall: Attach the rack securely at the designated points, ensuring the frame remains square and plumb. Tighten fasteners in a cross pattern to evenly distribute load and reduce warping. Double-check that the rack sits flush against the wall with no gaps that could compromise stability or airflow.
• 5) Manage cabling and prepare for equipment installation: Before loading devices, plan cable paths to separate power cables from data and fiber lines, supporting proper separation and heat management. Consider installing a backing panel or cable troughs to maintain a tidy, scalable cabling system as you populate the rack.
• 6) Install equipment and verify function: Slide in modular gear, patch panels, switches, and fiber components with care to maintain the integrity of cables and connectors. Route cables neatly along the fixed rails and through open-frame access, then power on devices to verify connectivity, interconnects, and cooling performance.

Frequently asked questions

• Q: What makes the WM Series 8RU Open-Frame Wall Mounted Rack suitable for fiber optics? A: Its open-frame construction and fiber-friendly design minimize bending and kinking risk for glass fibers, supporting reliable fiber patch panels, transceivers, and other optics-heavy equipment while maintaining easy access and airflow.
• Q: How much equipment can I install in 8RU? A: The 8U height provides versatile space for a mix of devices such as patch panels, switches, small servers, and fiber modules. The exact configuration depends on the depth of equipment, rail spacing, and clearance for cabling.
• Q: Is the rack suitable for use in a home setup, or is it strictly for commercial environments? A: While suitable for professional IT and telecom deployments, it can be used in any space that meets structural mounting requirements and safety guidelines. It’s especially beneficial in small offices or dedicated telecom closets where wall space is at a premium.
• Q: Do I get mounting rails with the rack? A: The WM Series uses an open-frame design with fixed rails; compatibility with additional rails or accessories depends on your exact configuration. Rails and accessories are often sourced separately to match your equipment choices.
• Q: Can I reuse this rack if I upgrade to larger equipment? A: Yes. The self-squaring assembly and open-frame layout simplify reconfiguration, and the 8RU capacity supports gradual expansion by swapping or adding compatible modules and patch panels while maintaining a compact wall footprint.
