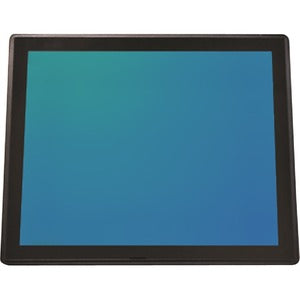

Mimo Monitors M19024C-OF 19" Class Open-Frame LCD Touchscreen Monitor – 5:4, 10 ms

The Mimo Monitors M19024C-OF is purpose-built for OEMs, system integrators, and embedded applications where a reliable, cost-effective touch solution matters. This 19" class open-frame LCD touchscreen combines a rugged molded metal enclosure with a projected capacitive (PCAP) touch surface, delivering precise multi-touch input and durable performance in demanding retail, kiosk, and industrial environments. With its 5:4 aspect ratio, the monitor is optimized for data entry, control panels, menus, and other interface layouts where vertical space is valuable and a clean, unobtrusive form factor is essential. Designed for long life-cycle deployments, the M19024C-OF helps streamline production schedules, reduce time to market, and deliver a consistent user experience across multiple units and generations.

• Open-frame PCAP touchscreen — This project capacitive touch technology supports accurate, responsive input with multi-touch capabilities, enabling intuitive gestures and fast interaction in high-traffic settings such as kiosks, POS terminals, and industrial control panels. The PCAP surface is designed for reliability in environments with frequent touch use and varying user contact.
• Rugged, molded metal enclosure — Engineered for durability and longevity, the open-frame chassis provides robust mechanical integrity, improved heat management, and a clean, professional appearance when integrated into customer enclosures or installations. The long-life enclosure helps align with standard product cycles in manufacturing and deployment where hardware refresh is staged over years.
• 19" class display with 5:4 aspect ratio — The 5:4 format is particularly well-suited to data-driven tasks, vertical layouts, and control-oriented interfaces. Its compact footprint fits a wide range of mounting options while delivering ample screen real estate for precise input, readable text, and clear graphics in embedded environments.
• Fast 10 ms touch response — A quick touch response is critical for fluid user experiences, especially in point-of-sale, customer kiosks, and process-control applications. The low-latency performance reduces perceived input lag and enhances accuracy during fast-paced interactions.
• OEM-friendly integration and connectivity — The open-frame design is built for straightforward integration into customer devices, dashboards, and enclosures. It supports standard USB touch input alongside common video interfaces, enabling streamlined integration into diverse platforms and minimizing development time.

Technical Details of M19024C-OF

• Model: M19024C-OF
• Display format: 19" class open-frame LCD touchscreen
• Touch technology: Projected capacitive (PCAP) touchscreen for precise, multi-touch input
• Aspect ratio: 5:4, optimized for forms, data entry, and panel-style interfaces
• Response time: 10 ms, delivering responsive interaction and reduced input latency
• Enclosure: Molded metal cycle-enclosure designed for durability and long product life cycles
• Mounting: Open-frame chassis intended for OEM integration into custom enclosures and devices
• Target applications: Retail kiosks, point-of-sale terminals, industrial control panels, embedded systems, and other data-entry interfaces

How to install M19024C-OF

• Prepare your host chassis or enclosure by confirming the opening dimensions, mounting provisions, and adequate clearance for cables and airflow. Ensure power is disconnected during installation.
• Position the M19024C-OF in the designated cutout or mounting frame within your enclosure. Align the device carefully to avoid bending or stressing the frame during seating.
• Secure the open-frame module using the appropriate mounting hardware specified for the enclosure. Use the recommended screws and any spacers necessary to achieve a flush, secure fit without warping the metal enclosure.
• Connect video to the host system using the supported display interface. Attach the USB cable for touch input if the platform or OS requires USB HID for PCAP touch. Route cables neatly to minimize wear and ensure reliable long-term operation.
• Power up the system and verify the display initializes correctly. Check that the touch surface responds across the full screen and that calibration is performed if required by the operating system or drivers.
• Calibrate and test: run any required touch calibration routine, verify multi-touch responsiveness, and validate the interface in your actual application scenario. Confirm stability under typical operating conditions (temperature, vibration, and dust exposure).

Frequently asked questions

• Q: What is the M19024C-OF?
  A: The M19024C-OF is a 19" class open-frame LCD touchscreen with projection capacitive input, designed for OEM and embedded deployments. It combines a rugged metal enclosure with a responsive touch surface and a 5:4 aspect ratio to fit dedicated control and data-entry interfaces.
• Q: What environments is it best suited for?
  A: It is ideal for retail kiosks, POS terminals, industrial dashboards, control panels, and other embedded systems where a reliable touch display is required in a compact, mountable form factor.
• Q: What about durability and lifecycle?
  A: The monitor is built with a long-life molded metal enclosure intended for extended production cycles, providing dependable performance across many units and years of deployment.
• Q: How do I install and wire the display?
  A: Installation typically involves placing the open-frame module into the host enclosure, securing it with hardware, and connecting the video input and USB touch cable. Power the system, calibrate if needed, and test for accurate touch response and display alignment.
• Q: Is calibration required?
  A: Depending on the OS and drivers used, touch calibration may be necessary to optimize accuracy. Follow the platform’s calibration steps or vendor guidance to ensure precise input across the screen.
