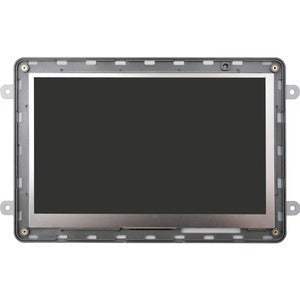

Mimo Monitors UM-760-OF 7" Class WSVGA Open-frame LCD Monitor - 16:9

The Mimo Monitors UM-760-OF is a compact 7-inch WSVGA open-frame LCD designed for seamless integration into embedded equipment and enclosures. Building on the trusted UM-760 family, this open-frame model delivers crisp, display-only visuals in a slim, chassis-friendly package, making it an ideal choice for OEMs seeking a cost-effective, plug-and-play supplement to their own product designs. With a 16:9 aspect ratio and a non-touch interface, the UM-760-OF emphasizes reliable performance, easy installation, and a clean aesthetic that blends effortlessly into control panels, kiosks, medical devices, industrial machines, and other compact installations. If you need a dependable display that disappears into your design while still delivering sharp content, the UM-760-OF is engineered to satisfy both design goals and production timelines.

• Open-frame design with a slim bezel that enables clean, minimal-profile integration into enclosures, chassis panels, or equipment housings, reducing overall device footprint while maintaining a modern look and feel for embedded displays.
• 7-inch WSVGA display (800x480) in a 16:9 aspect ratio, delivering a wide field of view in a compact size. This makes the UM-760-OF well-suited for UI dashboards, status screens, and compact operator interfaces where space is at a premium but readability remains essential.
• Non-touch, display-only configuration that keeps costs down and minimizes front-panel complexity. This is ideal for applications where touch interaction is not required, such as status indicators, ambient displays, or simple readouts in embedded systems.
• Consistent, familiar design language derived from the popular UM-760, providing dependable color accuracy and brightness for embedded deployments. The open-frame variant preserves the same core performance characteristics while enabling integration into custom enclosures and devices.
• Flexible installation and mounting options keep integration straightforward for engineers. The UM-760-OF is built to slot into panel cutouts or be secured within an enclosure using standard mounting methods, helping you reduce design risk and speed up time-to-market for embedded displays.

Technical Details of UM-760-OF

• Display type: Open-frame LCD panel designed for embedded integrations
• Screen size: 7 inches
• Resolution: WSVGA (800x480)
• Aspect ratio: 16:9
• Touch capability: Non-touch (display-only)
• Mounting/installation: Open-frame mounting suitable for panel cutouts and enclosure integration

how to install UM-760-OF

• Prepare the enclosure: Verify the enclosure cutout dimensions match the 7-inch open-frame module and ensure there is adequate clearance for cooling and wiring.
• Power and interfaces: Confirm the appropriate power supply and video input options for the UM-760-OF, and have mounting hardware ready for secure attachment inside the chassis.
• Secure the display: Align the UM-760-OF with the enclosure cutout and fasten it using the supplied mounting hardware or brackets designed for open-frame modules. Ensure the module sits flush and there is no bending of connectors.
• Connect video input: Attach the display’s video input to your embedded system or control board according to your platform’s interface (for example, VGA or other supported input formats in the solution). Double-check signal integrity and wiring routing to minimize interference.
• Power up and test: Apply power, boot the host device, and verify the display output. Check for proper geometry, brightness, contrast, and any potential edge-to-edge clipping. Calibrate if necessary and confirm consistent operation within the intended operating environment.

Frequently asked questions

• What is the UM-760-OF? It is a 7-inch open-frame LCD monitor in the UM-760 family designed for embedded applications. It provides a display-only, non-touch solution with a WSVGA resolution and a 16:9 aspect ratio for compact, integrated deployments.
• Is the UM-760-OF a touch screen? No. The UM-760-OF is a non-touch, display-only model intended for applications where touch input is not required or where touch is provided by a different interface or external accessory.
• What resolution does it use? The unit features WSVGA resolution, which is 800x480 pixels, suitable for clear UI elements, icons, and readable text on a 7-inch display.
• How can I install it in my enclosure? The open-frame design is intended for panel-cutout or enclosure integration. Secure the module with appropriate mounting hardware, ensure proper routing for power and video connections, and verify that airflow and cooling are sufficient for reliable operation in your environment.
• What applications is the UM-760-OF ideal for? Ideal for embedded control panels, industrial equipment interfaces, kiosks, medical devices with internal housings, and any compact display scenario where a clean, low-profile, display-only solution is preferred.
