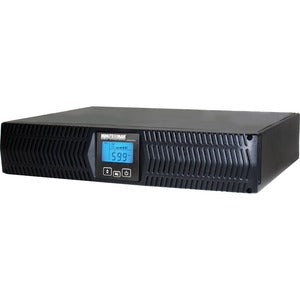

Minuteman Endeavor ED3000RTXL2UNC 3000VA UPS — Tower, Rack, or Wall Mountable
In today’s 24/7 business environment, downtime is not an option. The Minuteman Endeavor ED3000RTXL2UNC 3000VA UPS is engineered to deliver robust, uninterruptible power for critical applications, combining on-line double-conversion protection with flexible installation options. With an LCD interface, hot-swappable batteries, and comprehensive management features, this UPS is ready to defend servers, networking gear, storage systems, and other essential electronics from power disturbances while simplifying deployment and maintenance.
- Advanced on-line double-conversion topology: Provides a near-perfect sine-wave output with isolated neutral, protecting servers, networking gear, and storage from voltage sags, surges, and harmonic distortion, delivering consistent performance even under heavy loads and unstable mains conditions. This design minimizes downtime and ensures predictable latency for mission-critical applications.
- Flexible mounting and compact form factor: Standalone tower, 2-U rack, or wall-mount installation options let you deploy the unit exactly where you need it—data closets, offices, or lab spaces—without compromising available space. The versatile enclosure is designed to fit a wide range of rack systems and room layouts, enabling seamless integration into existing infrastructure.
- Intuitive LCD status display: Real-time metrics and actionable information are presented at a glance, including input/output voltage, current load, battery capacity, estimated runtime, and event logs. The LCD panel simplifies monitoring, configuration, and quick diagnostics, helping IT staff respond rapidly to changing conditions.
- Battery protection and easy maintenance: Hot-swappable sealed lead-acid batteries with smart battery management maximize runtime and extend service life. Built-in health monitoring detects aging batteries and prompts proactive replacement, reducing the risk of unexpected outages and enabling maintenance windows that won’t disrupt critical operations.
- Comprehensive connectivity and management: USB and serial interfaces support graceful shutdowns and local management, while optional SNMP/Relay Card options unlock remote monitoring, alerting, and integration with centralized management platforms. This makes it easier to enforce consistent backup policies across a fleet of devices and data centers.
Technical Details of ED3000RTXL2UNC
- Model: ED3000RTXL2UNC
- Capacity: 3000 VA / 2400 W (at 0.8 power factor)
- Topology: Online double-conversion (LCD On-line) for continuous, clean power
- Form factor: Tower, Rack, and Wall-Mountable for flexible deployment
- Display: LCD status panel provides real-time load, voltage, battery health, and runtime information
- Communications: USB and Serial ports; optional SNMP/Relay Card for remote management and monitoring
- Battery: Sealed lead-acid, hot-swappable; smart battery management with automatic voltage regulation (AVR)
- Input voltage: Auto-sensing 120/230 VAC (50/60 Hz)
- Output voltage: 120/230 VAC selectable; regulated output to protect connected equipment
- Efficiency: Optimized for high efficiency in online operation, reducing energy costs while preserving performance
- Transfer time: Near-zero transfer time (0 ms) to protect equipment during mains disturbances
- Operating environment: 0–40°C; non-condensing humidity; designed for reliable operation in office and data-center environments
- Audible noise: Designed for quiet operation appropriate for office settings and sensitive workspaces
How to install Minuteman Endeavor ED3000RTXL2UNC
Follow these installation guidelines to maximize protection and service life. Begin by selecting a stable, well-ventilated location with sufficient clearance for airflow and battery access. Decide whether you will deploy the unit as a tower, install it in a rack, or mount it on a wall, and use the appropriate hardware included with the UPS. Ensure the installation area is clean, dry, and free from excessive dust or direct exposure to heat sources. Place the UPS securely and level, avoiding vibrations that could loosen connections over time.
Next, connect the protected equipment to the UPS output outlets. Avoid overloading the UPS by attaching only critical devices and keeping nonessential gear on separate power strips if needed. Connect the UPS to the power source using the appropriate input plug or C13/C14 connections as specified in the user guide, ensuring the outlet is properly grounded. If you plan to monitor or manage the unit remotely, attach the USB cable to a management workstation or server and configure your software to receive alerts and perform graceful shutdowns when necessary. For extended runtimes, prepare to replace or upgrade the batteries with genuine Minuteman replacements; follow the user guide to safely perform hot-swap maintenance without interrupting connected equipment.
Power-on tests are recommended after installation. Use the LCD panel to confirm input and output voltages are within expected ranges, verify battery health, and run a soft shutdown test to ensure proper communication with connected devices. Regular maintenance should include battery health checks, firmware updates (if applicable), and periodic self-tests to verify readiness for outages. If you require centralized monitoring, install the optional SNMP card and configure it to integrate with your existing network management system, setting up alerts for battery health, load levels, and fault conditions. By following these steps, you ensure the ED3000RTXL2UNC delivers reliable uptime for your most critical systems while enabling straightforward maintenance and scalable protection as your environment evolves.
Frequently asked questions
- Q: What makes the Minuteman Endeavor ED3000RTXL2UNC different from other 3000VA UPS systems?
- A: It combines on-line double-conversion protection with a highly visible LCD status panel, flexible mounting options (tower, rack, or wall-mount), hot-swappable batteries for easy maintenance, and robust management features including USB/Serial interfaces and optional remote monitoring, delivering superior protection for critical workloads in diverse spaces.
- Q: Can I monitor this UPS remotely?
- A: Yes. Local monitoring is available via USB and Serial connections, and you can extend monitoring to the entire environment by adding an SNMP card for network-wide alerts and centralized management.
- Q: What loads is this unit suitable for?
- A: It is designed to protect servers, networking equipment, storage devices, and other sensitive electronics that require clean, stable power and rapid response during outages, while filtering input disturbances and maintaining consistent performance under varying loads.
- Q: What type of batteries does it use?
- A: The ED3000RTXL2UNC uses sealed lead-acid batteries with hot-swappable design and smart battery management to maximize reliability and simplify maintenance tasks.
- Q: How do I know when batteries need replacement?
- A: The LCD panel and built-in health monitoring provide battery status and aging indications. If the battery health declines or runtime drops significantly, plan a replacement with authentic Minuteman batteries to maintain protection levels.
