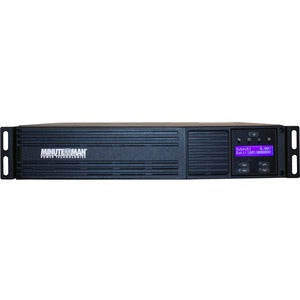

Minuteman EXR Series Line Interactive Uninterruptible Power Supply

Backup Versatility Redefined: The Minuteman EXR Series line-interactive UPS delivers pristine, reliable power when the grid fails or fluctuates. Built around true-sinewave output, this architecture preserves the integrity of sensitive equipment—from servers and networking gear to workstations and home-office devices. The EXR Series introduces a higher power factor for improved UPS efficiency, smart energy management, and auto-recognition of external battery packs for effortless runtime expansion. Whether you’re safeguarding a critical workstation, a small business network, or a home lab, the EXR Series provides scalable, dependable protection that minimizes downtime and protects valuable data. With advanced surge suppression, seamless automatic voltage regulation, and proactive battery management, it’s designed to keep your operations running smoothly, even when the power doesn’t.

• Line-Interactive Architecture with True-Sinewave Output: The EXR Series uses a sophisticated line-interactive topology to regulate voltage in real time, delivering clean, steady power to sensitive electronics. True-sinewave output ensures compatibility with a broad range of equipment, reduces heat and wear on power supplies, and minimizes waveform distortion that can affect performance and longevity.
• High Power Factor for Greater Efficiency: Optimized efficiency means more usable watts for your loads and less waste heat. A higher power factor translates to better runtime, lower electricity costs, and cooler operation—helping extend the life of the UPS and connected devices while delivering dependable backup during outages.
• Auto-Recognition of External Battery Packs: Smart battery extension makes it easy to scale runtime without complex configuration. When you attach compatible external packs, the EXR Series automatically recognizes them, providing extended backup for critical workloads and reducing the need for frequent battery swaps.
• Smart Battery Management and Graceful Shutdown: Integrated battery management optimizes charging cycles to prolong battery life, while intelligent monitoring and safe shutdown capabilities protect workstreams and data. USB or network management options offer real-time status updates, automated alerts, and proactive maintenance reminders.
• Comprehensive Protection for Critical Loads: Beyond voltage regulation, the EXR Series shields against surges, spikes, sags, and momentary outages. Sturdy construction, durable outlets, and robust circuit protection keep essential equipment safe—preserving uptime and minimizing disruption to operations.

Technical Details of Minuteman EXR Series Line Interactive Uninterruptible Power Supply

Technical specifications for the EXR Series are SKU-dependent. Exact numbers for power rating, battery capacity, outlet configuration, communication ports, and runtime vary by product SKU. For the most accurate data, refer to the specifications section on the official distributor page and match it to your product SKU (UPC or SKU) on ec.synnex.com. In general, the EXR Series emphasizes true-sinewave output, line-interactive regulation, smart battery management, and scalable runtime through external packs, all designed to deliver reliable power in diverse environments.

• Output Waveform: True sinewave for compatibility with sensitive loads and high-efficiency power conversion.
• Topology: Line-interactive UPS with automatic voltage regulation to correct short-term voltage fluctuations without using battery power.
• Efficiency and Power Factor: Enhanced power factor to maximize real watts delivered to connected devices.
• Runtime Expansion: Support for external battery packs to extend runtime for critical applications.
• Protection and Management: Integrated surge protection, battery management, and interfaces for monitoring and graceful shutdowns.

How to Install Minuteman EXR Series Line Interactive Uninterruptible Power Supply

• Choose a ventilated, Level floor location with adequate clearance around the UPS for cooling and safe access to outlets and ports.
• Place the UPS near the equipment you want to protect, ensuring the weight is supported and the unit is easily accessible for maintenance and self-tests.
• Connect the UPS to a dedicated AC outlet (as specified by the SKU) using the included power cord. Do not use extension cords or power strips that could compromise performance.
• Plug your critical devices into the UPS-protected outlets. Leave nonessential equipment on non-surge outlets if applicable to maximize runtime for essential gear.
• If you plan to expand runtime, attach compatible external battery packs as instructed by the user manual. The EXR Series will recognize compatible packs automatically and integrate them into the runtime calculation.
• Connect the USB or network management card to monitor status, configure alerts, and set shutdown parameters. Install compatible monitoring software on your computer or server to receive event notifications and to automate safe shutdowns during outages.
• Power on the UPS and perform a self-test to verify operation. Confirm that the loads stay powered during simulated outages and that management software reports accurate status.
• Configure settings such as alarm thresholds, auto-shutdown timing, and surge protection preferences to align with your operational policies and data protection requirements.

Frequently asked questions

• What is a line-interactive UPS? A line-interactive UPS regulates voltage by using a automatic voltage regulation circuit while remaining connected to the mains. It provides clean power to connected equipment and handles short-term fluctuations without draining the battery, reserving runtime for extended outages.
• What does true-sinewave output mean for my equipment? True-sinewave output mimics the smooth, continuous waveform of utility power, which is essential for sensitive electronics, medical devices, and precision equipment. It reduces electrical noise, ensures stable performance, and extends the life of power supplies.
• Can I add external battery packs to the EXR Series? Yes. The EXR Series is designed to auto-recognize compatible external battery packs, enabling scalable runtime without complex configuration, so you can tailor backup capacity to your needs.
• What software is used to monitor the UPS? Most Minuteman EXR Series units support USB or network management cards and are compatible with common UPS monitoring software. This allows real-time status updates, event logging, and automated shutdowns to protect data integrity during outages.
• How long will my equipment run during an outage? Runtime depends on the SKU, the connected load, and whether external battery packs are used. For accurate runtimes, consult the specifications for your SKU and simulate a blackout using the UPS self-test to gauge performance.
