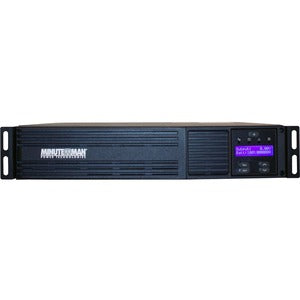

Minuteman EXR Series Line Interactive Uninterruptible Power Supply

Experience uninterrupted power with the Minuteman EXR Series Line Interactive Uninterruptible Power Supply. Designed for reliability in homes, small businesses, and professional environments, the EXR Series combines true-sinewave output with a smart, scalable architecture that protects your critical devices from outages, voltage sags, and power disturbances. Featuring a higher power factor for improved efficiency, automatic recognition of external battery packs for effortless runtime expansion, and a compact, quiet footprint, the EXR Series delivers clean, dependable power when you need it most. Whether you rely on servers, workstations, networking gear, or essential electronics, the EXR Series helps you stay productive, safeguard data, and maintain operations through outages and grid fluctuations.

• True-sinewave output delivers clean, stable power ideal for sensitive equipment—reducing data loss, unexpected reboots, and hardware wear during outages or voltage irregularities.
• Higher power factor improves UPS efficiency, meaning more usable watts from each battery charge and lower energy costs over the unit’s lifespan while preserving battery life.
• Auto-recognition of external battery packs enables scalable runtime without complicated setup, so you can grow your backup capacity as your needs evolve.
• Line-interactive topology with Automatic Voltage Regulation (AVR) stabilizes brownouts and overvoltages, minimizing battery cycling and delivering consistent performance even when the grid wobbles.
• Comprehensive monitoring and control options, including USB and RS-232 interfaces and optional networking capabilities, provide real-time status, automated shutdown, and proactive protection for your assets.

Technical Details of Minuteman EXR Series Line Interactive Uninterruptible Power Supply

• Topology: Line-Interactive UPS with Automatic Voltage Regulation (AVR) to stabilize voltage without unnecessary battery use.
• Output waveform: True sinewave at standard frequencies, ensuring compatibility with sophisticated electronics and sensitive IT gear.
• Input voltage: Configurable to match regional standards (e.g., 120/208/230 VAC depending on model and country).
• Output voltage: Nominally matches local grid voltage (120/230 VAC options; settings may vary by SKU).
• Power capacity: EXR models span a range from hundreds of VA to over a thousand VA; exact ratings depend on the chosen SKU—consult the product sheet for model-specific data.
• Efficiency: Optimized for high efficiency in normal operation, reducing heat and energy usage while maximizing battery life during discharges.
• Battery system: Internal sealed lead-acid batteries with maintenance-free design; some configurations support external battery packs to substantially extend runtime.
• Recharge time: Typical recharge to full after a discharge; actual time varies with load and battery configuration.
• Runtime: Dependent on load and battery setup; external battery packs offer significantly longer runtimes for prolonged outages.
• Protection features: Surge protection, overcurrent, overload protection, short-circuit protection, and an automatic internal bypass to keep essential loads energized.
• Communications: USB and RS-232 interfaces available for local control; SNMP or network management options may be available on select SKUs via adapters or cards.
• Diagnostics and management: Built-in indicators and, in some models, an LCD display; compatible with common UPS management software for monitoring, event logging, and safe shutdown.
• Warranty and service: Typical coverage ranges from 2 to 3 years depending on model and region, with access to technical support and replacement components as provided by the manufacturer.

How to install Minuteman EXR Series Line Interactive Uninterruptible Power Supply

Proper installation ensures optimal performance, maximum battery life, and reliable protection for your equipment. Start by selecting a suitable location—dry, well-ventilated, away from heat sources, water, or excessive dust. The unit should stand on a stable surface with clear space for airflow and any attached external battery packs. Keep cords tidy to prevent tripping hazards and to maintain unobstructed vents on the UPS.

• Unbox and verify contents: Ensure the UPS, power cord, user manual, and any external battery cables or adapters for your SKU are present and undamaged.
• Initial battery conditioning: Connect the UPS to a wall outlet and allow the internal battery to charge for 8–12 hours before applying load; this conditions the battery for accurate runtime readings.
• Load placement: Plug critical devices (servers, NAS, networking gear, workstations) into the UPS’s battery-backed outlets. Non-critical peripherals can be placed on surge-only outlets if provided, optimizing battery use for essential equipment.
• AC power connection: Use the appropriate regional power cord to connect the UPS to a dedicated wall outlet with sufficient amperage. Ensure the outlet matches the UPS input specification and that the circuit can handle the connected load.
• Battery pack integration: If using external battery packs, connect them to the dedicated connectors and follow the unit’s prompts or display indicators to recognize the additional runtime. Perform a test after connection to verify performance.
• Monitoring setup: Connect the USB (or RS-232) cable to a computer and install the included or recommended management software. Configure alert thresholds, automatic shutdown, and notification methods to protect your data and devices during an outage.
• Testing and safety: Run a controlled self-test from the UPS control panel to verify startup sequencing, protection features, and battery health. Confirm proper operation of alarms, indicators, and load transfer behavior.
• Maintenance planning: Schedule regular battery health checks and firmware or software updates when available; maintain ventilation clearance and keep the area free of dust and moisture to maximize longevity.

Frequently asked questions

• What is the Minuteman EXR Series Line Interactive UPS? The EXR Series is a line-interactive uninterruptible power supply featuring true-sinewave output, AVR-based voltage regulation, and support for external battery packs to extend runtime. It protects critical devices from outages, sags, surges, and other grid disturbances while maintaining efficient operation.
• What does true-sinewave output mean? True-sinewave output provides smooth, consistent electrical power that matches utility-grade power, enabling reliable operation for servers, networking equipment, and sensitive electronics without misfires or data loss.
• Can I extend runtime with external battery packs? Yes. The EXR Series supports auto-recognition of external battery packs, allowing you to scale runtime quickly and easily as demands grow.
• How long will the battery run my devices? Runtime depends on the number and type of devices connected, the UPS model, and the use of any external battery packs. Heavier loads shorten runtime; lighter loads extend it. Consult the product data sheet for model-specific estimates.
• How do I monitor and manage the UPS? Use the USB or RS-232 connection to a computer and install the included management software for real-time monitoring, automatic shutdown, and alert notifications. Optional network management capabilities may be available on select SKUs.
• What warranty comes with the EXR Series? Warranty terms vary by model and region but typically range from 2 to 3 years, with service coverage and battery replacement options as provided by the manufacturer.
