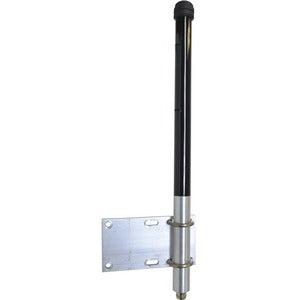

Mobile Mark OD6-2400-BLK Antenna

Mobile MarkSKU: 4842100

Price:
Sale price$129.91

Description

Mobile Mark OD6-2400-BLK Antenna

The Mobile Mark OD6-2400-BLK Antenna is a member of the OD Series designed to deliver reliable omni-directional coverage for WiFi 2.4 GHz networks. Engineered as a colinear array, this antenna provides solid performance across the entire 2.4 GHz band, making it an excellent choice for access points, wireless routers, and multi-user environments where uniform signal delivery is essential. The OD Series offer four models with gains spanning from 3 to 12 dBi, giving network planners the flexibility to balance coverage radius with user density. The OD6-2400-BLK, in particular, emphasizes a balanced approach: a mid-range gain combined with broad, 360-degree horizontal coverage to support roaming clients and multiple devices without the need to aim the antenna. Built with a focus on clean RF performance, this antenna relies on a unique phasing scheme to optimize current distribution and minimize efficiency losses that can occur with multi-element arrays. In practice, this means steadier connections, more consistent throughput, and a greater likelihood that devices experience reliable access as soon as they join the network. The OD Series are designed for free-space operation, simplifying installation in a variety of environments—from office floors to campus hallways and retail spaces—where a discreet, unobtrusive antenna is preferable. With a compact Black finish, the OD6-2400-BLK blends into most settings while delivering dependable 2.4 GHz coverage and scalable performance as your wireless network evolves. This combination of omni-directionality, phased colinear design, and mid-range gain makes the OD6-2400-BLK a versatile solution for modern WiFi deployments that demand consistent service across many clients and devices.

  • Omni-directional WiFi coverage in the 2.4 GHz band: The OD6-2400-BLK radiates signal evenly around the antenna, ensuring users can connect from any azimuth angle without repositioning or realigning equipment. This makes it ideal for central access points in offices, classrooms, retail floors, and small-to-medium business networks where uniform, all-around coverage reduces dead spots and touchpoints, enhancing user experience and connectivity reliability.
  • Mid-range gain with a colinear array: The OD6-2400-BLK provides 6 dBi gain within a compact colinear design. This combination yields greater reach than low-gain antennas while preserving broad, 360-degree coverage. The result is improved signal strength at moderate distances and through typical indoor obstacles, helping to maintain robust connections for multiple devices as they roam within the coverage area.
  • Flexible OD Series family with four gain options: The OD Series encompasses models offering 3, 6, 9, and 12 dBi gains, giving network engineers a straightforward path to scale coverage. The OD6-2400-BLK sits at the midpoint, delivering a balanced blend of coverage radius and capacity for high-density environments without resorting to high-gain solutions that may narrow the effective coverage angle or exacerbate interference in crowded RF spaces.
  • Phased, free-space colinear design for improved efficiency: The antenna employs a carefully engineered phasing approach that cancels out-of-phase current distribution. This technology helps smooth the radiation pattern and minimizes destructive interference, contributing to steadier performance across the 2.4 GHz band. With this design, networks can achieve more uniform throughput and more predictable client experiences, even in environments with multiple overlapping wireless networks.
  • Compact, purpose-built for free-space operation: The OD6-2400-BLK is designed as a free-space antenna, making it suitable for installations where ground-plane considerations are minimal or where a unobtrusive external antenna is preferred. Its compact form and black finish support easy mounting on walls, ceilings, masts, or rooftops, while preserving the aesthetic of the space and reducing visual impact on customers or occupants.

Technical Details of Mobile Mark OD6-2400-BLK Antenna

  • Frequency: 2.4 GHz WiFi applications
  • Gain: 6 dBi (OD6 variant)
  • Antenna type: Colinear array
  • Radiation pattern: Omni-directional (360-degree coverage in the horizontal plane)
  • Construction: Free-space antenna
  • Color/model designation: Black (BLK)

how to install Mobile Mark OD6-2400-BLK Antenna

Installing the OD6-2400-BLK is a straightforward task that suits a wide range of WLAN deployments. Begin by choosing a mounting location that offers elevated positioning and a clear line of sight in the horizontal plane to maximize omni-directional performance. This often means mounting on a mast, pole, wall bracket, or ceiling mount that can securely support the antenna and withstand environmental conditions in the intended setting. Attach the antenna using the appropriate mounting hardware and fastenings recommended by the manufacturer, taking care to avoid over-tightening which could damage the enclosure or the internal elements. Connect the RF cable from your 2.4 GHz radio, access point, or wireless bridge to the antenna’s connector using a 50-ohm impedance cable suitable for RF transmission. Ensure all connections are clean, dry, and properly sealed if the installation will be exposed to weather. Route the cable in a way that minimizes bending radius and protects against physical damage, avoiding sharp bends that could degrade signal quality. After mounting and cabling, power up the wireless device and verify coverage by walking the area to confirm consistent signal strength and throughput from multiple directions. If the installation will occur outdoors, consider weatherproofing measures and cable management that align with local electrical and building codes. Finally, document the installation parameters (location, mounting height, and cable length) for future maintenance or reconfigurations, and schedule periodic performance checks to ensure the omni-directional pattern continues to meet your network’s coverage goals.

Frequently asked questions

  • Q: What frequency does the OD6-2400-BLK support? A: It is designed for 2.4 GHz WiFi applications, optimized to deliver reliable coverage in the commonly used 2.4 GHz band.
  • Q: What is the gain of this antenna? A: The OD6-2400-BLK provides 6 dBi gain, placing it in the mid-range of the OD Series for balanced coverage and performance.
  • Q: What kind of radiation pattern does it have? A: It offers omni-directional coverage in the horizontal plane, delivering uniform signal strength around the antenna without requiring directional aiming.
  • Q: How does the OD Series differ from other 2.4 GHz antennas? A: The OD Series use colinear array construction with unique phasing to improve current distribution, reduce interference, and enhance overall efficiency across the band. Available gains range from 3 to 12 dBi to fit different deployment needs.
  • Q: Is installation difficult? A: No. The OD6-2400-BLK is designed for straightforward installation on standard mounting hardware. Use appropriate weatherproofing and cable management when deploying outdoors, and follow manufacturer guidelines for torque and impedance matching to ensure optimal performance.
