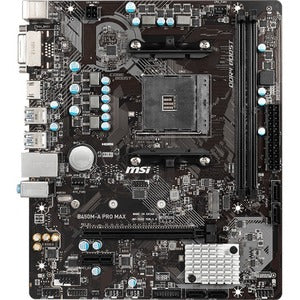

MSI B450M-A PRO MAX Desktop Motherboard — AMD B450 Chipset, Socket AM4, Micro ATX

Unlock solid performance and versatile expansion with the MSI B450M-A PRO MAX, a micro ATX motherboard designed for mainstream gamers and productivity enthusiasts. Built on the AMD B450 chipset and optimized for the modern AMD AM4 ecosystem, this board delivers dependable power delivery, fast memory support, and flexible storage options. It’s engineered to handle 1st, 2nd, and 3rd Gen AMD Ryzen processors with Ryzen GPUs, ensuring a compelling upgrade path for builders seeking reliable performance, easy BIOS updates, and durable everyday operation. Whether you’re assembling a compact gaming rig or a compact workstation, the MSI B450M-A PRO MAX blends essential features with a robust design to keep your system stable and responsive under load.

• Core Boost power delivery: A precise, optimized power design helps ensure stable operation for Ryzen CPUs, delivering clean, efficient power and enabling smoother performance during multitasking and gaming workloads. This design minimizes voltage fluctuations and supports long-term reliability for everyday usage and light overclocking.
• DDR4 Boost for memory performance: Dedicated memory circuits and carefully laid traces enhance signal integrity for DDR4 memory modules. Expect tighter memory latencies, higher stability, and improved bandwidth—beneficial for gaming, content creation, and multitasking scenarios that rely on fast RAM.
• Turbo M.2 and PCIe storage: One Turbo M.2 slot provides blazing-fast NVMe storage options, reducing boot times, accelerating game load times, and elevating overall system responsiveness. Combine with SATA drives for flexible storage configurations and data organization.
• USB 3.2 Gen 1 connectivity: A generous array of USB 3.2 Gen 1 ports on the rear panel and front headers ensures speedy peripherals, external drives, and VR-ready devices connect with minimal lag. This enhances productivity workflows and gaming setups that rely on fast USB peripherals.
• AMD Ryzen compatibility and upgrade path: Supports 1st, 2nd, and 3rd Gen AMD Ryzen processors with Socket AM4, delivering a broad upgrade path for builders and upgraders. The board is designed to be compatible with a range of Ryzen CPUs and Radeon graphics options, enabling flexible system builds without frequent motherboard changes.

Technical Details of MSI B450M-A PRO MAX Desktop Motherboard

• Chipset: AMD B450
• Socket: AM4
• Form Factor: Micro ATX
• Memory: 2 x DIMM sockets, DDR4, up to 64GB total, speeds support 3200+(OC) MHz depending on CPU and memory
• Memory Features: DDR4 Boost for improved stability and performance, supports dual-channel operation
• Expansion Slots: 1 x PCIe 3.0/2.0 x16 (graphics), 1 x PCIe 2.0 x1, with additional PCIe slots for expansion cards
• Storage: 1 x M.2 slot (Turbo M.2, PCIe NVMe), 4 x SATA 6Gb/s ports
• USB: USB 3.2 Gen1 ports on rear I/O and through internal headers for front-panel USB connections
• Networking: Realtek Gigabit LAN for reliable wired connectivity
• Audio: High-definition onboard audio solution compatible with standard 7.1-channel configurations
• BIOS: MSI Click BIOS 5 for intuitive configuration and system tuning
• Cooling & Build: Durable components and a design focused on reliable operation with good airflow in compact builds
• RGB & Aesthetics: Subtle, enterprise-grade look suitable for professional or gaming rigs; supports standard cooling and cable management practices

How to Install MSI B450M-A PRO MAX

• Prepare your workspace on a flat, static-free surface. Ground yourself before handling components to avoid electrostatic damage, and keep screws and standoffs organized for an efficient build.
• Install the CPU: Open the AM4 socket lever, align the CPU with the socket’s corner marker, and gently seat the processor. Lower the lever to secure the CPU in place. Apply a small amount of thermal paste if your cooler requires it, then mount the CPU cooler and connect its fan to the CPU fan header.
• Install memory: Open the DDR4 DIMM slots and align the memory modules with the notch. Insert firmly into the correct dual-channel slots as indicated by the motherboard user guide (often the A2/B2 slots for two sticks). Ensure both modules click into place with even seating.
• Mount the motherboard: Install the I/O shield into the case, align the motherboard with the case standoffs, and secure it with screws. Check that the board sits flat and does not short on any standoffs.
• Connect power: Attach the 24-pin ATX power connector and the 8-pin (or 4+4-pin) CPU power connector from your power supply. Ensure all power connectors are fully seated and routed cleanly to avoid interference with fans or components.
• Install storage and expansion cards: Insert your NVMe SSD into the M.2 slot and secure with the provided screw. Connect SATA drives to the motherboard ports and route cables for airflow. Install your graphics card into the PCIe x16 slot, securing it with screws and connecting PCIe power if required by the GPU.
• Case connections and peripherals: Connect the front panel USB, audio, and power/reset buttons to the corresponding headers on the motherboard according to the manual. Attach case airflow fans to the motherboard or chassis fan headers to optimize cooling performance.
• First boot and BIOS setup: Power on the system and enter the BIOS/UEFI (usually by pressing Del or F2 during startup). Enable XMP for memory speed if supported by your RAM, set the boot sequence, and check that all components are recognized. Update the BIOS if a newer version is available from MSI’s official site to improve Ryzen compatibility and stability.
• Driver installation and updates: After installing the operating system, install the latest chipset drivers, LAN, audio, and PCIe/NVMe drivers from MSI’s website. This ensures optimal performance, security, and system stability with the most current software.

Frequently asked questions

• Q: What CPUs does the MSI B450M-A PRO MAX support?
• A: It supports 1st, 2nd, and 3rd Gen AMD Ryzen processors with Socket AM4. For best results and feature compatibility, check MSI’s CPU support list and consider updating the BIOS to the latest version before installing newer Ryzen CPUs.
• Q: How many memory modules can I install and what is the maximum RAM?
• A: The board features 2 DIMM slots supporting up to 64GB of DDR4 memory. Memory speed support depends on the CPU and RAM module; enabling XMP can unlock higher speeds where supported.
• Q: Does this motherboard include an M.2 slot?
• A: Yes, it has a Turbo M.2 slot that supports PCIe NVMe SSDs for fast storage performance and quicker system responsiveness.
• Q: How many USB ports are available and what USB generation is supported?
• A: The board provides USB 3.2 Gen 1 ports (both rear and front-panel headers) for fast peripheral connections, along with additional USB 2.0 options depending on the rear I/O and headers.
• Q: Is the MSI B450M-A PRO MAX suitable for entry-level gaming?
• A: Absolutely. Its robust power design, reliable memory performance, M.2 storage, and PCIe expansion options support a comfortable mid-range gaming setup with Ryzen CPUs and discrete GPUs, while remaining compact in a Micro ATX form factor.
• Q: Do I need to update the BIOS to use newer Ryzen processors?
• A: In many cases, updating the BIOS to the latest MSI release improves compatibility and stability with newer Ryzen CPUs. Always consult MSI’s CPU support list and follow their BIOS update instructions for the best results.
