Description

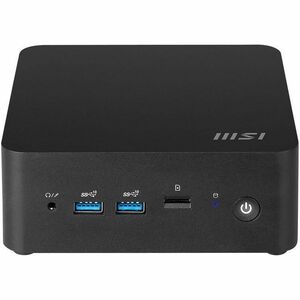

MSI Cubi NUC 009BUS Mini PC Barebone
The MSI Cubi NUC 009BUS Mini PC Barebone is a purpose-built compact powerhouse designed to disappear into your workflow while delivering substantial performance. This non-OS mini PC is the ideal client device for digital signage, back‑end services, or front‑end user interfaces where space is at a premium and reliability is non‑negotiable. With a footprint that fits discreetly behind a monitor or tucked away less than six inches from the back wall, the Cubi NUC makes it possible to deploy high‑impact computing without sacrificing aesthetics or desk space. It can drive up to three independent displays, enabling multi‑zone signage, synchronized dashboards, or a streamlined multi‑workspace setup. Built for continuous operation in busy environments, the Cubi NUC is engineered to stay cool and quiet, ensuring stable performance in public venues, control rooms, retail kiosks, and office ecosystems. The device ships with a three‑year advanced replacement warranty, underscoring MSI’s commitment to uptime and long‑term support for mission‑critical deployments. Whether you are building a digital signage network, a compact kiosk, or a lightweight desktop experience, the Cubi NUC 009BUS provides a flexible, scalable foundation that you can tailor to your exact needs by adding RAM, storage, and your preferred operating system.
- Ultra-compact, space-saving design that can be mounted behind a display or tucked into a tight cabinet, with a profile that minimizes intrusion in high‑traffic spaces while maintaining strong performance.
- Multi‑display capability that supports up to three independent displays, enabling vibrant digital signage, synchronized dashboards, or multi‑screen control panels for complex workflows.
- Barebone flexibility means you supply RAM, storage, and an operating system of your choice, giving you full control over performance, storage capacity, and software compatibility for signage networks or kiosk tasks.
- Performance oriented with an Intel Core 7-150U processor designed for efficiency and reliable everyday computing, ensuring smooth UI responsiveness, fast media handling, and steady operation under load.
- Reliable, enterprise-grade support with a 3‑year advanced replacement warranty, making it a dependable backbone for 24/7 signage, client services, or front‑end interfaces where downtime matters.
Technical Details of MSI Cubi NUC 009BUS Mini PC
- Processor: Intel Core 7-150U
- Form factor: Barebone mini PC
- Operating system: Non-OS (no operating system included)
- Memory and storage: RAM and storage not included; user installs compatible memory and storage to suit the application
- Display support: Capable of driving up to 3 independent displays, depending on configuration and connectors
- Graphics: Integrated Intel graphics engine suitable for digital signage, UI rendering, and lightweight multimedia
- Warranty: 3-year advanced replacement warranty
How to install MSI Cubi NUC 009BUS Mini PC
- Prepare your components: choose compatible RAM (SODIMM, as required by the Cubi NUC), and select storage (M.2 NVMe or SATA, per your model’s specifications). Refer to the manual for supported speeds, capacities, and interface types to ensure compatibility.
- Open the barebone enclosure: power off the unit, remove the access panel as directed in the manual, and locate the RAM slots and storage interface. Handle components with care and use an anti-static strap if available.
- Install memory: insert the RAM modules into the memory slots with the notch aligned, then press firmly until the latches click into place. Ensure the RAM is seated evenly and fully before resealing the chassis.
- Install storage: insert the M.2 drive into the appropriate slot or mount a 2.5" drive if supported, securing it with screws. Confirm the drive is recognized in the BIOS/UEFI once powered on for the first time.
- Reconnect and boot: reattach the panel, connect a display, keyboard, and mouse, then apply power. Enter the BIOS/UEFI to configure boot options, enable any required integrated peripherals, and set the desired drive as the primary boot device. Install your preferred operating system and any signage software or front‑end UI you plan to use. Update firmware and drivers to ensure optimal performance and security.
Frequently asked questions
- Does the MSI Cubi NUC 009BUS come with RAM or storage? No. It is a barebone unit and requires you to install RAM and storage to fit your application. This gives you full control over capacity, performance, and cost based on your signage or kiosk needs.
- How many displays can it drive? The Cubi NUC 009BUS supports up to three independent displays. The exact number of usable displays depends on the available connectors on the unit and the capabilities of the installed graphics hardware, but it is designed to handle multi‑display configurations suitable for digital signage and multi‑monitor workstations.
- Is an operating system pre-installed? No. This model ships as a Non-OS Barebone, so you can install Windows, Linux, or another OS of your choice to meet your deployment requirements.
- What is the warranty? The MSI Cubi NUC 009BUS comes with a 3-year advanced replacement warranty, offering responsive service and minimized downtime for business-critical applications.
- Is this suitable for 24/7 operation? The Cubi NUC is designed for reliability in compact form factors and is commonly deployed in signage, kiosks, and edge‑compute scenarios. For 24/7 workloads, ensure proper cooling, select appropriate RAM/storage configurations, and follow MSI’s guidelines for continuous operation to maximize uptime.
