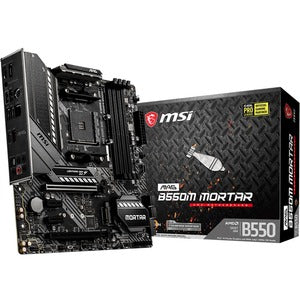

MSI MAG B550M Mortar: Compact AMD Gaming Power in Micro-ATX Form

The MSI MAG B550M Mortar is a premium Micro-ATX motherboard built for serious gaming and high-performance content creation. Grounded in the AMD B550 chipset and equipped with an AM4 socket, this board delivers the modern features you need for a fast, stable system without sacrificing space or airflow in smaller cases. Designed to conquer demanding titles and multitasking workloads, the Mortar blends rugged durability with a streamlined, user-friendly experience—from easy installation to intuitive BIOS tuning and robust cooling solutions. Whether you’re building a compact Ryzen-powered gaming rig or a capable workstation, the MAG B550M Mortar offers the reliability and performance to keep every component glued to the top of its game.

• Performance-driven VRM and cooling: Engineered with a sturdy power delivery system and heat dissipation design, the MAG B550M Mortar keeps voltage stable under load, enabling smooth overclocking headroom for supported CPUs. The integrated cooling solution includes well-placed heatsinks and an optimized layout to manage heat during long gaming sessions or GPU-heavy workloads.
• Advanced storage and expansion: Dual M.2 slots with cooling protection ensure fast NVMe SSD performance, while six SATA ports provide ample data storage options for games, media, and backups. The PCIe 4.0-ready PCIe x16 slot supports modern GPUs, and additional PCIe lanes from the chipset handle other add-on cards with ease.
• Comprehensive connectivity: Expect fast USB access with USB 3.2 Gen 2 support for peripherals and storage devices, along with reliable wired networking for low-latency online gaming and smooth file transfers. Built with a focus on compatibility, this motherboard supports a wide range of hardware configurations and peripherals.
• Premium audio and gaming features: The board includes dedicated audio features designed for immersive sound, with high-quality audio capacitors and isolation for cleaner, crisper in-game dialogue, music, and voice chat. Audio Boost and related enhancements deliver a richer, more accurate soundstage for an edge in competitive play or cinematic experiences.
• Solid build and future-proofing for Ryzen: The MAG Mortar’s micro-ATX footprint fits a wide array of cases, from compact builds to mid-tower setups. Durable components, extensive BIOS options, and MSI’s software ecosystem enable easy tuning, monitoring, and updates, helping you extend the life of your motherboard as new Ryzen CPUs and features emerge.

Technical Details of MSI MAG B550M Mortar

• Form Factor: Micro-ATX
• Chipset: AMD B550
• Socket: AM4
• Memory: 4 x DIMM, DDR4, up to 128 GB, commonly rated for speeds up to DDR4-4400+(OC)
• Expansion Slots: 1 x PCIe 4.0/3.0 x16 (GPU), 2 x PCIe 3.0 x1
• Storage: 2 x M.2 slots, 6 x SATA III
• Networking: 1 x LAN (RJ-45)
• Audio: Realtek High Definition Audio with dedicated Audio Boost features
• USB: USB 3.2 Gen 2 support for rear I/O; front-panel USB headers supported
• Special Features: M.2 Shield FROZR (drive cooling), enhanced VRM and heatsink design, BIOS Flashback capability for easy updates

How to Install MSI MAG B550M Mortar

• 1. Prepare your workspace and components: gather the MSI MAG B550M Mortar, a compatible Ryzen CPU, memory modules, a power supply, and your chosen SSD/HDD. Ensure you have an anti-static mat or wrist strap to protect sensitive electronics.
• 2. Install the CPU: lift the socket lever, align the CPU with the AM4 socket using the notches on the processor, lower it gently, and secure the latch. Apply thermal paste if your cooler requires it, or attach a stock cooler if provided with pre-applied paste.
• 3. Install RAM: insert memory modules into the appropriate DIMM slots, ensuring the notch aligns with the slot indicator. Press firmly until the latches click into place.
• 4. Mount the motherboard: place the MAG Mortar into your PC case, aligning it with the rear I/O shield and case standoffs. Secure the board with the appropriate screws, ensuring it sits flat.
• 5. Connect power and cooling: attach the 24-pin ATX power connector and the 8-pin CPU power connector (or 4+4-pin, depending on your PSU). Install your CPU cooler and connect its fan header to the CPU fan header on the motherboard.
• 6. Install storage and expansion cards: insert your NVMe SSDs into the M.2 slots with the proper screws, then install any additional PCIe devices (like a GPU) into the PCIe x16 slot. Attach SATA drives to the SATA ports as needed.
• 7. Connect front panel and peripherals: attach the case’s front-panel connectors (power switch, reset, power LED, HDD LED) and USB headers to the corresponding motherboard pins. Connect case fans to the fan headers for cooling, and connect the rear I/O devices (keyboard, mouse, monitor) to the appropriate ports.
• 8. BIOS setup and updates: power on and enter the BIOS to configure boot order, XMP/DOCP memory profiles, fan curves, and any overclocking settings you plan to apply. If a BIOS update is recommended, use BIOS Flashback or the MSI software utility to apply it safely.
• 9. Install an operating system: with the system configured, install your preferred OS and drivers. Keep chipset, audio, LAN, and graphics drivers up to date to ensure maximum performance and stability.

Frequently asked questions

• Q: What CPU generations are supported by the MSI MAG B550M Mortar? A: It supports AMD Ryzen processors that fit the AM4 socket, including 3rd and 4th generation Ryzen CPUs with BIOS compatibility updates. Always check the latest MSI CPU support list for your exact model.
• Q: Does this motherboard support PCIe 4.0? A: Yes. The motherboard is built on the AMD B550 platform and provides PCIe 4.0 readiness for the primary PCIe slot and M.2 slots, enabling faster GPUs and NVMe storage where supported by the CPU and chipset.
• Q: How many RAM slots does it have and what is the maximum memory? A: It has 4 DIMM slots supporting up to 128 GB of DDR4 memory, with OC capabilities for higher speeds depending on memory modules and CPU compatibility.
• Q: Is there M.2 cooling on this board? A: Yes, the MAG B550M Mortar features an M.2 Shield FROZR cooling solution to help maintain NVMe drive temperatures during heavy I/O workloads and prolonged gaming sessions.
• Q: What kind of audio is on board? A: The board includes high-quality HD audio with dedicated audio components to improve clarity and reduce interference, delivering a richer gaming and media experience.
• Q: Can I install multiple GPUs or high-speed accessories? A: The board provides PCIe x16 for a GPU and additional PCIe slots for expansion cards. For multi-GPU configurations, verify that your CPU and BIOS support the setup and that you have adequate PSU and cooling for the entire system.
