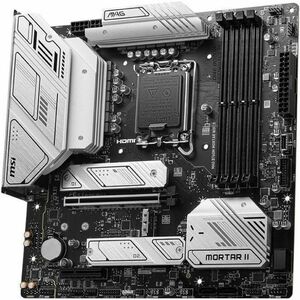

MSI MAG B760M MORTAR WIFI II: Micro ATX Gaming Motherboard with Wi‑Fi 6E, 2.5G LAN and PCIe 5.0

The MSI MAG B760M MORTAR WIFI II is engineered for compact gaming PC builds that don’t compromise on performance. Built on the Intel B760 chipset with an LGA 1700 socket, this micro ATX motherboard delivers a sturdy, feature-rich foundation for 13th and 14th Gen Intel Core processors. It combines cutting-edge DDR5 memory support, PCIe 5.0 readiness, triple M.2 storage options, and premium networking to power high-refresh-rate gaming, content creation, and multitasking in a compact footprint. With robust power delivery, advanced cooling, and practical design touches, the MAG MORTAR WIFI II is designed to keep your system stable and responsive during extended gaming sessions and demanding workloads.

• Next‑gen performance in a compact form: Micro ATX form factor with the LGA 1700 socket and Intel B760 chipset, engineered to support 13th and 14th Gen Intel Core processors. PCIe 5.0 readiness ensures GPU and storage connections are future‑proof for the latest graphics cards and high‑speed drives, all while fitting into space‑saving mini or mid‑tower builds.
• Advanced memory and storage options: Supports DDR5 memory for faster, more efficient performance and improved multitasking. Three M.2 slots enable fast NVMe storage configurations, giving you room for the OS drive, a high‑performance game library, and a fast cache or scratch drive. The M.2 Shield Frozr helps maintain solid performance by reducing thermal throttling during long gaming sessions.
• Blazing-fast networking for competitive play: Built‑in Wi‑Fi 6E (802.11ax) with Bluetooth gives you high‑speed wireless connectivity for online games, streaming, and downloads. A dedicated 2.5G Ethernet LAN provides a stable, low‑latency wired option for gaming PCs and workstations that demand consistent bandwidth and quick data transfers.
• Durable design and user‑friendly features: A robust VRM and cooling solution, reinforced PCIe slots, and a thoughtful layout enable reliable performance in compact builds. Features like PCIe slot shielding, M.2 heatsinks, BIOS Flashback or M‑Flash compatibility, and straightforward fan headers improve reliability and ease of setup.
• Flexible, future‑proof expansion: Multiple PCIe lanes, abundant USB connectivity, and smart cooling management give you the freedom to upgrade components over time. The MAG MORTAR WIFI II supports high‑end GPUs, PCIe 5.0 storage devices, and contemporary peripherals while staying compact enough to fit in smaller chassis.

Technical Details of MSI MAG B760M MORTAR WIFI II

• CPU Socket: LGA 1700
• Chipset: Intel B760
• Form Factor: Micro‑ATX
• Memory: DDR5 compatible, with support for high‑speed operation and overclocking capabilities
• Expansion Slots: PCIe 5.0 ready x16 slot for graphics card; additional PCIe slots for expansion cards
• Storage: 3x M.2 NVMe slots for fast SSDs; multiple SATA 6Gb/s ports for traditional drives and additional storage
• Networking: Onboard Wi‑Fi 6E with Bluetooth; 2.5G Ethernet LAN for fast, reliable wired networking
• USB and Connectivity: Comprehensive USB options, including front‑panel and rear I/O support for high‑speed USB connections
• Cooling & Design: Integrated thermal solutions including M.2 Shield Frozr and robust VRM cooling for stable performance during long gaming sessions

how to install MSI MAG B760M MORTAR WIFI II

Follow these steps to assemble your system with the MAG B760M MORTAR WIFI II and maximize performance and reliability:

• Prepare your case, power supply, CPU, memory, and cooling components. Ensure you have the correct screws, standoffs, and thermal paste (if applying a cooling solution that requires it).
• Install the CPU into the LGA 1700 socket on the motherboard. Align the marker on the CPU with the socket designation, gently seat the processor, and secure the removal protective lever.
• Apply thermal compound (if your CPU cooler requires it) and install the CPU cooler or aftermarket air/water cooling solution. Connect the CPU fan and, if applicable, any additional CPU cooling headers to the motherboard.
• Install DDR5 memory modules in the correct DIMM slots as indicated by the motherboard’s manual for dual‑channel optimization. Ensure each module clicks firmly into place with the latches fully engaged.
• Affix the MAG MORTAR WIFI II to the case using the case’s standoffs and screws. Align the I/O shield with the motherboard cutout and snap it into place before securing the board with screws.
• Connect the 24‑pin ATX power connector and the 8‑pin (or 4+4) CPU power connector from your power supply to the motherboard. Attach additional power cables for PCIe devices if required by your GPU or storage solution.
• Install one or more M.2 NVMe SSDs into the three M.2 sockets, using the provided standoff hardware. Secure each drive and ensure they are properly seated. Attach the M.2 heatsinks where available to help with thermal performance.
• Install a PCIe graphics card into the PCIe x16 slot. Secure the card to the case, then connect any required PCIe supplementary power.
• Connect storage drives, SATA cables, and any other PCIe devices. Route cables neatly for airflow and ease of maintenance. Connect USB front panel headers, audio, and any chassis fan headers as per your case’s layout.
• Power on and enter the BIOS/UEFI. Update the BIOS if needed to ensure compatibility with the latest CPUs and memory kits. Configure XMP or DOCP/EOCP profiles to enable DDR5 memory at advertised speeds, and adjust fan curves for optimal cooling.
• Install your operating system, drivers, and MSI software (like MSI Center) to optimize performance, cooling, and system monitoring. Run a quick stability test and monitor temperatures to confirm everything operates within safe ranges.

Frequently asked questions

• Q: Is the MSI MAG B760M MORTAR WIFI II compatible with 14th Gen Intel Core processors?
• A: Yes. The motherboard is designed to support Intel 13th and 14th Gen Core processors with the LGA 1700 socket and B760 chipset, delivering solid compatibility for current and upcoming CPUs.
• Q: How many M.2 slots does this motherboard have?
• A: It features three M.2 slots, offering flexible options for OS drives, gaming libraries, and fast storage configurations.
• Q: Does it include Wi‑Fi and Ethernet networking?
• A: Yes. The MAG B760M MORTAR WIFI II includes onboard Wi‑Fi 6E with Bluetooth and a 2.5G Ethernet LAN for fast, reliable network connectivity.
• Q: What memory type does it support and can I overclock it?
• A: The board supports DDR5 memory with overclocking capabilities, enabling higher memory speeds and improved performance when paired with compatible RAM kits.
• Q: Are there features to enhance cooling and longevity?
• A: Yes. The motherboard includes M.2 Shield Frozr, robust VRM cooling, and heat dissipation designed to maintain stability during gaming marathons and heavy workloads.
