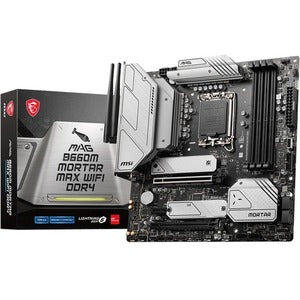

MSI MAG B660M MORTAR MAX WIFI DDR4 Micro-ATX Desktop Motherboard

Designed for compact, performance-focused builds, the MSI MAG B660M MORTAR MAX WIFI DDR4 motherboard is built to unleash the power of Intel’s LGA-1700 ecosystem with a durable micro‑ATX footprint. This board brings together a balanced mix of advanced cooling, high‑fidelity audio, fast networking, and robust expandability, making it a versatile choice for gamers, creators, and productivity enthusiasts who want reliable performance without sacrificing space. With Intel B660 chipset optimization, support for 12th and 13th‑gen Intel Core processors, and features tailored to overclocking and storage speed, it’s ready to power a modern workstation or high-refresh gaming rig.

• Intel B660 chipset with enhanced power design provides stable, efficient performance for long gaming sessions and heavy multitasking, while keeping thermals in check for reliable operation under load.
• AUDIO BOOST delivers studio‑grade sound quality for immersive gaming, music production, and crisp communication in team play, thanks to high‑quality audio components and careful circuit design.
• Steel Armor PCIe slots reinforce the PCIe paths for GPU cards and add structural integrity to reduce bending and wear in multi‑GPU configurations or hefty discrete GPUs.
• 2.5G LAN and Intel Wi‑Fi Solution offer fast, low‑latency networking with wired and wireless options, giving you flexible, reliable connectivity whether you’re online gaming, streaming, or transferring large files.
• Intel Optane Memory Ready and M.2 Shield Frozr protect and accelerate high‑speed storage for snappy system responsiveness and fast game/loading times, while the shielded M.2 slots help dissipate heat for sustained NVMe performance.

Technical Details of MSI MAG MAG B660M MORTAR MAX WIFI DDR4 Desktop Motherboard

• Form Factor: Micro‑ATX, ideal for compact builds that still demand premium features and expandability.
• Chipset: Intel B660, designed to support 12th and 13th‑generation Intel Core processors with efficient power delivery and robust I/O options.
• CPU Socket: LGA‑1700, compatible with a wide range of Intel processors built on the Alder Lake and Raptor Lake architectures.
• Memory Support: DDR4 memory, up to high frequencies through overclocking, with multiple DIMM slots for flexible capacity (commonly up to 128GB total), optimized for stable performance in multitasking and gaming.
• Expansion Slots: PCIe slots configured for reliable discrete GPU support with reinforced steel armor to improve durability under heavy graphics cards and multi‑GPU configurations.
• Storage Options: NVMe PCIe M.2 slots for fast SSDs and multiple SATA ports for traditional storage, enabling quick OS boot drives and ample data storage options.
• Networking: 2.5G Ethernet for high‑speed wired networking and an integrated Intel Wi‑Fi solution with Bluetooth for wireless connectivity and convenient, cable‑free setups.
• Audio: Audio Boost feature set emphasizes clearer, richer sound for in‑game audio cues, music, and voice communication, enhancing the overall multimedia experience.
• Storage Technology: Intel Optane Memory Ready capability to accelerate storage performance when paired with Optane memory modules, improving responsiveness for frequently used data.
• Cooling & Durability: M.2 Shield Frozr and advanced cooling design help manage thermals on PCIe storage and PCIe devices, preserving performance during extended use.
• Connectivity & I/O: Rich I/O options with USB ports, fan headers, and ARGB/Mystic Light or similar lighting ecosystems support, enabling customizable configurations and convenient peripheral setups.

how to install MSI MAG MAG B660M MORTAR MAX WIFI DDR4

• Power off your system, unplug the power cord, and discharge static from yourself before handling components.
• Install the CPU into the LGA‑1700 socket, aligning the notches, and apply the appropriate thermal paste if your cooler does not include pre‑applied paste.
• Seat the RAM modules into the correct dual/quad channel slots as indicated in the motherboard manual, ensuring they click firmly into place.
• Mount the motherboard into your case with the supplied standoffs, then connect the 24‑pin ATX power and the 8‑pin (or 4/8‑pin) CPU power cables to provide stable power delivery.
• Install NVMe SSDs into the M.2 slots and secure with screws, optionally enabling the M.2 Shield Frozr if your model includes it to keep temperatures in check.
• Secure your graphics card into the reinforced PCIe slot, connect PCIe power if required, and route PCIe slot cooling if applicable.
• Connect SATA drives if you’re using traditional storage, and attach fans and any case lighting per your preferences for airflow and aesthetics.
• Power on, enter the BIOS/UEFI, and perform initial system configuration: enable XMP profiles for memory, adjust fan curves, and verify storage devices.
• Update the BIOS if a new version is available to ensure compatibility with the latest processors and features, then install your operating system and drivers for chipset, audio, LAN, Wi‑Fi, and peripherals.
• Test stability with a light stress test, monitor temperatures, and adjust fan curves to maintain quiet operation while keeping hardware within safe thermal limits.

Frequently asked questions

• Q: Does the MSI MAG B660M MORTAR MAX WIFI DDR4 support 13th‑gen Intel CPUs?
• A: Yes. As an LGA‑1700 motherboard built on the B660 platform, it supports 12th and 13th‑gen Intel Core processors, though a BIOS update may be required for the latest CPUs.
• Q: What type of memory does it use?
• A: It supports DDR4 memory modules, providing a balance of frequency, latency, and capacity for a wide range of builds, from budget to enthusiast levels.
• Q: How many M.2 slots are there and what do they support?
• A: The board typically features multiple M.2 NVMe slots with PCIe support and heat shields (M.2 Shield Frozr) to maintain performance under sustained load.
• Q: Does it have wired and wireless networking?
• A: Yes. It includes 2.5G Ethernet (LAN) for fast wired connectivity and an integrated Intel Wi‑Fi solution for wireless access, along with Bluetooth in many configurations.
• Q: Is Intel Optane Memory Ready?
• A: Yes. The motherboard is Intel Optane Memory Ready, allowing you to accelerate storage performance when paired with Optane memory modules.
• Q: Is this board suitable for micro‑ATX builds?
• A: Absolutely. The MAG B660M MORTAR MAX WIFI is a Micro‑ATX motherboard, offering robust features in a compact footprint for smaller cases or more efficient builds.
