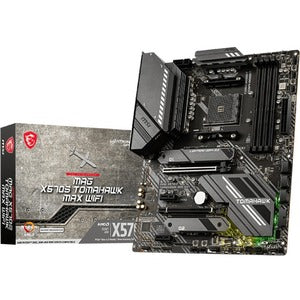

MSI MAG X570S Tomahawk MAX WIFI Desktop Motherboard - AMD X570 Chipset - Socket AM4 - ATX

Engineered for serious gaming and demanding workloads, the MSI MAG X570S Tomahawk MAX WIFI is a premium ATX motherboard built on the AMD X570S chipset and the reliable Socket AM4 platform. This board blends high-performance power delivery, advanced cooling, and cutting-edge connectivity into a single, feature-rich solution that appeals to enthusiasts who demand stability, speed, and expandability. Whether you’re building a powerhouse gaming rig, a content-creation workstation, or a versatile home PC, this motherboard is designed to unlock the full potential of Ryzen processors while delivering dependable operation under heavy loads. From robust VRM architecture to comprehensive I/O and PCIe 4.0 support, the MAG X570S Tomahawk MAX WIFI is crafted to endure intense gaming sessions, extended render workloads, and everyday multitasking with ease.

• Premium power design for multi-core Ryzen processors: A robust VRM layout and premium components work together to deliver stable, efficient power delivery. This translates to reliable overclocking headroom and consistent performance even under sustained gaming or compute-heavy tasks.
• Advanced cooling and thermal management: The Tomahawk MAX WIFI features an expansive heatsink system and optimized airflow paths to manage heat from the VRMs, chipset, and M.2 storage. This helps maintain performance during long gaming sessions and CPU-intensive workloads.
• PCIe 4.0 ready with M.2 Shield Frozr: Dual M.2 slots provide blazing-fast storage options, while the M.2 Shield Frozr protection keeps NVMe drives cool for improved endurance and sustained throughput in demanding tasks.
• Built-in networking for fast, low-latency connectivity: Integrated 2.5G LAN plus WiFi connectivity (with Bluetooth) ensures fast transfers, smooth online gaming, and flexible wireless networking without extra adapters.
• Comprehensive I/O and expansion: A wide array of USB ports, high-speed Type-C connectivity, ample SATA storage, and PCIe expansion lanes make this motherboard ready for modern GPUs, fast SSDs, and multiple peripherals, all while maintaining a clean cable management profile in the case.

Technical Details of MSI MAG X570S Tomahawk MAX WIFI

• Chipset: AMD X570S
• CPU Socket: AM4
• Form Factor: ATX
• Memory Support: DDR4 DIMM slots with support for high-speed memory profiles (up to high-frequency DDR4 kits); capable of handling large capacity configurations for heavy multitasking and content creation
• Memory Capacity: Supports substantial total memory (multi-channel configuration) for demanding applications
• PCIe: PCIe 4.0-ready on primary PCIe lanes for GPU and storage
• Storage: Multiple storage options including dual M.2 slots with NVMe support and multiple SATA 6Gb/s ports
• Networking: Built-in 2.5G LAN for fast wired connectivity and integrated WiFi (with Bluetooth) for wireless networking
• USB Connectivity: A broad selection of USB ports including USB 3.x Gen 2/Gen 1 with front-panel header compatibility for rapid peripheral connections
• Audio: High-quality onboard audio with dedicated audio components for immersive sound
• RGB/Lighting: Mystic Light RGB lighting with synchronization for compatible peripherals and cases
• Cooling: Advanced cooling solution with heat sinks and thermal design optimized for sustained performance

how to install MSI MAG X570S Tomahawk MAX WIFI

• Prepare your workspace and install the case’s I/O shield in the chassis. Ensure you have a compatible power supply and the Ryzen-based CPU is compatible with the AM4 socket.
• Install the CPU into the socket with the correct orientation, apply thermal compound if your CPU cooler requires it, and mount the cooling solution securely.
• Insert the RAM into the appropriate DIMM slots, matching the recommended airflow and motherboard guidelines for dual-channel operation.
• Place the motherboard into the case, align the screw holes, and secure it with standoffs. Connect the 24-pin ATX and 8-pin/4-pin CPU power cables from your power supply to the motherboard.
• Install NVMe SSDs into the M.2 slots and attach the M.2 Shield Frozr if included. Attach SATA drives as needed and connect the data and power cables.
• Connect all required case fans, LED strips, USB headers, and front-panel audio. Attach the WiFi antenna if your model includes wireless connectivity, and ensure PCIe devices are properly seated.
• Power on briefly to enter the BIOS. Update the BIOS to the latest version if needed, configure memory XMP profiles for optimal speed, and set boot priorities for your storage devices.
• Install the operating system and drivers (chipset, audio, LAN, WiFi) from the MSI support site or your driver package. Reboot and verify all components are functioning and monitor temperatures to ensure stable operation.

Frequently asked questions

• Q: What processors are compatible with the MSI MAG X570S Tomahawk MAX WIFI? A: This motherboard uses the AM4 socket and is designed for AMD Ryzen processors, including generations that support the X570S platform. Check the official MSI CPU compatibility list for specific Ryzen models and BIOS revision requirements.
• Q: Does this board include WiFi and Bluetooth? A: Yes. The MAG X570S Tomahawk MAX WIFI features built-in wireless connectivity (WiFi) and Bluetooth, reducing the need for separate adapters and simplifying network setup.
• Q: How many M.2 drives can I install? A: The motherboard provides at least two M.2 slots, each compatible with PCIe NVMe drives, with heat-dissipating shields to improve thermal performance during sustained transfers.
• Q: Is PCIe 4.0 supported for storage and graphics? A: Yes. The X570S platform enables PCIe 4.0 lanes for compatible NVMe storage and PCIe devices, delivering high data transfer speeds for fast boots and loading times.
• Q: What cooling features help with overclocking? A: The board includes comprehensive heatsinks, optimized thermal design, and, in some configurations, M.2 Shield Frozr protection to keep NVMe drives cooler under load—supporting stable overclocking and long gaming sessions.
