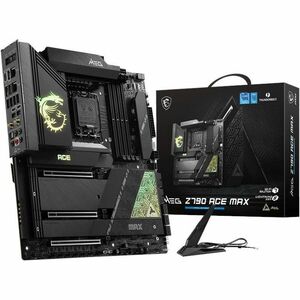

MSI MEG Z790 ACE MAX Desktop Motherboard – Premium E-ATX Gaming Platform

Unleash the power of gaming with the MSI MEG Z790 ACE MAX. Engineered for the most demanding enthusiasts, this Extended ATX powerhouse blends premium aesthetics with rock‑solid performance to elevate your rig into a true gaming and content‑creation workstation. Featuring a sleek black finish with silver embellishments, the ACE MAX is built around Intel’s Z790 chipset and the LGA‑1700 socket, ready to take on 14th Gen and 13th Gen Core processors with poise. Expect premium build quality, enduring durability, and a feature-rich motherboard that delivers consistent frame rates, responsive overclocking, and ample headroom for future upgrades. Whether you’re chasing competitive latency, massive storage arrays, or multi‑GPU configurations, this board is designed to handle the demand with style and sophistication.

• The MEG Z790 ACE MAX delivers robust power delivery and advanced cooling to support Intel 14th Gen and 13th Gen Core processors, enabling stable overclocking, sustained performance, and smooth long‑form gaming sessions.
• Premium cooling and reliability are at the forefront, with large heatsinks and thoughtfully engineered thermal solutions that keep VRMs, the CPU, and memory modules cool during peak workloads and marathon gameplay.
• Extensive I/O and expansion options provide expansive connectivity for modern builds, including multiple PCIe slots, high‑speed storage support, and fast networking to minimize latency and maximize data throughput.
• Design and durability are hallmarks of the ACE MAX, featuring a sophisticated black finish with silver accents, reinforced PCIe slots, and carefully chosen components to ensure long‑term reliability in aggressive gaming rigs.
• Upgradeability and future‑proofing are built in, with an extended ATX footprint and a platform designed to accommodate current and upcoming hardware, offering enthusiasts a solid foundation for evolving PC builds.

Technial Details of MSI MEG Z790 ACE MAX Desktop Motherboard

• Form Factor: Extended ATX (E-ATX)
• Socket: LGA-1700
• Chipset: Intel Z790

How to install MSI MEG Z790 ACE MAX

• Prepare your case and workspace, ensuring it supports an Extended ATX motherboard (E-ATX) and has adequate airflow for cooling components.
• Install the I/O shield into the case’s rear cutout and align the motherboard carefully before securing it with screws in the corresponding standoffs.
• Mount the CPU into the LGA‑1700 socket, apply thermal paste if your cooler requires it, and attach the CPU cooler or heatsink securely to ensure proper contact and heat dissipation.
• Install memory modules into the recommended DIMM slots for optimal stability and performance, then verify correct seating and locking latches.
• Insert any M.2 NVMe SSDs into the M.2 slots, securing them with screws and routing any necessary heatsinks or thermal pads if provided by the kit.
• Connect power: attach the 24‑pin ATX power connector and the appropriate 8‑pin (or 4+4) CPU power connector, then wire additional power for GPUs and PCIe devices as needed.
• Attach motherboard fans and radiator fans, ensuring a clean cable layout for airflow and easy maintenance, and connect front‑panel USB, audio, and LED headers as per the motherboard manual.
• Power on and enter the BIOS to set system parameters, enable XMP profiles for memory, adjust CPU timing if desired, and configure boot devices and storage options.
• Install your operating system and drivers from the MSI support page to optimize chipset, audio, networking, and storage performance, then fine‑tune fan curves and power settings for a balanced, quiet, and fast system.

Frequently asked questions

• Q: Is the MSI MEG Z790 ACE MAX compatible with Intel 13th and 14th Gen Core processors? A: Yes. The board is designed to work with Intel 13th Gen and 14th Gen Core CPUs using the LGA‑1700 socket on the Intel Z790 chipset.
• Q: What is the form factor of this motherboard? A: Extended ATX (E‑ATX), offering ample space for robust cooling solutions and extensive component layouts.
• Q: What kind of cooling and power features does it offer? A: The ACE MAX emphasizes premium cooling solutions and a strong power delivery design to sustain performance during heavy gaming and overclocking, along with reinforced components for durability.
• Q: What kind of storage and connectivity can I expect? A: The board provides extensive connectivity with multiple PCIe slots and M.2 storage options, plus high‑speed I/O and networking to minimize latency and maximize data throughput in demanding workloads.
