Description

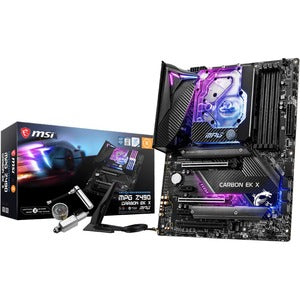

MSI MPG Z490 CARBON EK X Desktop Motherboard – Intel Z490, LGA1200, Optane Ready, ATX
The MSI MPG Z490 CARBON EK X is a premium ATX motherboard engineered for enthusiasts who demand high performance, striking aesthetics, and advanced cooling. Built around the Intel Z490 chipset and the LGA1200 socket, this board is designed to unlock the full potential of 10th generation Intel Core processors while delivering rock-solid stability under load. A standout feature is the custom-designed EK cooling monoblock that integrates with the motherboard’s carbon-fiber styling, delivering superior thermal management for the CPU and VRMs. Whether you’re pushing clocks in competitive gaming, running demanding creative workloads, or building a showpiece system, the CARBON EK X blends sleek visual design with real-world performance advantages.
- EK Cooling Monoblock Integration: A bespoke EK monoblock cools both the CPU and VRMs in a single, compact solution. This advanced cooling approach helps maintain lower temperatures during prolonged turbo boosts, enabling higher sustained overclocks and enhanced system stability while preserving the board’s signature carbon fiber aesthetic.
- Premium Power Design for True Overclocking: The MPG Z490 CARBON EK X is built around a robust VRM and power-delivery solution, engineered to support high-end 10th Gen Intel Core processors. This solid foundation translates to cleaner voltage rails, reduced thermal throttling, and reliable performance under heavy loads—perfect for enthusiasts who push their systems to the limit.
- Dual M.2 Slots with Thermal Protection: Experience rapid storage access with two M.2 slots that support NVMe drives. Each slot is paired with thermal shields to minimize throttling during sustained transfers, helping you boot faster, load games quicker, and accelerate data-intensive workflows.
- Comprehensive Connectivity and Expansion: Expect a well-rounded suite of ports and expansion options, including PCIe slots that maximize bandwidth for high-performance GPUs and PCIe storage, USB 3.x ports for fast peripherals, and network options suited for competitive play and content creation. The board’s layout prioritizes airflow and ease of upgrade, making cable management easier in larger cases.
- Aura Sync Lighting and Carbon Aesthetics: The carbon-themed design, engraved branding, and MSI’s Aura Sync support deliver synchronized RGB lighting across compatible peripherals and components. This creates a cohesive, eye-catching build that looks as good as it performs, whether your system is under the desk or on display.
Technical Details of MSI MPG Z490 CARBON EK X Desktop Motherboard
- CPU Socket: LGA-1200
- Chipset: Intel Z490
- Form Factor: ATX
- Memory: DDR4 support, up to 128GB total, with multi-channel configuration for improved bandwidth and responsiveness
- Storage & M.2: Dual M.2 slots with NVMe support and integrated thermal shields to minimize thermal throttling during heavy I/O
- Expansion Slots: PCIe expansion designed to maximize bandwidth for GPUs and other PCIe devices, with attention to airflow and upgradeability
- Networking: Onboard high-speed networking optimized for low latency and stable data transfer (variant SKUs may include multi-gig connections); Intel Optane Memory Ready
- Audio: High-quality onboard audio solution to deliver clear, immersive sound for games and media
- Connectivity: USB ports with modern standards for fast peripherals and external storage; audio and chassis headers for convenient integration
- Lighting & Aesthetics: Aura Sync compatible with carbon-inspired visuals to match the motherboard’s distinctive look
How to install MSI MPG Z490 CARBON EK X
- Prepare your chassis and motherboard area. Ensure you have a compatible ATX case, a clean workspace, and a reliable power supply. Gather a screwdriver, thermal paste (if you’re not using the EK monoblock paste), and your memory kits.
- Install the CPU: Open the LGA-1200 socket lever, align the CPU with the pins, insert gently, and secure the socket. If you’re using the EK monoblock, install the CPU heatsink and processor cooling assembly per EK’s instructions before applying standard mounting hardware to ensure proper seal and thermal contact.
- Install memory (RAM): Open the DIMM slots, align the modules with the notches, insert firmly until the latches click. Ensure you populate the correct slots per the motherboard manual to enable dual-channel operation for maximum performance.
- Prepare the motherboard in the case: Install the I/O shield, align the motherboard with standoffs, and secure it with screws. Route power and data cables cleanly to promote airflow and simplify maintenance.
- Connect power and essential cables: Attach the 24-pin ATX power connector and 8-pin (or 4+4) CPU power connector. Connect PCIe power cables to GPUs as needed. Install and connect the M.2 NVMe drives to their slots with the thermal shields in place.
- Install EK components (if applicable): If you’re using the EK cooling monoblock, follow EK’s installation guide to mount the block securely, connect all coolant lines, and verify there are no leaks before powering on.
- First boot and BIOS setup: Power on and press the appropriate key to enter BIOS. Enable XMP/DOCP for memory profiles, configure boot priority, and set preferred fan curves. Update BIOS to the latest version if available for improved stability and compatibility.
- Install drivers and software: In Windows or your preferred OS, install the latest chipset, audio, LAN, and USB drivers from MSI’s official support page. Install any optional utilities for overclocking, lighting control, and system monitoring.
- Optimize and test: Run stability tests and temperature monitoring under load. Evaluate fan curves, VRM temperatures, and M.2 performance to confirm everything operates within safe limits.
Frequently asked questions
-
Q: Is the MSI MPG Z490 CARBON EK X compatible with Intel Optane memory?
A: Yes. The board is Optane Memory Ready, enabling faster acceleration of compatible storage drives and improved system responsiveness when paired with Optane modules. -
Q: Which CPUs are supported?
A: This motherboard is designed for Intel 10th generation Core processors using the LGA1200 socket. Ensure you select a compatible CPU and update the BIOS to the latest version for best results. -
Q: Does it include the EK cooling monoblock as standard?
A: The MPG Z490 CARBON EK X features a custom EK cooling solution integrated with the board, delivering enhanced thermal performance for the CPU and VRMs. Always verify the exact SKU in your region to confirm bundled components. -
Q: Is this board suitable for overclocking?
A: Yes. With a robust VRM design and advanced cooling, the CARBON EK X is aimed at enthusiasts who overclock their CPUs and memory. Remember to monitor temperatures and abide by safe overclocking practices. -
Q: Does it support Aura Sync lighting?
A: Yes. The carbon aesthetic is complemented by Aura Sync compatibility, allowing synchronized lighting with other Aura-enabled components and peripherals. -
Q: What kind of storage and expansion options does it offer?
A: It provides dual M.2 NVMe slots for fast storage and multiple PCIe expansion slots for GPUs and other PCIe devices, with design considerations to maximize airflow and ease of installation.
