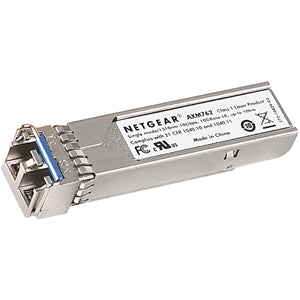

Netgear SFP+ Transceiver 10GBase-LR for Single Mode Fiber

Enhance your network backbone with the Netgear SFP+ Transceiver, a high-performance 10GBase-LR fiber optic module designed for single-mode fiber. This compact, hot-swappable transceiver slides into standard SFP+ interfaces on compatible switches and routers, delivering reliable, high-speed connectivity over distances up to 10 kilometers. Ideal for data center interconnects, enterprise backbones, and campus networks, the 10GBase-LR transceiver blends seamless compatibility with robust performance, helping you future-proof your network while maximizing uptime.

• Compatibility and easy integration: Designed to fit NETGEAR ProSafe 10 Gigabit SFP+ transceivers and be fully compatible with M5300, M7100, and M7300 series switches, as well as select Smart and Plus switches. This means you can upgrade existing networks without replacing switches, preserving your investment while expanding capacity. Its standard SFP+ interface supports hot-swappable installation, allowing maintenance to occur without powering down devices in many environments.
• High-performance 10GBASE-LR over single-mode fiber: This transceiver operates at 10 Gbps and uses 1310 nm wavelength over single-mode fiber (9/125 μm), enabling long-haul links with excellent signal integrity. It’s the ideal choice for inter-building connections, data center uplinks, and storage networks where distance, bandwidth, and reliability matter. With LR optics, you can cover campus backbones and data center interconnects with low attenuation and minimal dispersion.
• Reliability, durability, and efficiency: Built for continuous operation in enterprise environments, the transceiver features a robust enclosure and a design that supports reduced power consumption while maintaining performance. It supports industry standards for interoperability and includes capabilities like digital diagnostic monitoring (DDM) where available, giving you real-time visibility into temperature, optical power, and other vital parameters to prevent issues before they impact performance.
• Flexible deployment options for diverse networks: Whether you’re connecting core switches to distribution layers, linking servers to storage arrays, or extending network reach between buildings, this transceiver provides scalable, high-speed connectivity. Its compatibility with Netgear’s Smart and Plus switches expands deployment options while maintaining a straightforward, plug-and-play installation process.
• Cost-effective performance and ROI: By delivering 10 Gbps over single-mode fiber with a single, compact module, you can consolidate links, simplify cabling, and reduce the need for more expensive multi-mode deployments. The LR transceiver is a future-proof choice for networks planning to scale bandwidth without a complete hardware refresh, helping to maximize ROI and minimize downtime during expansion.

Technical Details of Netgear SFP+ Transceiver, 10GBase-LR for Single Mode 9/125μm Fiber

• Product type: SFP+ Transceiver
• Model / standard: 10GBase-LR
• Interface: SFP+ (Small Form-factor Pluggable Plus)
• Wavelength: 1310 nm
• Fiber type: Single-mode fiber (9/125 μm)
• Distance / reach: Up to 10 kilometers (up to 6.2 miles) on standard single-mode fiber
• Data rate: 10 Gbps
• Connector: LC duplex (typical for SFP+ LR optics)
• Hot-swappable: Yes; can be installed or removed without powering down the host device in compatible environments
• Operating temperature (typical): 0 to 70°C (commercial grade; refer to product documentation for exact specifications)
• Compliance / standards: IEEE 802.3ae; ROHS compliant; designed for interoperability with supported NETGEAR switches and other SFP+ capable devices
• Diagnostics: Digital Diagnostic Monitoring (DDM/DOM) capable in compatible systems for real-time optical and operating parameter monitoring

how to install Netgear SFP+ Transceiver

Installing the Netgear SFP+ Transceiver is quick and straightforward. Follow these recommended steps to ensure a successful deployment and reliable link performance:

• Power down the device only if required by your network policy and the specific port or chassis being serviced. In many environments, hot-swapping is supported, allowing you to insert or replace the transceiver with minimal disruption.
• Verify compatibility by ensuring your switch or router supports SFP+ transceivers in the M5300, M7100, M7300 series, or the selected Smart/Plus switches you’re using. Confirm that the device’s firmware is up to date to ensure maximum interoperability and feature support.
• Prepare the fiber link: use single-mode fiber (9/125 μm) with LC/LC connectors. Ensure the fiber is clean and free of damage, and connect the transmitter (Tx) to the receiver (Rx) path as per your link design. Do not bend fiber beyond the recommended minimum bend radius to avoid signal loss.
• Insert the transceiver into the target SFP+ port by aligning the module with the receptacle and applying even pressure until it seats securely. The host port should indicate a link status or activity LED once the connection is established.
• Power on or re-enable the device (if required) and monitor link status. Use the switch’s management interface or monitoring tools to confirm the link is up, verify the operating speed (10 Gbps), and check for any diagnostic alerts. If you enable any remote monitoring features (DDM/DOM), verify the readings in the management console and address any anomalies promptly.
• Perform a basic throughput test if needed, using calibrated test equipment or standard network performance tools to confirm the 10 Gbps link is delivering the expected performance across the fiber path. Document link distance, attenuation, and any known fiber characteristics for future reference.

Frequently asked questions

• Q: What is 10GBase-LR used for?
  A: 10GBase-LR is a 10 gigabit Ethernet transceiver designed for single-mode fiber, suitable for long-reach links up to 10 km. It is ideal for data center backbones, inter-building connections, and enterprise networks requiring high bandwidth over longer distances.
• Q: Which devices are compatible with this Netgear SFP+ transceiver?
  A: It is designed for NETGEAR ProSafe 10 Gigabit SFP+ transceivers and is compatible with M5300, M7100, and M7300 series switches, as well as select Smart and Plus switches that support 10G SFP+ modules. Always verify your device’s compatibility with the specific SKU and firmware version.
• Q: Does this transceiver support Digital Diagnostic Monitoring (DDM/DOM)?
  A: Yes, many 10GBase-LR SFP+ transceivers support DDM/DOM in compatible devices. DDM enables real-time monitoring of parameters such as temperature, optical power, and voltage, helping to maintain link reliability and plan maintenance.
• Q: Is hot-swapping supported?
  A: Yes. The transceiver is designed for hot-swappable installation, allowing removal or insertion without powering down the host device in compatible environments, which minimizes downtime during upgrades or maintenance.
• Q: What type of fiber and connectors should I use?
  A: Use single-mode fiber (9/125 μm) with LC duplex connectors for LR transceivers. Ensure proper cleaning and handling of optical connectors to reduce insertion loss and sustain long-term link quality.
• Q: How do I verify the link after installation?
  A: Check the host device’s management interface for the SFP+ port status, confirm the speed is set to 10 Gbps, and observe the link LED indicators. If available, review DDM/DOM readings for temperature and optical power to ensure the link operates within recommended ranges.
