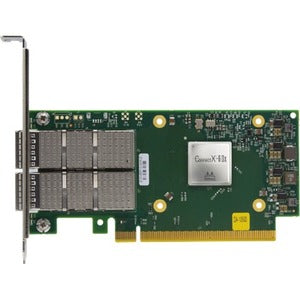

NVIDIA MCX623106AC-CDAT ConnectX-6 Dx EN Adapter Card 100GbE Crypto Enabled

NVIDIASKU: 5640241

Price:
Sale price$1,567.66

Description

NVIDIA MCX623106AC-CDAT ConnectX-6 Dx EN Adapter Card 100GbE Crypto Enabled

Experience datacenter-grade networking power with the NVIDIA MCX623106AC-CDAT ConnectX-6 Dx EN Adapter Card. Designed for demanding cloud workloads and mission-critical data processing, this 100GbE dual-port PCIe 4.0 x16 SmartNIC delivers headline performance, advanced security, and intelligent offloads that simplify deployment and accelerate your most demanding applications. Built for modern hyper-converged and multi-tenant environments, the ConnectX-6 Dx combines high-throughput networking with cryptographic acceleration, secure boot, and deep integration with virtualization and software-defined networking stacks. If you’re architecting scalable AI, analytics, or virtualization pipelines, this adapter card is engineered to reduce latency, offload heavy compute tasks, and protect sensitive data at rest and in transit.

  • Blazing-fast 100 GbE per port with dual-port QSFP56: Accelerate bandwidth-intensive workloads and parallelize traffic across multiple virtual networks, storage interfaces, and compute instances with up to 200 GbE of total throughput in a single card.
  • Crypto-enabled hardware security: Built-in cryptographic engines offload encryption, decryption, and integrity checks, helping protect sensitive data in motion and at scale across private and public clouds.
  • Secure Boot and trusted hardware: The device supports secure boot and hardware-assisted security features to help ensure platform integrity and resist tampering in multi-tenant data centers.
  • PCIe 4.0 x16 interface for maximum bandwidth: A high-bandwidth PCIe 4.0 connection ensures sustained data flow between the SmartNIC and the host system, enabling dense virtualized workloads and rapid packet processing.
  • ConnectX-6 Dx SmartNIC with advanced offloads: Integrates NIC and compute offloads to accelerate virtual networking, SR-IOV, Kubernetes and cloud-native environments, while reducing CPU overhead on hosts.

Technical Details of NVIDIA MCX623106AC-CDAT ConnectX-6 Dx EN Adapter Card 100GbE Crypto Enabled

  • Product family: NVIDIA ConnectX-6 Dx Ethernet SmartNIC
  • Model: MCX623106AC-CDAT
  • Interface type: PCIe 4.0 x16
  • Form factor: Dual-Port QSFP56 adapter card with tall bracket option
  • Network speeds: 100 GbE per port, dual-port configuration for up to 200 GbE aggregate bandwidth
  • Supported protocols and offloads: Advanced networking offloads for virtualization (e.g., SR-IOV), high-performance packet processing, and acceleration of cloud-native workloads
  • Security features: Crypto-enabled encryption engines, hardware-based security accelerators, Secure Boot capability
  • Hardware acceleration: Offloads for cryptography, data-path processing, and packet handling to reduce CPU load
  • Software compatibility: Broad OS support with NVIDIA Networking software and drivers for Linux and Windows environments
  • Management and visibility: Advanced telemetry, management interfaces, and integration with orchestration platforms for easier deployment at scale
  • Power and cooling: Designed for data-center thermal management with efficient power usage suitable for dense server configurations
  • Security policy: Supports secure, verifiable boot and trusted execution environments to help meet regulatory and compliance requirements
  • OEM and rack support: Tall bracket included for standard 2U and higher density server racks

how to install NVIDIA MCX623106AC-CDAT ConnectX-6 Dx EN Adapter Card 100GbE Crypto Enabled

  • Prepare the host system: Power down the server, unplug power, and open the chassis following the vendor’s safety guidelines. Confirm that you have a free PCIe x16 slot and adequate clearance for the tall bracket if you plan to use it.
  • Insert the card: Gently align the ConnectX-6 Dx card with the PCIe x16 slot and press evenly until the connector seats fully. Secure the card to the chassis with the appropriate screw to ensure stability and proper heat dissipation.
  • Physically connect any required cables: If your deployment requires external QSFP56 fiber or DAC cables, connect them to the dual-port QSFP56 interfaces according to your network design. Ensure cable lengths match your data-center topology.
  • Power on and enter the host’ BIOS/UEFI: Verify that the PCIe slot and memory topology are recognized. If Secure Boot or device-locking features are enabled, adjust BIOS settings accordingly to allow the NIC to initialize during POST.
  • Install drivers and software: Boot into the operating system and install the NVIDIA Networking drivers and management tools. Follow the on-screen prompts or official NVIDIA Networking installation guides to complete the driver package, including any required firmware updates for the MCX623106AC-CDAT.
  • Configure networking resources: Use the NVIDIA management utilities to assign interfaces, enable SR-IOV or virtualization features if needed, and configure encryption policies. Create and attach virtual networks, VXLANs, or NVGRE overlays as required by your cloud or data-center architecture.
  • Validate security features: Confirm hardware-accelerated crypto is active, verify Secure Boot status, and run security checks to ensure all protections are functioning before moving to production.
  • Test performance and stability: Run benchmark tests to verify throughput, latency, and CPU offload efficiency. Monitor temperatures and ensure fans or cooling solutions maintain safe operating temperatures under load.
  • Document the configuration: Record firmware versions, driver levels, channel assignments, and security settings for future audits and maintenance.

Frequently asked questions

  • Q: What is the NVIDIA MCX623106AC-CDAT ConnectX-6 Dx EN Adapter Card?
    A: It is a 100 GbE dual-port, PCIe 4.0 x16 SmartNIC designed for hyper-converged and cloud environments, combining high-speed networking with hardware offloads and security features such as crypto acceleration and Secure Boot.
  • Q: How many ports and what speeds does it support?
    A: The card provides two QSFP56 ports capable of 100 GbE per port, delivering up to 200 GbE aggregate throughput in a dual-port configuration.
  • Q: What security features are included?
    A: It includes hardware-based cryptographic engines for encryption/decryption, Secure Boot support, and trusted hardware mechanisms to protect the integrity of the system and data in transit.
  • Q: What ecosystems and operating systems are supported?
    A: NVIDIA Networking software and drivers support a broad range of Linux distributions and Windows environments, with virtualization and cloud-native platforms such as Kubernetes and VMware often benefiting from accelerated networking features.
  • Q: Do I need special BIOS or firmware settings?
    A: Depending on the server and firmware version, you may need to enable PCIe slot settings, disable certain legacy options, or adjust Secure Boot policies. Follow the manufacturer’s guidelines and NVIDIA’s recommendations during installation.
  • Q: What deployment scenarios benefit most from this card?
    A: Data-center virtualization, AI and ML workloads, high-performance computing, multi-tenant cloud services, and security-conscious deployments that require robust crypto acceleration and fast, reliable 100 GbE connectivity.
  • Q: Is there a warranty or support plan?
    A: Warranty details vary by vendor and region; consult your supplier or NVIDIA’s official support resources for exact terms and service options.
