Description

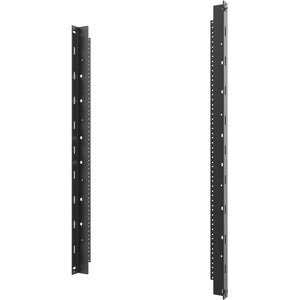

On-Q SWMRK26RU Mounting Rail Kit for Cabinet - Black - TAA Compliant
The On-Q SWMRK26RU Mounting Rail Kit is designed to maximize capacity and stability within 26RU Swing-Out Wall-Mount Cabinets. By adding two additional 19" rack rails, this kit enables secure, 4-point attachment for larger rack-mount equipment, making it an ideal solution for dense IT rooms, data centers, and professional AV installations. The rails are engineered for front-to-rear adjustability, allowing precise alignment with devices, cables, and airflow pathways. With rear mounting support and a clean black finish, the kit delivers both robust performance and a professional, low-profile appearance that blends seamlessly into most cabinet ecosystems. Built to meet rigorous procurement standards, this TAA-compliant mounting rail kit helps you maintain compliance while optimizing space and serviceability in demanding environments.
- Two additional 19" rack rails provide expanded mounting capacity within 26RU swing-out cabinets, enabling secure placement of larger servers, switches, and other rack-mount gear without crowding the front panel or interfering with access doors.
- 4-point attachment support ensures a sturdy, vibration-resistant mount for heavier equipment, reducing movement during operation and contributing to long-term reliability in busy network closets and server rooms.
- Front-to-rear adjustability lets you fine-tune the position of installed devices to align with cabling ports, cooling vents, and front-panel accessibility, promoting better airflow and easier maintenance.
- Rear mounting capability supports attaching equipment to the rear portion of the cabinet, improving weight distribution, cable management, and overall stability for multi-device deployments.
- Black finish and TAA compliant offer a sleek, professional look while meeting procurement requirements for government and enterprise projects, ensuring compatibility across a wide range of installations.
Technical Details of On-Q SWMRK26RU Mounting Rail Kit
- Cabinet compatibility: 26U Swing-Out Wall-Mount Cabinets
- Rail configuration: Includes two additional 19" rack mount rails
- Attachment method: Enables 4-point attachment for secure mounting of larger equipment
- Adjustability: Rails adjustable from front to rear to optimize device alignment
- Finish & compliance: Black finish; TAA compliant
How to Install On-Q SWMRK26RU Mounting Rail Kit
Installing the SWMRK26RU mounting rails is designed to be straightforward and compatible with standard 19" rack equipment and 26U swing-out cabinets. Before you begin, verify your cabinet model and ensure the rails align with the rear mounting points and front-to-rear adjustment range. Always work with the cabinet de-energized and remove any devices from the rails during installation to prevent damage or personal injury. Use appropriate, compatible fasteners that fit your cabinet’s mounting points and hardware grid.
- Prepare and align: Inspect the cabinet interior to identify the rear mounting points and the front-to-rear rails’ travel range. Ensure there is adequate space for empty 19" rack slots and that the swing-out mechanism moves freely without interference from adjacent components.
- Position the rails: Place the two rails at their intended front-to-rear positions, aligning them with the cabinet’s 19" mounting pattern. Use a level or simple alignment reference to ensure rails sit square and parallel to the rack face for proper device seating and cable management.
- Secure the rails: Attach the rails to the cabinet’s interior using compatible screws or hardware that fit the cabinet’s mounting points. Tighten securely to reduce flex or movement, but avoid overtightening which could strip threads or warp components.
- Verify travel and clearance: With the rails attached, slide or extend the swing-out mechanism (as appropriate for your model) to confirm there is no binding. Check that the rails’ front-to-rear adjustment provides the intended alignment range without sacrificing stability.
- Install equipment and finalize: With the rails in position, mount your 19" devices using the rails’ 4-point attachment points. Route cables along the rear area to maintain airflow and easy access to front panels, then close the cabinet and test the swing-out function and rack stability.
Frequently Asked Questions
-
Q: What does the SWMRK26RU Mounting Rail Kit add to a 26RU Swing-Out Cabinet?
A: It provides two additional 19" rack rails that support 4-point attachment for larger equipment, expanding mounting capacity while preserving front-access, airflow, and rear cable management. -
Q: Is this kit compatible with all 26RU swing-out cabinets?
A: The kit is designed specifically for 26U Swing-Out Wall-Mount Cabinets. For best results, verify model compatibility with your cabinet’s dimensions and mounting points before installation. -
Q: Does the kit require special tools or hardware?
A: Install using standard cabinet mounting hardware that fits your cabinet’s internal mounting points and 19" equipment. The description covers compatibility and mounting approach; specific fasteners depend on the cabinet configuration and existing hardware. -
Q: Is the kit suitable for government or enterprise procurement?
A: Yes. The product is TAA compliant, making it suitable for government, education, and enterprise procurement in accordance with applicable regulations. -
Q: Can I use this kit to improve airflow and cable management?
A: By enabling precise front-to-rear positioning and rear-mounted equipment, the kit helps maintain clear front-panel access and organized cabling, which can support better cooling efficiency and easier maintenance. -
Q: What is the color and finish of the mounting rails?
A: The mounting rails come in a black finish designed to blend with standard cabinet aesthetics and reduce visual intrusion in professional environments.
